2000 Yamaha BEAR TRACKER Handle Switch Lever OEM Parts Diagram

Submodel BEAR TRACKER 2WD - YFM250XMC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH LEVER

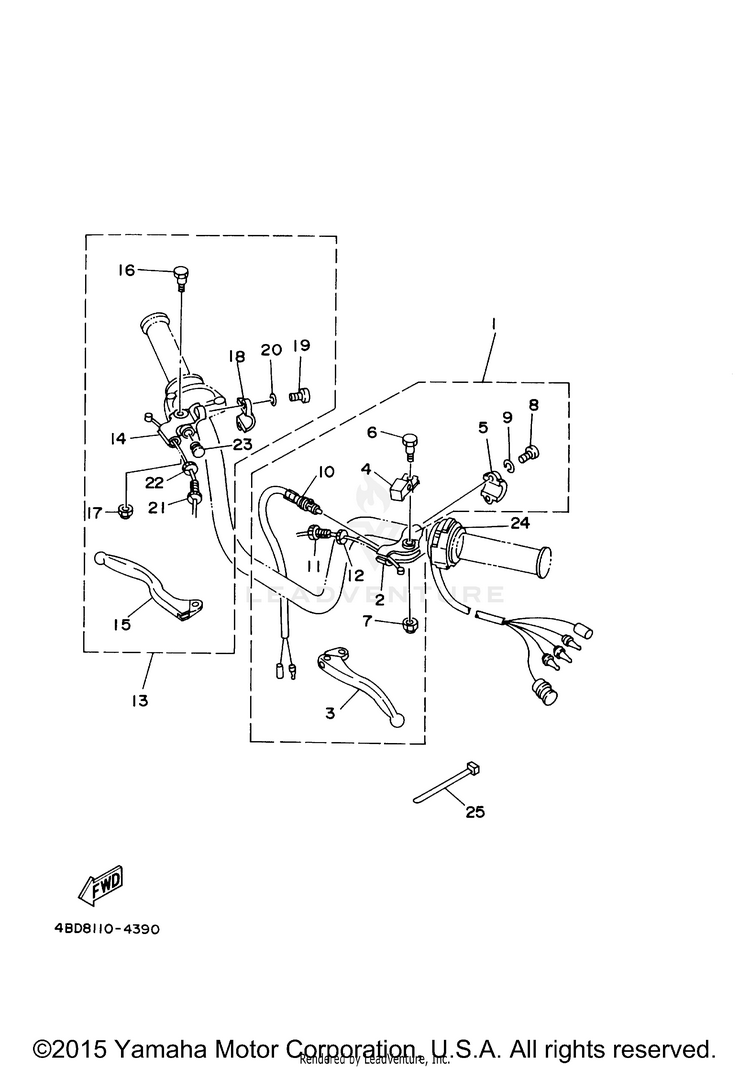

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14BD-82910-02-00

(replaces part #
4BD-82910-01-00)

LEVER HOLDER ASSY (L$99.99$77.99Not Shipping
21YW-82911-02-00

(replaces part #
1YW-82911-01-00)

HOLDER, LEVER 1$56.99$44.452 In-Stock
32HT-83912-01-00

(replaces part #
2HT-83912-00-00)

LEVER 1$43.99$34.313 In-Stock
41YW-83965-00-00LEVER, LOCK$30.99$24.171 In-Stock
52XJ-82913-00-00HOLDER, LEVER LOWER 1$24.99$20.49Usually ships in 7-10 business days
690109-06017-00

(replaces part #
90109-06576-00)

BOLT$11.49$8.963 In-Stock
795617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
898517-06020-00

(replaces part #
98507-06020-00)

SCREW,PAN HEAD$2.35$2.0210+ In-Stock
992907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
101YW-83980-00-00

(replaces part #
4BD-83980-00-00)

FRONT STOP SWITCH ASSY$76.99$60.052 In-Stock
1190123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
1290179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
134BD-82920-01-00LEVER HOLDER ASSY (RIGHT)$99.99$77.99Not Shipping
143JN-82921-00-00HOLDER, LEVER 2$95.99$74.87Usually ships in 7-10 business days
1559V-83922-00-00LEVER 2$43.99$34.311 In-Stock
1690109-06799-00BOLT$5.49$4.288 In-Stock
1795617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
182XJ-82913-00-00HOLDER, LEVER LOWER 1$24.99$20.49Usually ships in 7-10 business days
1997017-06025-00

(replaces part #
97027-06025-00)

BOLT$4.55$3.9110+ In-Stock
2092907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
2190123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
2290179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
2390338-12192-00PLUG$9.49$7.4010+ In-Stock
244BD-83973-19-00

(replaces part #
4BD-83973-10-00)

SWITCH, HANDLE 3$167.99$131.03Not Shipping
25437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
