2000 Yamaha BEAR TRACKER Generator OEM Parts Diagram

Submodel BEAR TRACKER 2WD - YFM250XMC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

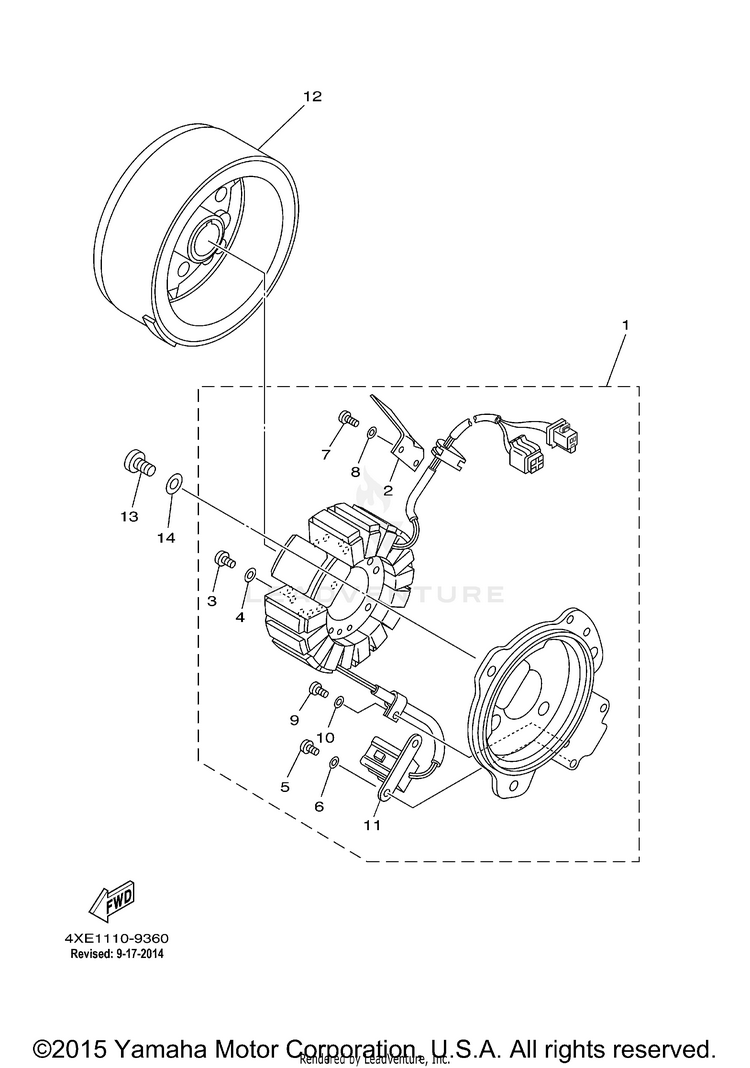

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14BD-85510-20-00STATOR ASSY$756.99$633.52Usually ships in 7-10 business days
221V-85525-00-00

(replaces part #
21V-85525-01-00)

COVER$9.49$8.54Usually ships in 7-10 business days
398580-05525-00

(replaces part #
98501-05025-00)

SCREW, PAN HEAD$2.00$1.80Usually ships in 7-10 business days
492990-05100-00

(replaces part #
92901-05100-00)

WASHER, SPRING-$0.8310+ In-Stock
597885-05010-00

(replaces part #
98501-05010-00)

SCREW, PAN HEAD$3.15$2.715 In-Stock
692990-05100-00

(replaces part #
92901-05100-00)

WASHER, SPRING-$0.8310+ In-Stock
798580-04008-00

(replaces part #
98501-04008-00)

SCREW, PAN HEAD$6.49$5.0610+ In-Stock
892990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
998517-04006-00

(replaces part #
98501-04006-00)

SCREW, PAN HEAD$4.60$3.9610+ In-Stock
1092990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
114BD-85580-00-00COIL, PULSER$177.99$138.83Usually ships in 7-10 business days
124BD-85550-20-00ROTOR ASSY$600.99$468.77Usually ships in 7-10 business days
1398507-06016-00SCREW,PAN HEAD$3.48$2.9910+ In-Stock
1492907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
