2000 Yamaha BEAR TRACKER Rear Fender OEM Parts Diagram

Submodel BEAR TRACKER 2WD - YFM250XMC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR FENDER

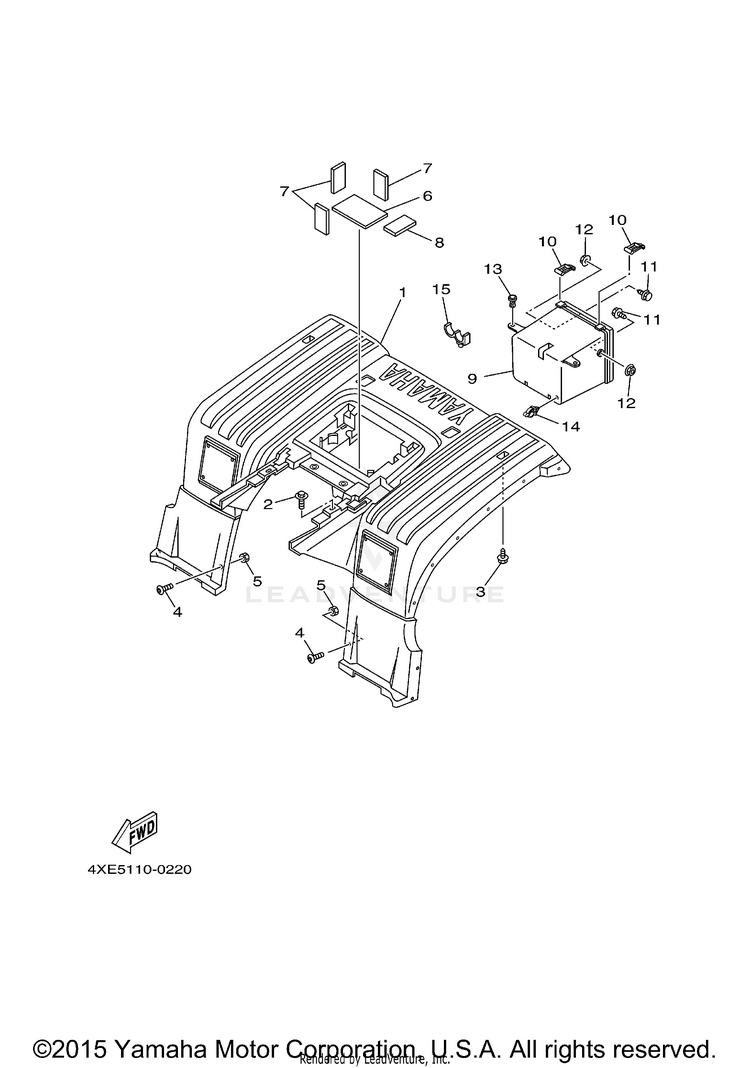

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-4XE-F1600-10-00REAR FENDER ASSY | UR PDG$284.99$237.82Not Shipping
-4XE-F1600-20-00REAR FENDER ASSY | UR DNYS1$279.99$232.70Not Shipping
14XE-F1600-00-00REAR FENDER ASSY | UR RTR$269.99$225.02Not Shipping
290119-06118-00

(replaces part #
90119-06227-00)

BOLT, WITH WASHER$9.49$7.4010+ In-Stock
390119-06226-00

(replaces part #
90119-06060-00)

BOLT, WITH WASHER$2.80$2.4110+ In-Stock
490111-06814-00

(replaces part #
90110-06836-00)

BOLT, HEX. SOCKET BUTTON$2.00$1.9010+ In-Stock
595617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
64BD-21639-00-00DAMPER 2$17.49$14.34Usually ships in 7-10 business days
74XE-F4145-00-00DAMPER, SIDE COVER$4.40$3.78Not Shipping
84XE-F1649-00-00DAMPER$2.50$2.25Usually ships in 7-10 business days
94XE-F160A-01-00

(replaces part #
4XE-F160A-00-00)

BOX COMP.$61.99$48.35Usually ships in 7-10 business days
1059V-21646-00-00BAND$24.99$19.493 In-Stock
1190119-06226-00

(replaces part #
90119-06060-00)

BOLT, WITH WASHER$2.80$2.4110+ In-Stock
1295707-06600-00NUT, FLANGE$8.49$7.64Usually ships in 7-10 business days
1390269-08813-00RIVET$0.90$0.7710+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$5.9910+ In-Stock
1490464-12830-00

(replaces part #
90464-10833-00)

CLAMP$1.60$1.3810+ In-Stock
1590464-12830-00CLAMP | (YMUS)$1.60$1.3810+ In-Stock
