2002 Yamaha BLASTER 200 Cylinder Head OEM Parts Diagram

Submodel BLASTER - YFS200P - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

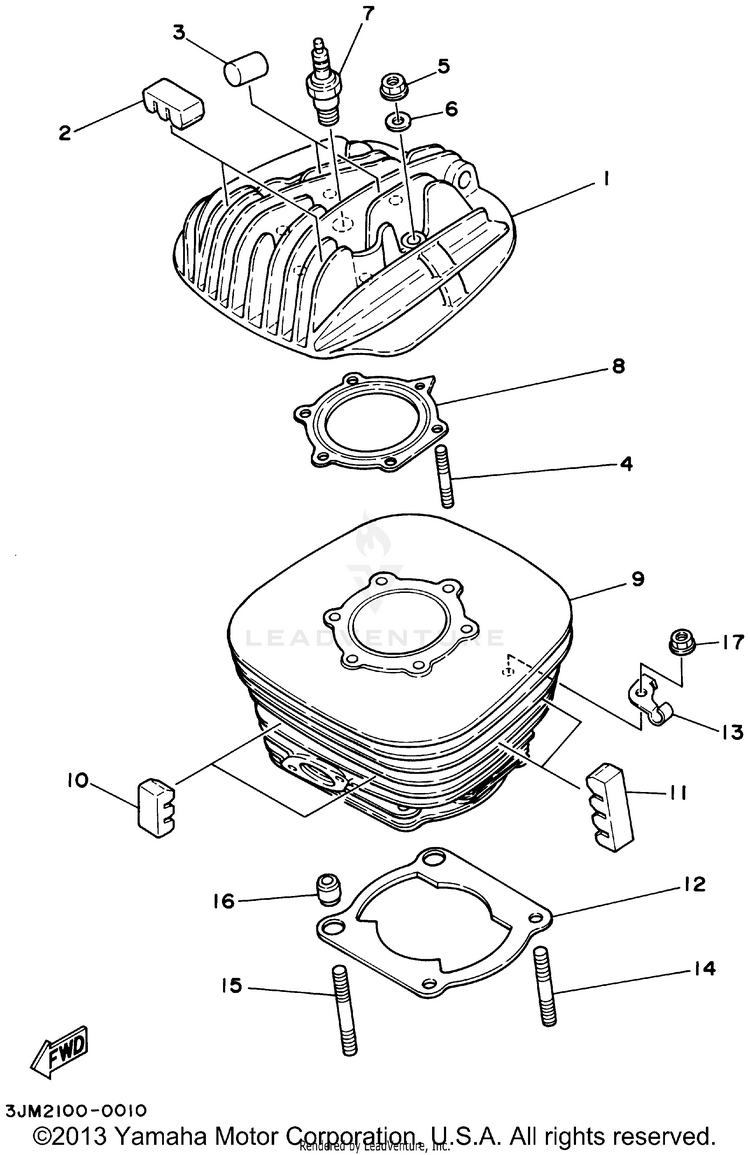

CYLINDER HEAD

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12XJ-11111-00-00HEAD, CYLINDER 1 | (U49)$295.99$230.87Usually ships in 7-10 business days
23R9-11162-00-00ABSORBER 2 | (U49)$7.99$6.23Not Shipping
3576-11127-00-00

(replaces part #
1K6-11128-00-00)

ABSORBER 3 | (U49)$6.49$5.06Not Shipping
490116-08394-00BOLT, STUD | (U49)$5.49$4.2810+ In-Stock
595337-08600-00

(replaces part #
95317-08600-00)

NUT(6TA) | (U49)$9.49$7.4010+ In-Stock
690201-08649-00WASHER, PLATE | (U49)$10.49$8.1810+ In-Stock
7BR8-ES000-00-00

(replaces part #
NGK-BR8ES-00-00)

BR8ES NGK SCREW TOP | (U49)$4.45$4.2410+ In-Stock
82XJ-11181-00-00GASKET, CYLINDER HEAD 1 | (U49)$33.99$26.5110+ In-Stock
92XJ-11311-02-00

(replaces part #
2XJ-11311-01-00)

CYLINDER 1 | (U49)$569.99$463.11Not Shipping
103R9-11162-00-00ABSORBER 2 | (U49)$7.99$6.23Not Shipping
113R6-11162-00-00ABSORBER 2 | (U49)$22.99$17.9310+ In-Stock
123JM-11351-03-00

(replaces part #
3JM-11351-01-00)

GASKET, CYLINDER | (U49)$10.99$8.57
1310V-1131E-00-00HOLDER 1 | (U49)$25.99$20.272 In-Stock
1490116-08318-00BOLT, STUD | (U49)$8.49$6.6210+ In-Stock
1590116-08388-00BOLT, STUD | (U49)$10.49$8.1810+ In-Stock
1699530-10114-00PIN, DOWEL | (U49)$2.65$2.4810+ In-Stock
1790179-08491-00

(replaces part #
90179-08299-00)

NUT | (U49)$2.80$2.4110+ In-Stock
