2002 Yamaha BLASTER 200 Exhaust OEM Parts Diagram

Submodel BLASTER - YFS200P - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

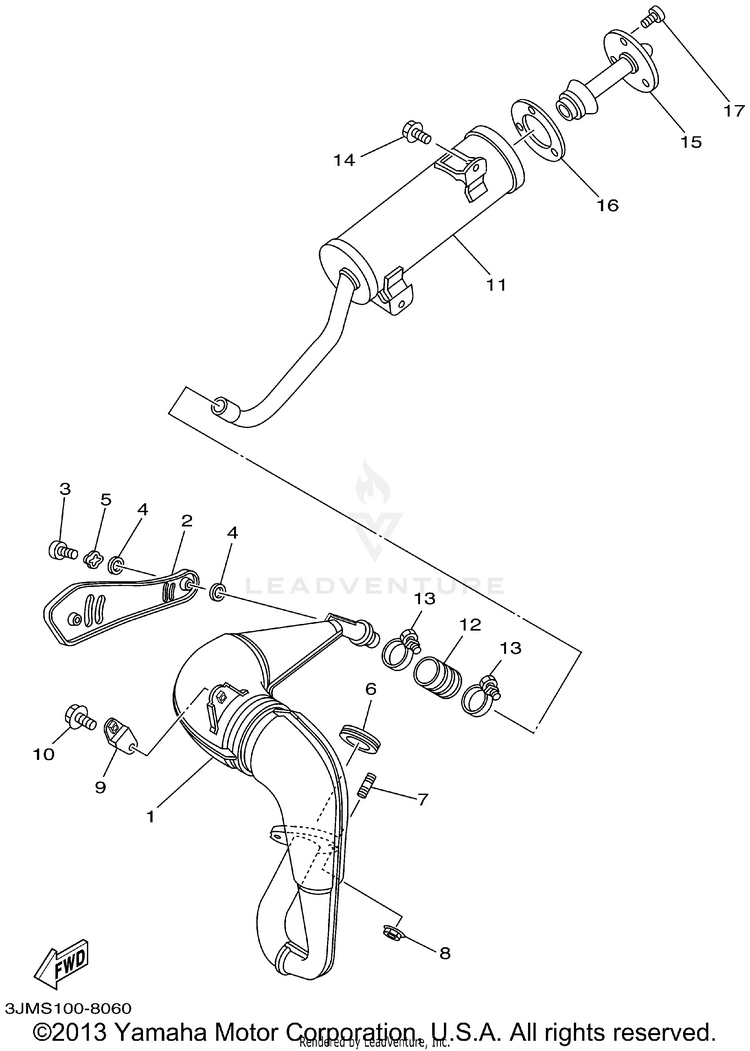

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12XJ-14610-00-00EXHAUST PIPE ASSY 1 | (U49)$389.04$303.45Usually ships in 7-10 business days
22XJ-14718-00-00PROTECTOR, MUFFLER 1 | (U49)$38.99$31.97Not Shipping
398907-06010-00SCREW, BIND | (U49)$1.80$1.558 In-Stock
44BD-14766-00-00WASHER, PROTECTOR | (U49)$5.99$4.6710+ In-Stock
590206-06090-00WASHER, WAVE | (U49)$9.49$7.4010+ In-Stock
63PA-14613-10-00GASKET, EXHAUST PIPE | (U49)$16.49$12.8610+ In-Stock
790116-08042-00BOLT, STUD | (U49)$10.49$8.187 In-Stock
890179-08270-00NUT | (U49)$9.49$7.4010+ In-Stock
9565-14771-01-00

(replaces part #
565-14771-00-00)

STAY, MUFFLER 1 | (U49)$19.99$15.5910+ In-Stock
1095817-06012-00BOLT, FLANGE | (U49)$1.95$1.7710+ In-Stock
112XJ-14753-00-00SILENCER, EXHAUST | (U49)$279.99$222.53Usually ships in 7-10 business days
121W2-14714-00-00GASKET, MUFFLER | (U49)$36.99$28.854 In-Stock
1390460-37130-00

(replaces part #
90460-37026-00)

CLAMP, HOSE | (U49)$7.99$6.23Not Shipping
1495817-08016-00BOLT,FLANGE (JN5) | (U49)$5.49$4.2810+ In-Stock
152XJ-14752-00-00PIPE, OUTLET | (U49)$43.99$36.07Not Shipping
162XJ-14755-10-00GASKET, SILENCER | (U49)$14.49$11.30Not Shipping
1798907-06010-00SCREW, BIND | (U49)$1.80$1.558 In-Stock
