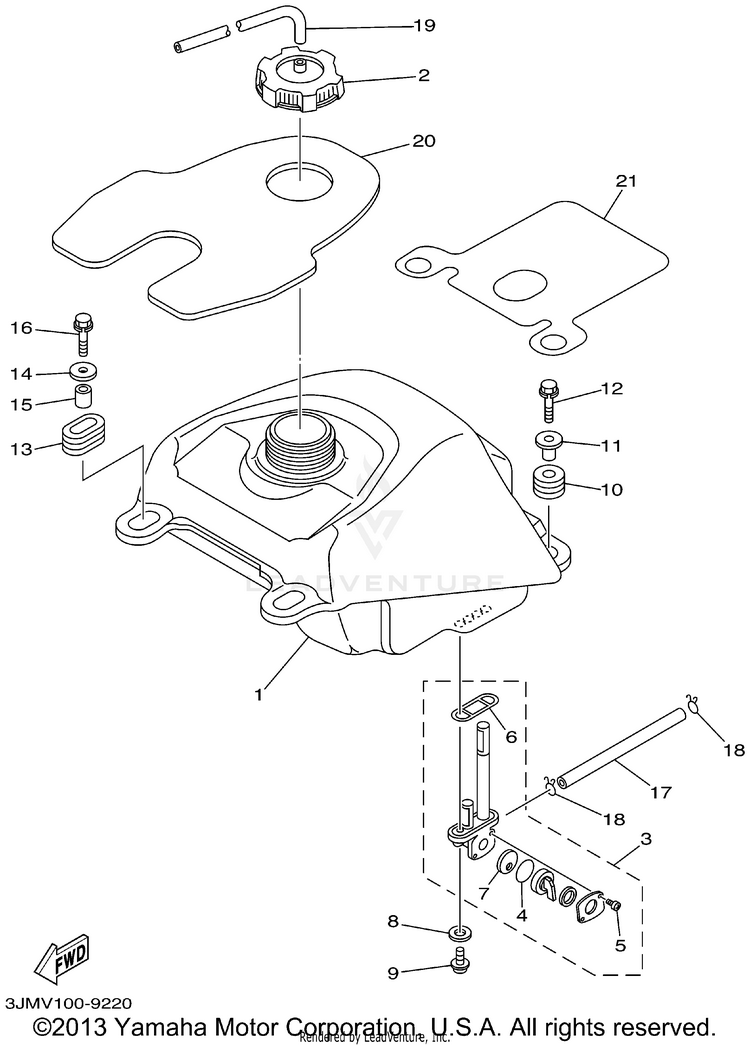

2002 Yamaha BLASTER 200 Fuel Tank OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	2XJ-24110-00-00	FUEL TANK COMP. \| (U49)	$161.99	$126.35	Not Shipping
2	5KM-24610-00-00	CAP ASSY \| (U49)	$66.99	$52.25	10+ In-Stock
3	55W-24500-10-00 (replaces part # 55W-24500-01-00)	FUEL COCK ASSY 1 \| (U49)	$47.99	$37.43	10+ In-Stock
4	3AJ-24534-01-00 (replaces part # 3AJ-24534-00-00)	SEAL, COCK \| (U49)	$11.99	$9.35	10+ In-Stock
5	98580-03008-00 (replaces part # 97801-03008-00)	SCREW, PAN HEAD \| (U49)	$3.85	$3.31	10+ In-Stock
6	4X8-24512-00-00	O-RING \| (U49)	$9.49	$7.40	10+ In-Stock
7	3AC-24523-00-00 (replaces part # 3AJ-24523-00-00)	VALVE PACKING \| (U49)	$14.49	$11.30	10+ In-Stock
8	90202-05187-00 (replaces part # 90202-05193-00)	WASHER, PLATE \| (U49)	$1.70	$1.46	10+ In-Stock
9	90149-06011-00	SCREW \| (U49)	$2.05	$1.76	10+ In-Stock
10	90480-18290-00	GROMMET \| (U49)	$9.49	$8.05	10+ In-Stock
11	90387-066H4-00	COLLAR \| (U49)	$9.49	$7.40	10+ In-Stock
12	90119-06073-00	BOLT, WITH WASHER \| (U49)	$9.49	$7.40	10+ In-Stock
13	90480-01400-00	GROMMET \| (U49)	$14.49	$11.30	10+ In-Stock
14	90201-06090-00 (replaces part # 90201-060L5-00)	WASHER, PLATE \| (U49)	$6.49	$5.06	10+ In-Stock
15	90387-07598-00	COLLAR \| (U49)	$6.49	$5.06	10+ In-Stock
16	90119-06073-00	BOLT, WITH WASHER \| (U49)	$9.49	$7.40	10+ In-Stock
17	90445-10752-00 (replaces part # 90445-100E9-00)	HOSE (L110) \| (U49)	$5.49	$4.28	10+ In-Stock
18	90467-090A2-00 (replaces part # 90467-09006-00)	CLIP \| (U49)	$4.75	$4.08	10+ In-Stock
19	90445-083J5-00 (replaces part # 90445-084J1-00)	HOSE (L460) \| (U49)	$11.49	$8.96	10+ In-Stock
20	2XJ-2414H-01-00	DAMPER, PLATE 1 \| (U49)	$34.99	$28.69	Not Shipping
21	3JM-2414J-00-00	DAMPER, PLATE 2 \| (U49)	$32.99	$27.05	Usually ships in 7-10 business days
