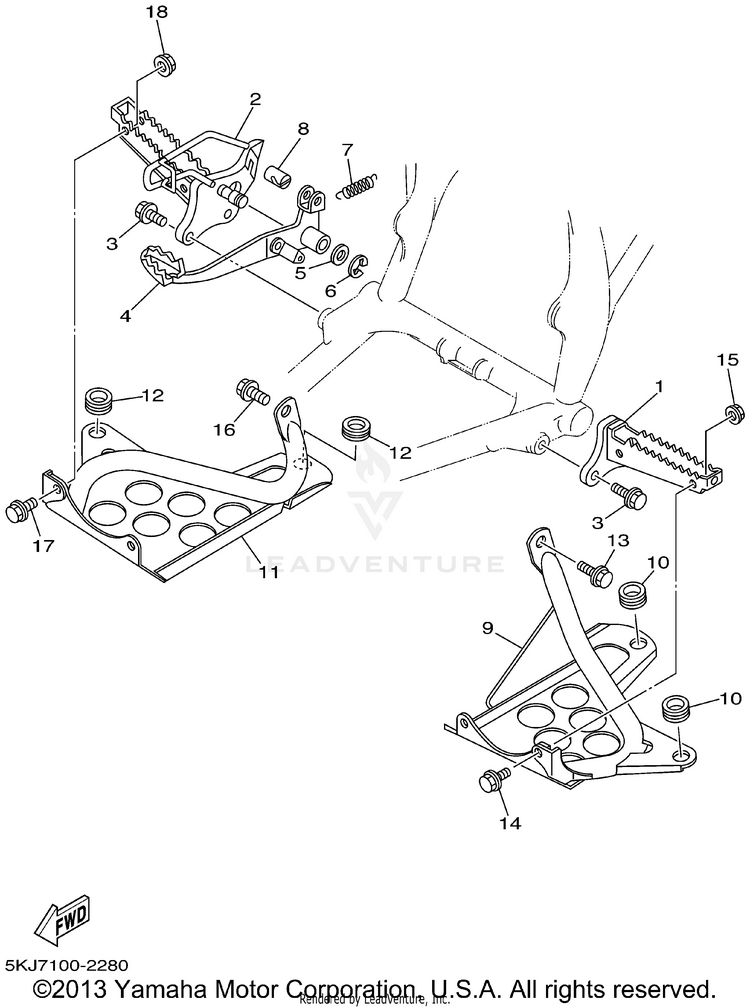

2002 Yamaha BLASTER 200 Stand Footrest OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5KJ-27411-00-00	FOOTREST 1 \| (U49)	$68.99	$53.81	Not Shipping
2	5KJ-27421-00-00	FOOTREST 2 \| (U49)	$66.99	$52.25	Usually ships in 7-10 business days
3	95817-10025-00	BOLT, FLANGE \| (U49)	$9.49	$7.40	10+ In-Stock
4	3JM-27211-20-00	PEDAL, BRAKE \| (U49)	$42.99	$35.25	Usually ships in 7-10 business days
5	90201-15797-00	WASHER, PLATE \| (U49)	$10.49	$8.18	10+ In-Stock
6	93430-12008-00	CIRCLIP, E-TYPE \| (U49)	$9.49	$7.40	10+ In-Stock
7	90506-20193-00	SPRING, TENSION \| (U49)	$16.49	$12.86	2 In-Stock
8	90249-14202-00	PIN \| (U49)	$20.99	$16.37	2 In-Stock
9	3JM-27445-00-00	PLATE 1 \| (U49)	$173.99	$135.71	Not Shipping
10	90480-18411-00	GROMMET \| (U49)	$12.49	$9.74	10+ In-Stock
11	3JM-27446-00-00	PLATE 2 \| (U49)	$175.99	$137.27	Not Shipping
12	90480-18411-00	GROMMET \| (U49)	$12.49	$9.74	10+ In-Stock
13	95817-08016-00 (replaces part # 95827-08016-00)	BOLT,FLANGE (JN5) \| (U49)	$5.49	$4.28	10+ In-Stock
14	92017-08016-00	BOLT, BUTTON HEAD \| (U49)	$6.49	$5.06	10+ In-Stock
15	95707-08500-00	NUT,FLANGE (JN5) \| (U49)	$1.95	$1.68	10+ In-Stock
16	95817-08016-00 (replaces part # 95827-08016-00)	BOLT,FLANGE (JN5) \| (U49)	$5.49	$4.28	10+ In-Stock
17	92017-08016-00	BOLT, BUTTON HEAD \| (U49)	$6.49	$5.06	10+ In-Stock
18	95707-08500-00	NUT,FLANGE (JN5) \| (U49)	$1.95	$1.68	10+ In-Stock
