2002 Yamaha V-Max Frame OEM Parts Diagram

Submodel V-MAX - VMX1200PC - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

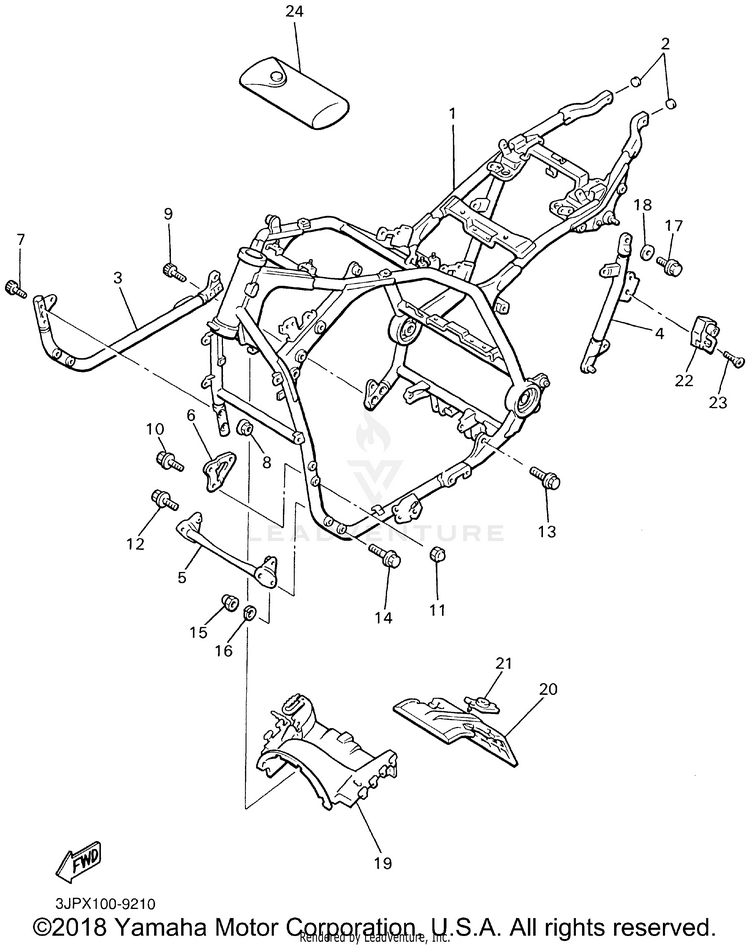

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12EN-21110-02-33

(replaces part #
2EN-21110-01-33)

FRAME COMP. | YB$1,623.99$1,345.28Usually ships in 7-10 business days
23YJ-24481-00-00PLUG$8.49$7.64Usually ships in 7-10 business days
31FK-21140-00-33DOWN TUBE COMP. | YB$336.99$262.85Usually ships in 7-10 business days
43UF-21105-00-33BACK STAY SUB COMP. 1 | YB$307.99$240.23Usually ships in 7-10 business days
51FK-2141V-10-00CROSS BAR COMPLETE$84.99$66.29Usually ships in 7-10 business days
61FK-21315-00-00STAY, ENGINE 2$19.99$16.39Usually ships in 7-10 business days
791317-10030-00BOLT$10.49$8.60Usually ships in 7-10 business days
895704-10500-00NUT, WITH WASHER-$2.285 In-Stock
991317-10020-00BOLT, HEX. SOCKET HEAD$9.49$8.54Usually ships in 7-10 business days
1095027-08016-00BOLT, FLANGE$9.49$8.546 In-Stock
1190176-10033-00NUT, CROWN$10.49$8.60Usually ships in 7-10 business days
1295817-10065-00BOLT, FLANGE$6.49$5.84Usually ships in 7-10 business days
1390105-12252-00BOLT, WASHER BASED$12.49$10.24Usually ships in 7-10 business days
1495817-08060-00BOLT, FLANGE$4.80$4.134 In-Stock
1590176-08040-00NUT, CROWN$4.85$4.36Usually ships in 7-10 business days
1692907-08100-00WASHER, SPRING$9.49$7.4010+ In-Stock
1795817-080M0-00BOLT, FLANGE$0.00$0.00Not Shipping
1890201-08326-00WASHER, PLATE$9.49$7.4010+ In-Stock
191FK-2117F-01-00

(replaces part #
1FK-2117F-00-00)

COVER$98.99$77.21Usually ships in 7-10 business days
201FK-2117M-00-00COVER 2$59.99$46.79Usually ships in 7-10 business days
211FK-2117N-01-00COVER 3$36.99$30.33Usually ships in 7-10 business days
2226H-21308-01-00

(replaces part #
26H-21308-00-00)

HELMET HANGER ASSY$89.99$70.19Usually ships in 7-10 business days
2390149-06154-00SCREW$10.49$8.60Usually ships in 7-10 business days
2426H-W2810-00-00TOOL KIT$255.99$199.67Usually ships in 7-10 business days
