2002 Yamaha V-Max Side Cover OEM Parts Diagram

Submodel V-MAX - VMX1200PC - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

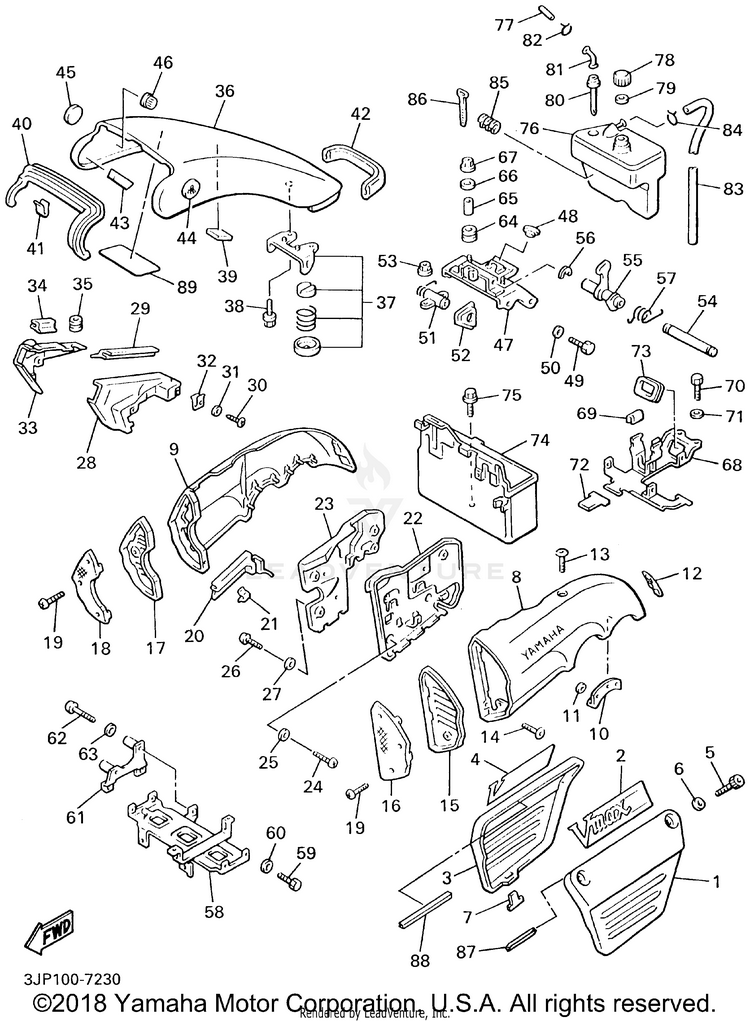

SIDE COVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13JP-21711-00-00COVER, SIDE 1$157.99$123.23Usually ships in 7-10 business days
21UT-21783-00-00EMBLEM 3$68.99$53.81Usually ships in 7-10 business days
33JP-21721-00-00COVER, SIDE 2$144.99$113.09Usually ships in 7-10 business days
41UT-21784-00-00EMBLEM 4$84.99$66.29Usually ships in 7-10 business days
590110-06102-00BOLT, HEXAGON SOCKET HEAD$4.35$3.7410+ In-Stock
692907-06200-00WASHER$9.49$7.4010+ In-Stock
72N4-21717-00-00DAMPER$8.49$6.627 In-Stock
83JP-21731-00-00COVER, SIDE 3$549.99$445.71Usually ships in 7-10 business days
93JP-21741-00-00COVER, SIDE 4$542.99$439.25Usually ships in 7-10 business days
101FK-21778-00-00DAMPER, LOCATING 1$9.49$8.54Usually ships in 7-10 business days
1190183-06008-00NUT, SPRING$9.49$8.54Usually ships in 7-10 business days
121FK-21747-00-00DAMPER$32.99$27.05Usually ships in 7-10 business days
1392014-06012-00BOLT, BUTTON HEAD$3.55$3.055 In-Stock
1492014-06025-00BOLT, BUTTON HEAD$10.49$8.60Usually ships in 7-10 business days
151FK-2172G-00-00PANEL 3$8.49$7.64Usually ships in 7-10 business days
161FK-2837N-00-00GRILL, AIR INTAKE 1$30.99$25.41Usually ships in 7-10 business days
171FK-2172H-00-00PANEL 4$9.49$8.54Usually ships in 7-10 business days
181FK-2837R-00-00GRILL, AIR INTAKE 2$36.99$30.33Usually ships in 7-10 business days
1992017-05012-00BOLT, BUTTON HEAD$3.85$3.314 In-Stock
201FK-2172W-00-00COVER$32.99$27.05Usually ships in 7-10 business days
2190468-03178-00CLIP$3.00$2.70Usually ships in 7-10 business days
221FK-2172A-01-00PANEL 1$44.99$36.89Usually ships in 7-10 business days
231FK-2172F-00-00PANEL 2$42.99$35.25Usually ships in 7-10 business days
2498517-06020-00SCREW,PAN HEAD$2.35$2.0210+ In-Stock
2592907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
2698507-06016-00SCREW,PAN HEAD$3.48$2.9910+ In-Stock
2792907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
281FK-2171E-00-00COVER, SIDE 5$62.99$49.13Usually ships in 7-10 business days
291FK-2171T-00-00MOLE, SIDE COVER 5$8.49$7.64Usually ships in 7-10 business days
3097707-40612-00SCREW, TRUSS$6.99$6.29Usually ships in 7-10 business days
3192907-04200-00WASHER$1.80$1.556 In-Stock
3290183-04027-00NUT, SPRING$2.60$2.34Usually ships in 7-10 business days
331FK-2171X-00-00COVER, SIDE 6$69.99$54.59Usually ships in 7-10 business days
341FK-2171T-00-00MOLE, SIDE COVER 5$8.49$7.64Usually ships in 7-10 business days
3590480-12296-00GROMMET$8.49$7.643 In-Stock
363LR-2171A-10-00COVER, TOP$760.99$593.57Usually ships in 7-10 business days
371FK-2175J-00-00LEVER LOCK COMP.$113.99$88.91Usually ships in 7-10 business days
3895817-06010-00BOLT,FLANGE$5.49$4.2810+ In-Stock
391FK-21746-00-00DAMPER$7.49$6.74Usually ships in 7-10 business days
401FK-28345-00-00MOLE 1$69.99$54.59Usually ships in 7-10 business days
411FK-2171H-00-00GUIDE$8.49$6.6210+ In-Stock
421FK-2171L-00-00MOLE, SIDE COVER 1$25.99$21.31Usually ships in 7-10 business days
431FK-21732-00-00SEAL 1$4.99$4.49Usually ships in 7-10 business days
441FK-21781-00-00EMBLEM 1$58.99$46.01Usually ships in 7-10 business days
451FK-21782-00-00EMBLEM 2$55.99$43.67Usually ships in 7-10 business days
461FK-21779-00-00DAMPER, LOCATING 2$16.49$13.52Usually ships in 7-10 business days
471FK-2172M-00-00BRACKET 3$97.99$76.43Usually ships in 7-10 business days
4818A-24724-00-00DAMPER, SEAT$9.49$8.54Usually ships in 7-10 business days
4997017-06012-00BOLT$4.05$3.4810+ In-Stock
5092907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
511FK-21708-00-00LOCK ASSY 2$138.99$108.41Usually ships in 7-10 business days
521FK-24796-00-00COVER$16.99$13.93Usually ships in 7-10 business days
5395707-06500-00NUT, FLANGE$1.00$0.9910+ In-Stock
541FK-2176U-00-00SHAFT, LOCK$6.49$5.84Usually ships in 7-10 business days
551FK-2175K-00-00LEVER, LOCK$27.99$22.95Usually ships in 7-10 business days
5699080-05600-00

(replaces part #
93430-05027-00)

CIRCLIP$9.49$7.402 In-Stock
571FK-2176V-00-00SPRING, LOCK 2$4.55$4.10Usually ships in 7-10 business days
581FK-21243-01-00PLATE, BRIDGE$73.99$57.71Usually ships in 7-10 business days
5997017-06012-00BOLT$4.05$3.4810+ In-Stock
6092907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
611FK-2172K-01-00BRACKET 1$31.99$26.23Usually ships in 7-10 business days
6298507-06040-00SCREW, PAN HEAD$3.22$2.779 In-Stock
6392907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
6490480-12475-00GROMMET$9.49$7.4010+ In-Stock
6590387-06113-00

(replaces part #
90387-060A7-00)

COLLAR$12.49$9.747 In-Stock
6690201-06020-00

(replaces part #
90201-065F3-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
6795707-06500-00NUT, FLANGE$1.00$0.9910+ In-Stock
683UF-21359-00-00BRACKET, COIL$51.99$40.55Usually ships in 7-10 business days
691FK-2171L-00-00MOLE, SIDE COVER 1$25.99$21.31Usually ships in 7-10 business days
7097017-06012-00BOLT$4.05$3.4810+ In-Stock
7192907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
722N4-21717-00-00DAMPER$8.49$6.627 In-Stock
73214-84153-60-00GROMMET, WIRE HARNESS$8.49$6.623 In-Stock
741FK-2177G-00-00BOX, BATTERY$127.99$99.83Usually ships in 7-10 business days
7597017-06016-00BOLT$9.49$7.405 In-Stock
761FK-21871-00-00TANK, RECOVERY$96.99$75.65Usually ships in 7-10 business days
771FK-21816-00-00PIPE 1$4.05$3.64Usually ships in 7-10 business days
7826H-21875-00-00CAP$37.99$29.633 In-Stock
7926H-21874-00-00GASKET$8.49$6.626 In-Stock
8026H-21816-01-00PIPE 1$19.99$16.39Usually ships in 7-10 business days
8126H-21828-00-00ELBOW$30.99$24.172 In-Stock
8290467-11M08-00CLIP$2.80$2.41
831FK-21826-00-00PIPE, BREATHER$11.99$9.96Usually ships in 7-10 business days
8490467-090A2-00

(replaces part #
90467-09006-00)

CLIP$4.75$4.0810+ In-Stock
851FK-2177M-00-00DAMPER, LOCATING 3$14.99$12.29Usually ships in 7-10 business days
865Y9-12491-00-00CLAMP 1$7.49$6.744 In-Stock
874KB-21268-00-00SEAL$5.49$4.94Usually ships in 7-10 business days
883TU-28344-00-00TAPE$10.49$8.60Usually ships in 7-10 business days
893JP-2179R-D0-00PLATE, EPA 2 (CALIFORNIA) | (5GKA)$32.99$27.05Usually ships in 7-10 business days
893JP-2179V-D0-00PLATE, EPA 1 (NON CALIFORNIA) | (5GK9)$5.99$5.39Usually ships in 7-10 business days
