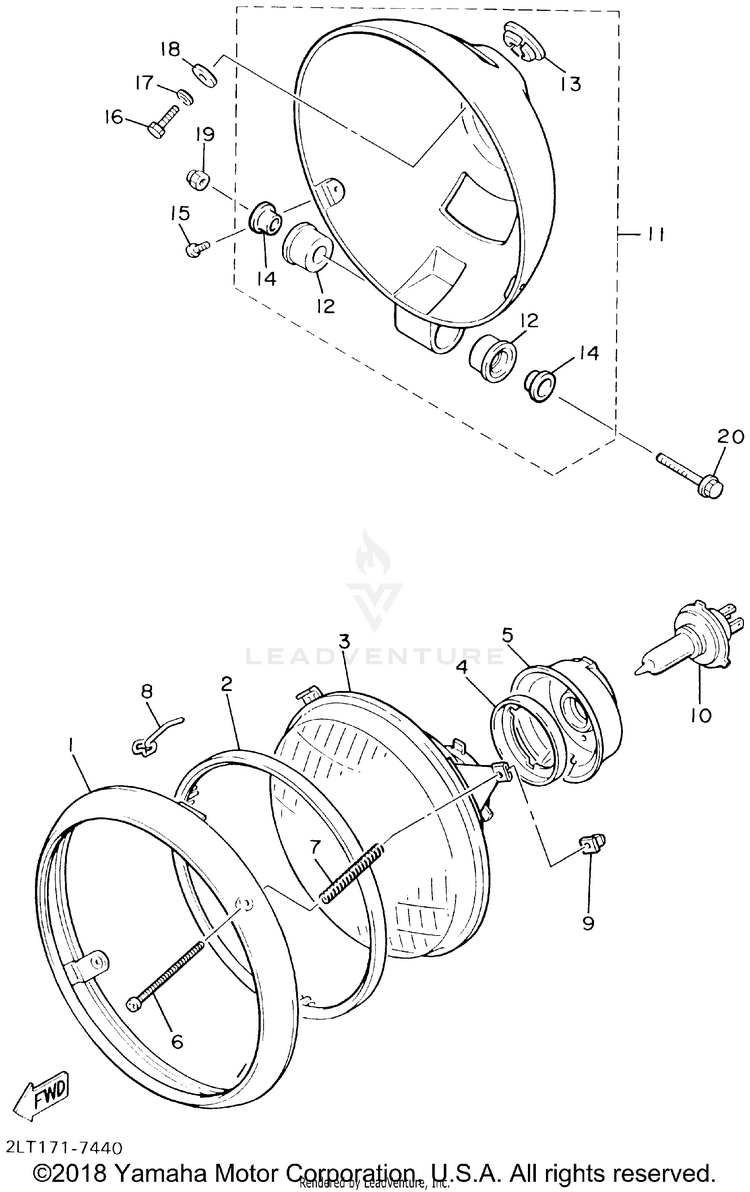

2002 Yamaha V-Max Headlight OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	42X-84315-01-00	RIM, HEADLIGHT	$132.99	$103.73	Usually ships in 7-10 business days
2	5Y3-84395-00-00	RING, RETAINING	$55.99	$43.67	Usually ships in 7-10 business days
3	42X-84321-A0-00	LENS ASSY	$131.99	$102.95	Usually ships in 7-10 business days
4	2F9-84375-00-00	SETTING PLATE, BULB	$14.99	$12.29	Usually ships in 7-10 business days
5	2F9-84397-01-00	COVER, SOCKET	$33.99	$27.87	Usually ships in 7-10 business days
6	90157-04001-00	SCREW, ADJUSTING	$9.49	$7.40	4 In-Stock
7	447-84332-00-00	SPRING, SCREW	$0.00	$0.00	Not Shipping
8	42X-84124-60-00	SPRING, SET	$7.49	$6.74	Usually ships in 7-10 business days
9	198-84334-60-00	NUT, ADJUSTING	$8.49	$6.62	5 In-Stock
10	8V0-84314-10-00 (replaces part # 5V2-84314-00-XX)	BULB, HEADLIGHT (12V-60/55W) \| (H4)HALOGEN	$75.99	$60.93	Usually ships in 7-10 business days
11	42X-94330-00-00	BODY ASSY	$0.00	$0.00	Not Shipping
12	42X-84345-00-00	DAMPER, HEADLIGHT	$5.99	$5.39	Usually ships in 7-10 business days
13	42X-84366-00-00	DAMPER, HEADLIGHT 1	$22.99	$18.85	Usually ships in 7-10 business days
14	1FK-84338-00-00	COLLAR, BODY FITTING	$3.65	$3.28	Usually ships in 7-10 business days
15	98507-05014-00	SCREW, PAN HEAD	$9.49	$7.40	10+ In-Stock
16	97017-06016-00	BOLT	$9.49	$7.40	5 In-Stock
17	92907-06600-00	WASHER, PLATE	$1.00	$0.99	10+ In-Stock
18	90201-06086-00 (replaces part # 90201-060A3-00)	WASHER, PLATE	$8.49	$7.01	10+ In-Stock
19	90176-06041-00	NUT, CROWN	$3.25	$2.80	8 In-Stock
20	90105-06375-00	BOLT, FLANGE	$8.99	$8.09	Usually ships in 7-10 business days
