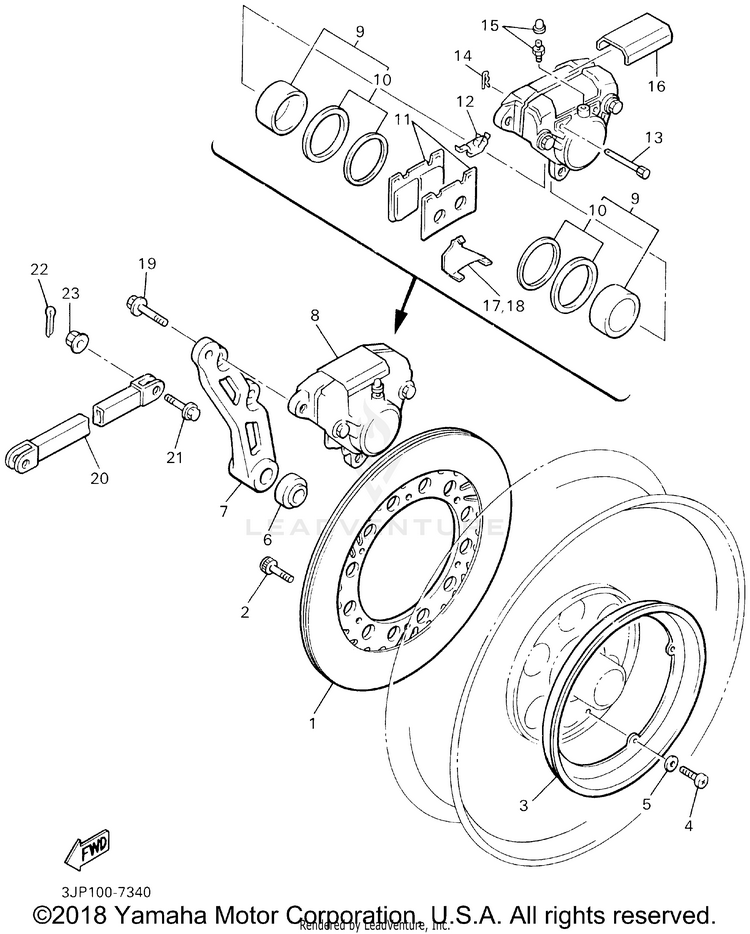

2002 Yamaha V-Max Rear Brake OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	3JP-2582U-00-00	DISK, BRAKE (RIGHT)	$480.99	$375.17	Usually ships in 7-10 business days
2	90111-08057-00 (replaces part # 90109-083G4-00)	BOLT	$2.50	$2.15	10+ In-Stock
3	1FK-25327-00-00	COVER, PLATE	$26.99	$22.13	Usually ships in 7-10 business days
4	98517-05020-00 (replaces part # 98507-05020-00)	SCREW, PAN HEAD	$1.75	$1.50	3 In-Stock
5	92907-05600-00	WASHER, PLATE	$1.00	$0.86	10+ In-Stock
6	90387-200J2-00	COLLAR	$34.99	$28.69	Usually ships in 7-10 business days
7	1FK-25819-00-00	BRACKET, CALIPER	$147.99	$115.43	Usually ships in 7-10 business days
8	4BH-2580W-01-00 (replaces part # 4BH-2580W-00-00)	CALIPER ASSY, REAR 2	$480.99	$375.17	Usually ships in 7-10 business days
9	31A-W0057-00-00	PISTON ASSY, CALIPER	$153.99	$120.11	Usually ships in 7-10 business days
10	31A-W0047-00-00	CALIPER SEAL KIT	$62.99	$49.13	5 In-Stock
11	1FK-W0046-01-00	BRAKE PAD KIT 2	$60.99	$47.57	4 In-Stock
12	26H-25919-00-00	SUPPORT, PAD	$30.99	$25.41	Usually ships in 7-10 business days
13	3HE-25924-00-00	PIN, PAD	$22.99	$17.93	3 In-Stock
14	3GM-25925-00-00	CLIP	$12.99	$10.13	6 In-Stock
15	1J3-W0048-00-00	BLEED SCREW KIT	$33.99	$27.87	Usually ships in 7-10 business days
16	41Y-25836-01-00 (replaces part # 41Y-25836-00-00)	COVER, DUST	$17.99	$14.75	Usually ships in 7-10 business days
17	1FK-25827-01-00 (replaces part # 1FK-25827-00-00)	SHIM, CALIPER	$17.99	$14.75	Usually ships in 7-10 business days
18	1FK-25828-01-00 (replaces part # 1FK-25828-00-00)	SHIM, CALIPER	$16.49	$13.52	Usually ships in 7-10 business days
19	90105-10638-00	BOLT, WASHER BASED	$8.49	$6.62	10+ In-Stock
20	36Y-25371-00-00	BAR, TENSION	$36.99	$30.33	Usually ships in 7-10 business days
21	95814-08030-00	BOLT, FLANGE	$9.49	$8.54	Usually ships in 7-10 business days
22	91490-20025-00	PIN, COTTER	$1.99	$1.71	10+ In-Stock
23	90179-08491-00	NUT	$2.80	$2.41	10+ In-Stock
