2003 Yamaha TTR125E Clutch OEM Parts Diagram

Submodel TTR125E - TTR125ER - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH

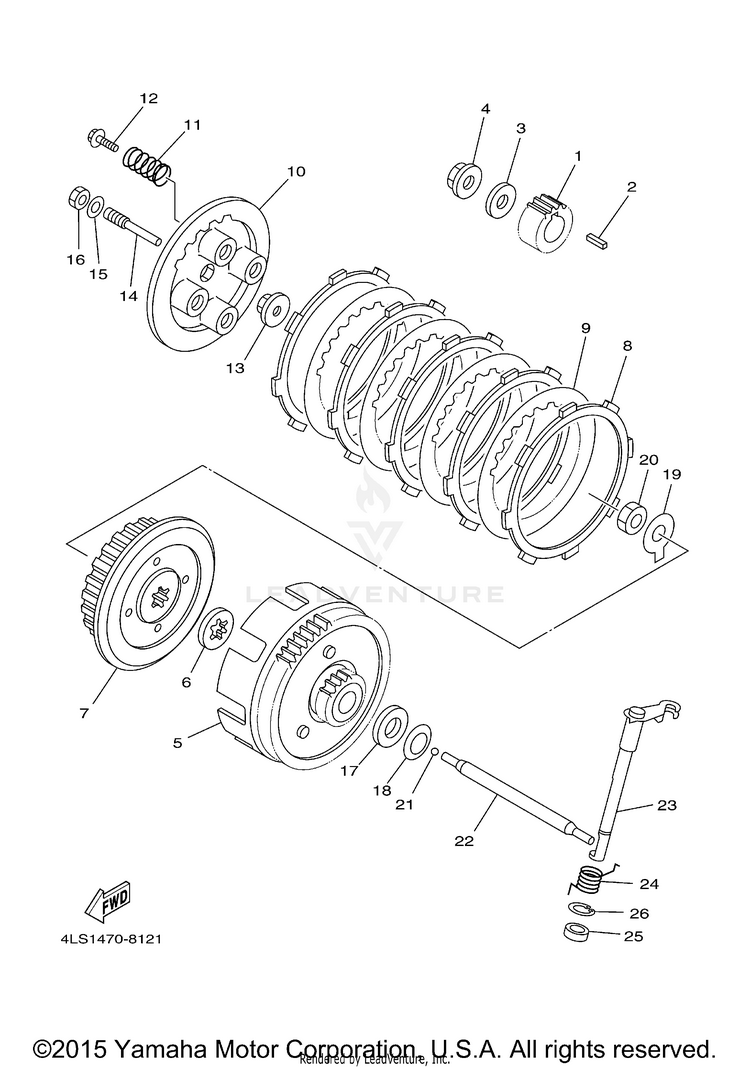

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1401-16111-10-00GEAR, PRIMARY DRIVE (19T)$79.99$62.39Usually ships in 7-10 business days
290282-05001-00KEY, STRAIGHT (5MMX16MM)$10.49$8.182 In-Stock
390201-122H1-00WASHER, PLATE$10.49$8.1810+ In-Stock
490179-12659-00NUT$9.49$7.4010+ In-Stock
55AP-16150-01-00

(replaces part #
5AP-16150-00-00)

PRIMARY DRIVEN GEAR COMP.$371.99$290.153 In-Stock
64V0-16154-00-00PLATE, THRUST 1$34.99$28.69Usually ships in 7-10 business days
75AP-16371-00-00BOSS, CLUTCH$137.99$107.634 In-Stock
8598-16321-01-00PLATE, FRICTION$18.99$14.8110+ In-Stock
91V1-16324-10-00

(replaces part #
1V1-16324-00-00)

PLATE, CLUTCH 1$24.99$19.4910+ In-Stock
105AP-16351-00-00PLATE, PRESSURE 1$47.99$37.431 In-Stock
1190501-204A0-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
1290119-05020-00BOLT, WITH WASHER$10.49$8.1810+ In-Stock
131W1-16358-01-00PLATE, PUSH$25.99$20.277 In-Stock
145AP-16356-00-00ROD, PUSH 1$15.49$12.082 In-Stock
1592907-06200-00WASHER$9.49$7.4010+ In-Stock
1695317-06600-00NUT$3.85$3.3110+ In-Stock
175AP-16164-00-00PLATE, THRUST 2$12.49$10.24Not Shipping
1890208-17032-00WASHER, CONICAL SPRING$4.55$3.916 In-Stock
1990215-12211-00WASHER, LOCK$9.49$7.4010+ In-Stock
2090170-12060-00NUT$10.49$8.186 In-Stock
2193503-16003-00BALL$2.90$2.4910+ In-Stock
225AP-16357-01-00

(replaces part #
5AP-16357-00-00)

ROD, PUSH 2$31.99$26.23Not Shipping
231B2-E6381-01-00

(replaces part #
5HP-16381-00-00)

PUSH LEVER COMP.-$81.20Usually ships in 7-10 business days
2490508-142A5-00SPRING, TORSION$4.90$4.217 In-Stock
2593102-12224-00OIL SEAL$11.49$8.9610+ In-Stock
AFTERMARKET ALTERNATIVE
$3.99$2.9910+ In-Stock
2699009-20500-00CIRCLIP$1.85$1.599 In-Stock
