2003 Yamaha TTR125E Handle Switch Lever Ler OEM Parts Diagram

Submodel TTR125E - TTR125ER - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

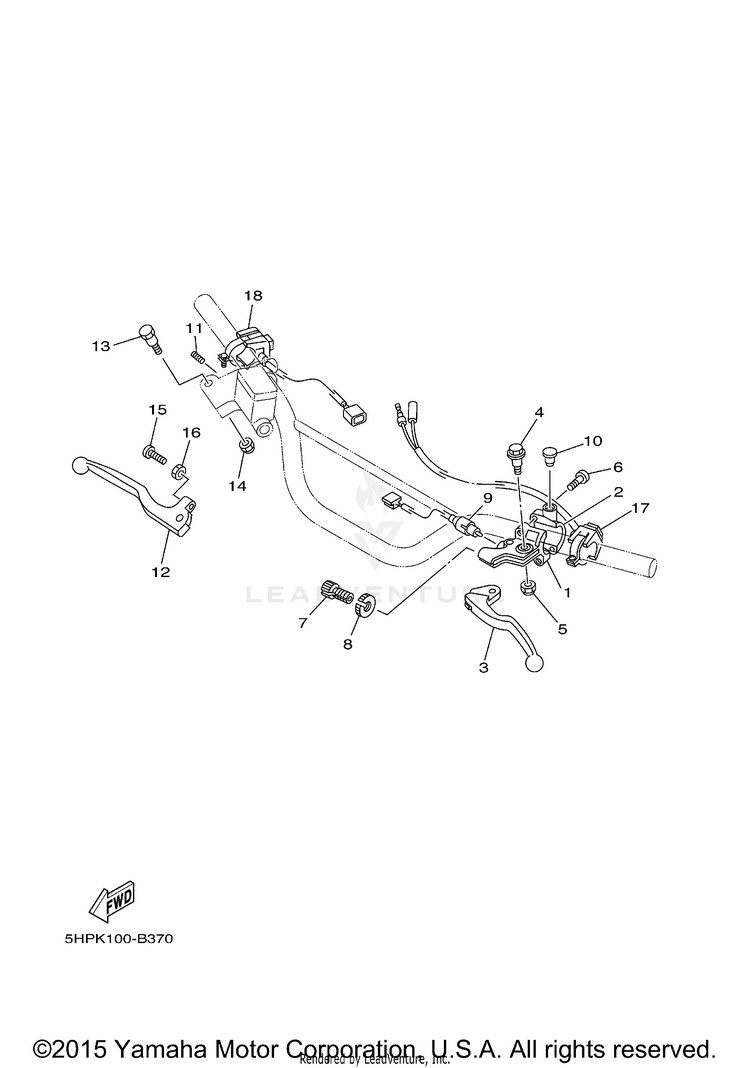

HANDLE SWITCH LEVER LER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11LN-82911-00-00HOLDER, LEVER 1$44.99$35.092 In-Stock
233G-82913-01-00HOLDER, LEVER LOWER 1$21.99$17.159 In-Stock
34GY-83912-00-00LEVER 1$31.99$24.9510+ In-Stock
490109-06799-00BOLT$5.49$4.288 In-Stock
595617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
697607-05220-00SCREW, WITH WASHER-$4.632 In-Stock
790123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
890179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
919D-82917-00-00

(replaces part #
5HP-82917-00-00)

SWITCH$51.99$40.552 In-Stock
1090338-09012-00PLUG$10.49$8.186 In-Stock
1190501-061G2-00SPRING, COMPRESSION$3.60$3.104 In-Stock
123SP-83922-01-00

(replaces part #
3SP-83922-00-00)

LEVER R$42.99$33.534 In-Stock
1390109-06577-00BOLT$6.49$5.0610+ In-Stock
1495617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1590143-06024-00SCREW, HEXAGON$12.49$9.744 In-Stock
1690170-06010-00NUT$9.49$7.404 In-Stock
175HP-83976-22-00

(replaces part #
5HP-83976-20-00)

SWITCH, HANDLE 1$84.99$66.291 In-Stock
185HP-83976-12-00

(replaces part #
5HP-83976-10-00)

SWITCH, HANDLE 1$86.99$67.856 In-Stock
