2003 Yamaha TTR125E Exhaust OEM Parts Diagram

Submodel TTR125E - TTR125ER - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

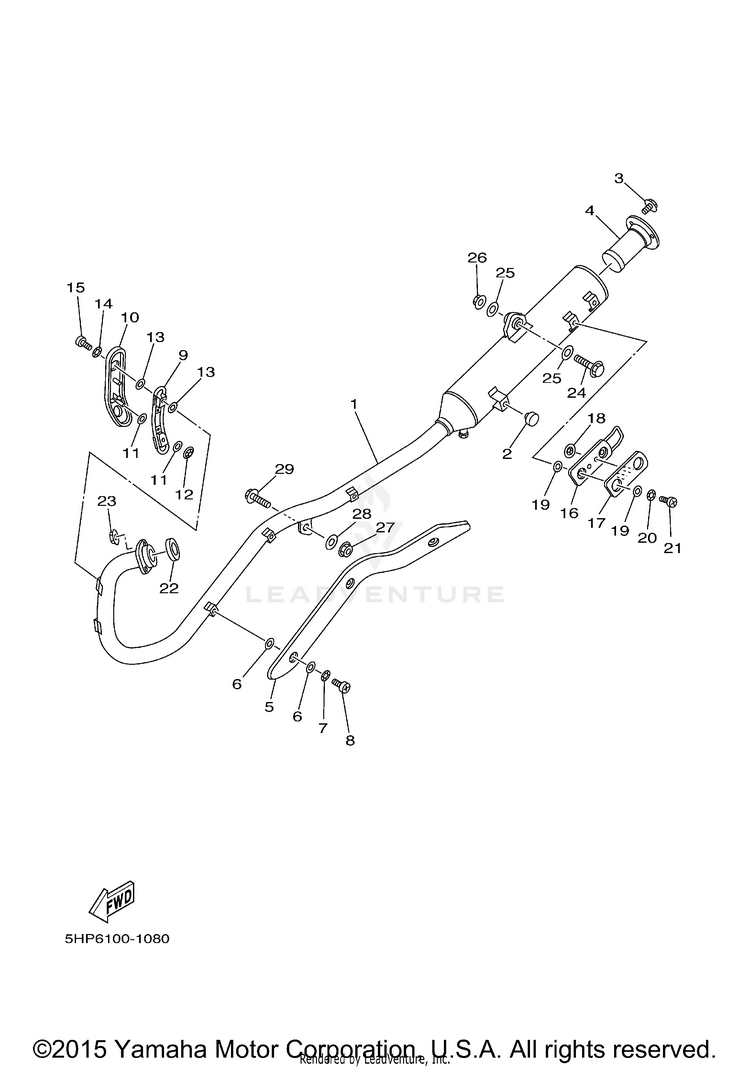

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15HP-14711-10-00MUFFLER 1$319.39$249.12Not Shipping
222W-24181-00-00DAMPER, LOCATING 1$7.49$5.8410+ In-Stock
395027-06010-00BOLT, FLANGE$3.55$3.0510+ In-Stock
45HP-14780-00-00SPARK ARRESTER ASSY$118.99$92.813 In-Stock
55HP-14628-00-00PROTECTOR, EXHAUST PIPE$79.99$62.39Not Shipping
64BD-14766-00-00WASHER, PROTECTOR$5.99$4.6710+ In-Stock
790206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
898980-06008-00SCREW, BIND-$1.2210+ In-Stock
95HP-14628-10-00PROTECTOR, EXHAUST PIPE$50.99$39.77Not Shipping
105HP-1479H-00-00COVER, 1$12.49$9.74Not Shipping
114BD-14766-00-00WASHER, PROTECTOR$5.99$4.6710+ In-Stock
1290183-04005-00NUT, SPRING-$1.6710+ In-Stock
134BD-14766-00-00WASHER, PROTECTOR$5.99$4.6710+ In-Stock
1490206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
1598980-06008-00SCREW, BIND-$1.2210+ In-Stock
165HP-14758-00-00PROTECTOR, SILENCER$42.99$35.25Usually ships in 7-10 business days
175HP-1479J-00-00COVER 2$18.99$15.57Usually ships in 7-10 business days
1890183-04005-00NUT, SPRING-$1.6710+ In-Stock
194BD-14766-00-00WASHER, PROTECTOR$5.99$4.6710+ In-Stock
2090206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
2198980-06008-00SCREW, BIND-$1.2210+ In-Stock
224BR-14613-00-00GASKET, EXHAUST PIPE$8.49$6.629 In-Stock
2395604-06200-00

(replaces part #
95607-06200-00)

NUT, U FLANGE$2.95$2.5410+ In-Stock
2495814-10040-00BOLT, FLANGE$5.49$4.287 In-Stock
2590201-101J1-00WASHER, PLATE$9.49$7.4010+ In-Stock
2690185-10002-00NUT, SELF-LOCKING$9.49$7.4010+ In-Stock
2790179-08491-00NUT$2.80$2.4110+ In-Stock
2890201-087A9-00WASHER, PLATE$5.49$4.286 In-Stock
2990105-081A7-00BOLT, FLANGE$9.49$7.402 In-Stock
