2003 Yamaha TTR125E Steering OEM Parts Diagram

Submodel TTR125E - TTR125ER - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

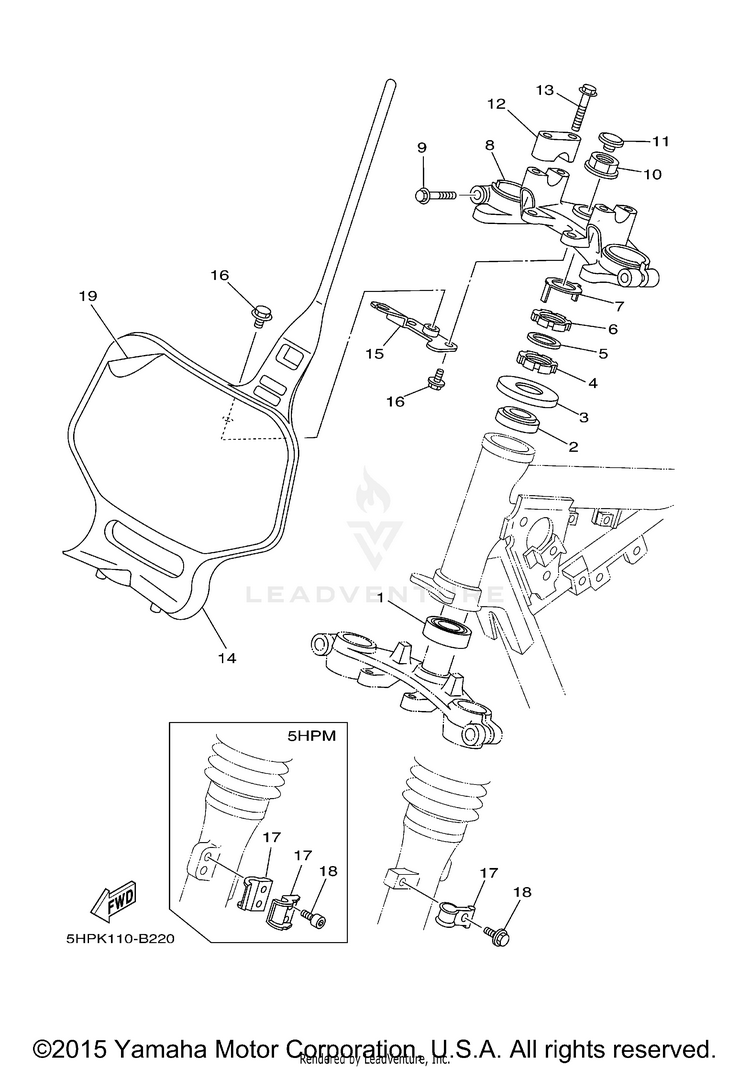

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-3Y1-23319-00-00HOLDER, CABLE 2$5.49$4.282 In-Stock
-91317-06016-00BOLT (4MY) | UR LW-$1.4210+ In-Stock
193332-00079-00BEARING$75.99$59.275 In-Stock
AFTERMARKET ALTERNATIVE
$43.00$35.9910+ In-Stock
293399-99949-00BEARING$63.99$49.914 In-Stock
AFTERMARKET ALTERNATIVE
$48.00$39.9910+ In-Stock
35HP-23416-00-00COVER, BALL RACE 2$25.99$21.31Usually ships in 7-10 business days
490179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
590202-26142-00WASHER, PLATE$10.49$8.187 In-Stock
690179-25615-00NUT$29.99$24.59Usually ships in 7-10 business days
73YF-23418-00-00WASHER, SPECIAL$19.99$16.39Usually ships in 7-10 business days
85HP-23435-00-00CROWN, HANDLE$103.99$81.11Usually ships in 7-10 business days
995024-08035-00BOLT, FLANGE (SMALL HEAD)$9.49$7.4010+ In-Stock
1090179-22412-00NUT$22.99$17.932 In-Stock
115HP-2319U-00-00CAP$16.49$13.52Usually ships in 7-10 business days
121E6-23441-10-35HOLDER, HANDLE UPPER | SL$25.99$20.274 In-Stock
1395024-08035-00BOLT, FLANGE (SMALL HEAD)$9.49$7.4010+ In-Stock
144ES-23485-20-00PLATE, NUMBER$24.99$19.494 In-Stock
155HP-23486-00-00STAY, PLATE$9.99$8.99Not Shipping
1695817-06012-00BOLT, FLANGE$1.95$1.7710+ In-Stock
1790465-14242-00CLAMP | UR LW$39.99$31.191 In-Stock
1895817-06012-00

(replaces part #
95807-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
194ES-2339E-00-00GRAPHIC 1$38.99$31.97Not Shipping
