2003 Yamaha V-Star 650 Classic Crankshaft Piston OEM Parts Diagram

Submodel V-STAR CLASSIC - XVS650ARC - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

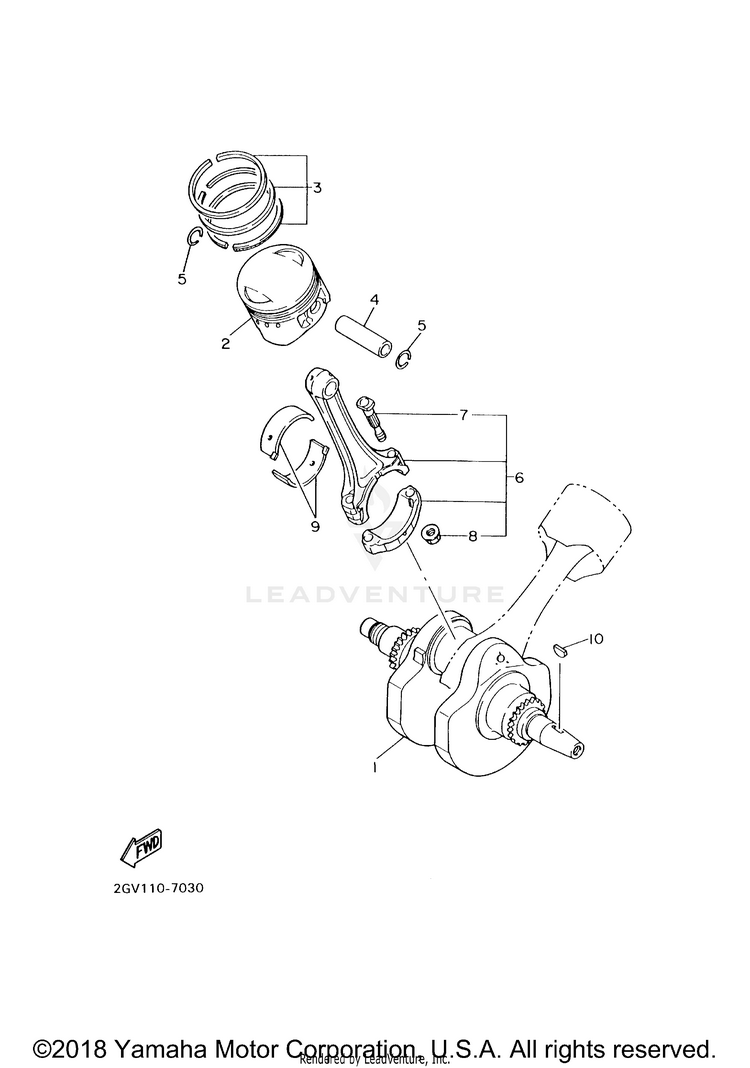

CRANKSHAFT PISTON

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14VR-11411-00-00CRANKSHAFT$698.99$610.32Usually ships in 7-10 business days
24VR-11636-01-00

(replaces part #
4VR-11636-00-00)

PISTON (0.50MM O/S) | AP$172.99$134.93Usually ships in 7-10 business days
24VR-11631-01-A0PISTON (STD)$187.99$146.63Usually ships in 7-10 business days
24VR-11638-01-00

(replaces part #
4VR-11638-00-00)

PISTON (1.00MM O/S) | AP$145.99$115.70Usually ships in 7-10 business days
34VR-11603-00-00PISTON RING SET (STD)$73.99$57.71Usually ships in 7-10 business days
34VR-11607-00-00PISTON RING SET (1.00MM O/S) | AP$33.99$27.87Usually ships in 7-10 business days
34VR-11605-00-00PISTON RING SET (0.50MM O/S) | AP$70.99$55.37Usually ships in 7-10 business days
43LD-11633-00-00PIN, PISTON$37.99$29.631 In-Stock
593450-22027-00CIRCLIP$8.49$6.6210+ In-Stock
64VR-11650-00-00CONNECTING ROD ASSY$302.99$236.33Usually ships in 7-10 business days
722U-11654-00-00BOLT, CONNECTING ROD$6.49$5.84Usually ships in 7-10 business days
890179-08327-00NUT$10.49$8.60Usually ships in 7-10 business days
93LD-11656-10-00PLANE BEARING, CONNECTING ROD | UR BLACK$13.49$11.06Usually ships in 7-10 business days
93LD-11656-00-00PLANE BEARING, CONNECTING ROD | UR BLUE$32.99$27.05Usually ships in 7-10 business days
93LD-11656-20-00PLANE BEARING, CONNECTING ROD | UR BROWN$30.99$25.41Usually ships in 7-10 business days
93LD-11656-30-00PLANE BEARING, CONNECTING ROD | UR GREEN$32.99$27.05Usually ships in 7-10 business days
1090280-05001-00

(replaces part #
90280-16053-00)

KEY, WOODRUFF$13.49$10.5210+ In-Stock
