2003 Yamaha V-Star 650 Classic Shift Shaft OEM Parts Diagram

Submodel V-STAR CLASSIC - XVS650ARC - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

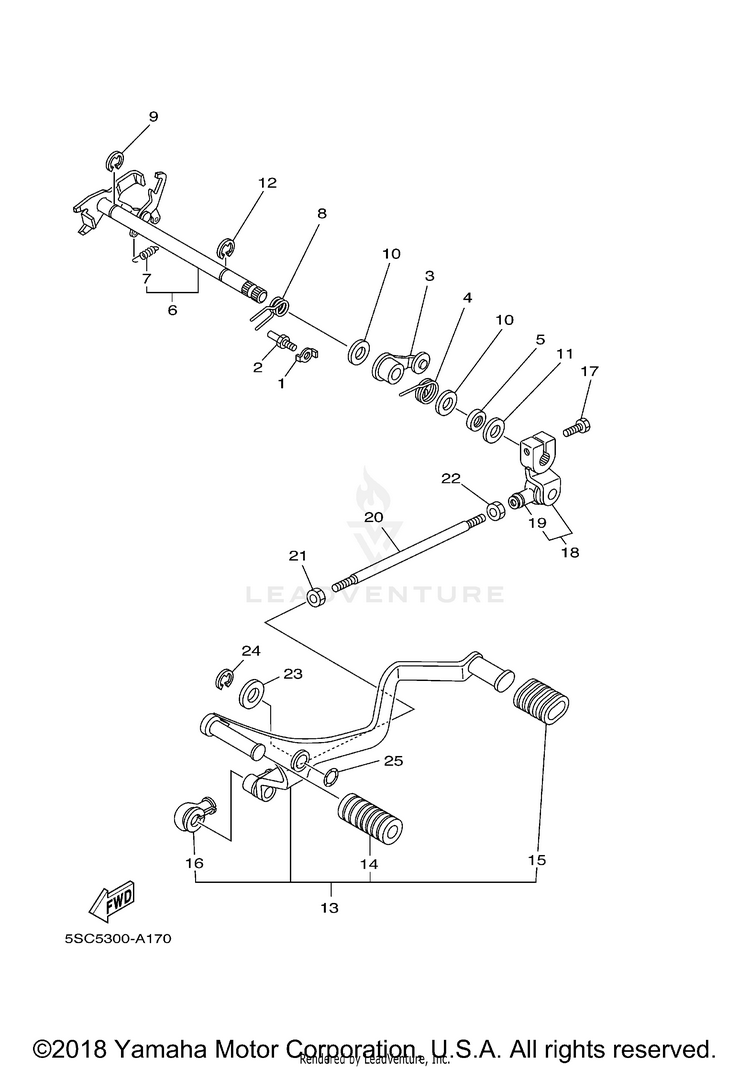

SHIFT SHAFT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
190215-18178-00WASHER, LOCK$3.85$3.46Usually ships in 7-10 business days
25VK-18127-00-00

(replaces part #
4G0-18127-00-00)

STOPPER, SCREW$15.49$12.70Usually ships in 7-10 business days
34TR-18140-00-00STOPPER LEVER ASSY$51.99$40.55Usually ships in 7-10 business days
490508-290B5-00SPRING, TORSION$6.49$5.84Usually ships in 7-10 business days
593102-12321-00OIL SEAL (SD 12-22-5 HS)$13.49$10.5210+ In-Stock
64TR-18120-00-00SHIFT LEVER ASSY$51.99$40.55Usually ships in 7-10 business days
790506-08227-00SPRING, TENSION$4.55$3.913 In-Stock
890508-32536-00SPRING, TORSION$12.49$10.24Usually ships in 7-10 business days
999006-10600-00CIRCLIP$10.49$8.1810+ In-Stock
1090201-12588-00WASHER, PLATE$8.49$6.624 In-Stock
1190201-12575-00WASHER, PLATE$9.49$7.4010+ In-Stock
1299006-10600-00CIRCLIP$10.49$8.1810+ In-Stock
135BN-18110-01-00

(replaces part #
5BN-18110-00-00)

SHIFT PEDAL ASSY$143.99$112.31Usually ships in 7-10 business days
144NK-18113-10-00COVER, SHIFT PEDAL$8.49$7.64Usually ships in 7-10 business days
1522N-18113-00-00COVER, SHIFT PEDAL$8.49$7.64Usually ships in 7-10 business days
162H9-18154-00-00COVER, DUST$5.99$4.768 In-Stock
1797024-06020-00BOLT$9.49$7.4010+ In-Stock
184TR-18112-00-00ARM, SHIFT$84.99$66.29Usually ships in 7-10 business days
192H9-18154-00-00COVER, DUST$5.99$4.768 In-Stock
205A8-18115-00-00ROD, SHIFT$35.99$29.51Usually ships in 7-10 business days
2190170-06228-00NUT (COUNTER CLOCKWISE)$10.49$8.18
229538R-06700-00NUT$6.11$5.50Usually ships in 7-10 business days
2390201-124E4-00WASHER, PLATE$10.49$8.1810+ In-Stock
2499009-12400-00CIRCLIP$3.59$3.0910+ In-Stock
2590206-12074-00WASHER, WAVE$10.49$8.18
