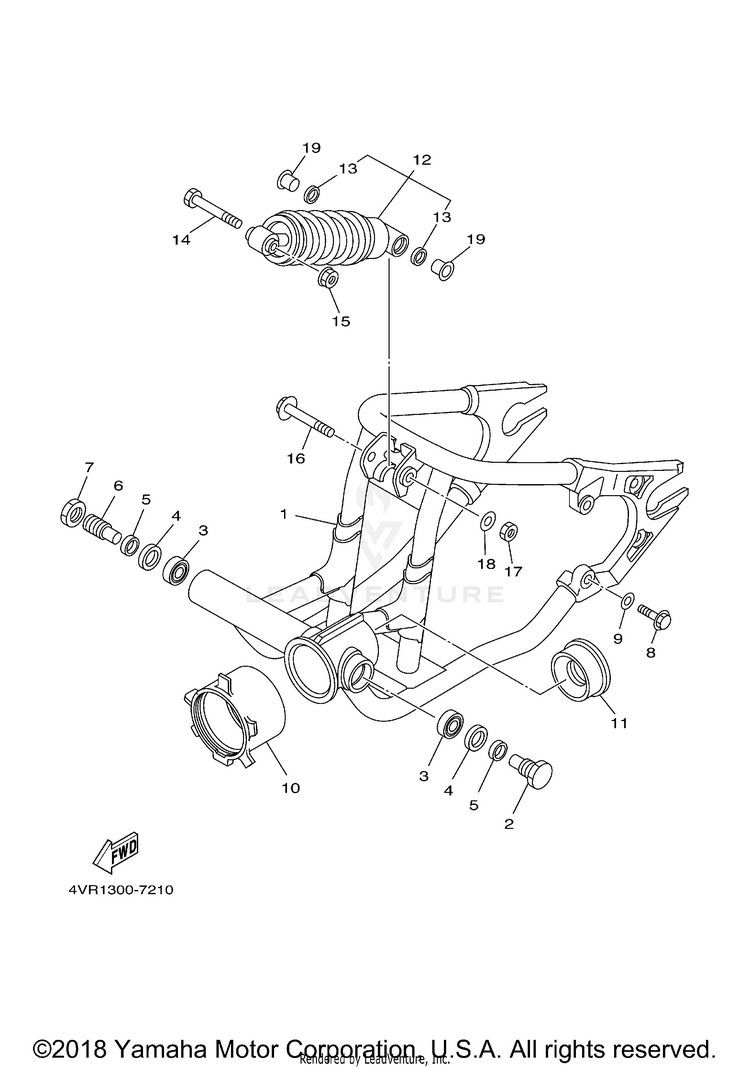

2003 Yamaha V-Star 650 Classic Rear Arm Suspension OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	4VR-22110-01-00	REAR ARM COMP.	$879.99	$736.81	Usually ships in 7-10 business days
2	4H7-22141-00-00 (replaces part # 4KM-22141-00-00)	SHAFT, PIVOT	$39.99	$32.79	Usually ships in 7-10 business days
3	93332-00010-00	BEARING	$51.99	$40.55	4 In-Stock
4	93102-25017-00	OIL SEAL	$6.49	$5.06	4 In-Stock
5	90387-17011-00 (replaces part # 90387-17543-00)	COLLAR	$17.49	$13.64	4 In-Stock
6	15B-22141-00-00 (replaces part # 1J7-22141-00-00)	SHAFT, PIVOT	$18.49	$15.16	Usually ships in 7-10 business days
7	1J7-22143-00-00	NUT	$25.99	$20.27	6 In-Stock
8	95814-10040-00	BOLT, FLANGE	$5.49	$4.28	7 In-Stock
9	90201-112U0-00	WASHER, PLATE	$6.49	$5.84	Usually ships in 7-10 business days
10	4TR-22189-00-00	BOOT, RUBBER	$31.99	$26.23	Usually ships in 7-10 business days
11	4VR-22184-00-00	BUSH	$34.99	$28.69	Usually ships in 7-10 business days
12	5BN-22210-40-00	SHOCK ABSORBER ASSY, REAR	$482.99	$376.73	Usually ships in 7-10 business days
13	93109-18020-00	OIL SEAL	$14.49	$11.30	5 In-Stock
14	90109-125F1-00	BOLT	$11.49	$9.42	Usually ships in 7-10 business days
15	95607-12200-00	NUT, SELF-LOCKING	$6.49	$5.06	3 In-Stock
16	90109-125F1-00	BOLT	$11.49	$9.42	Usually ships in 7-10 business days
17	95617-12100-00	NUT, U	$4.16	$3.58
18	90201-12027-00 (replaces part # 90201-120E6-00)	WASHER, PLATE	$9.49	$7.40	4 In-Stock
19	90387-123X6-00	COLLAR	$25.99	$21.31	Usually ships in 7-10 business days
