2003 Yamaha V-Star 650 Classic Shift Cam Fork OEM Parts Diagram

Submodel V-STAR CLASSIC - XVS650ARC - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

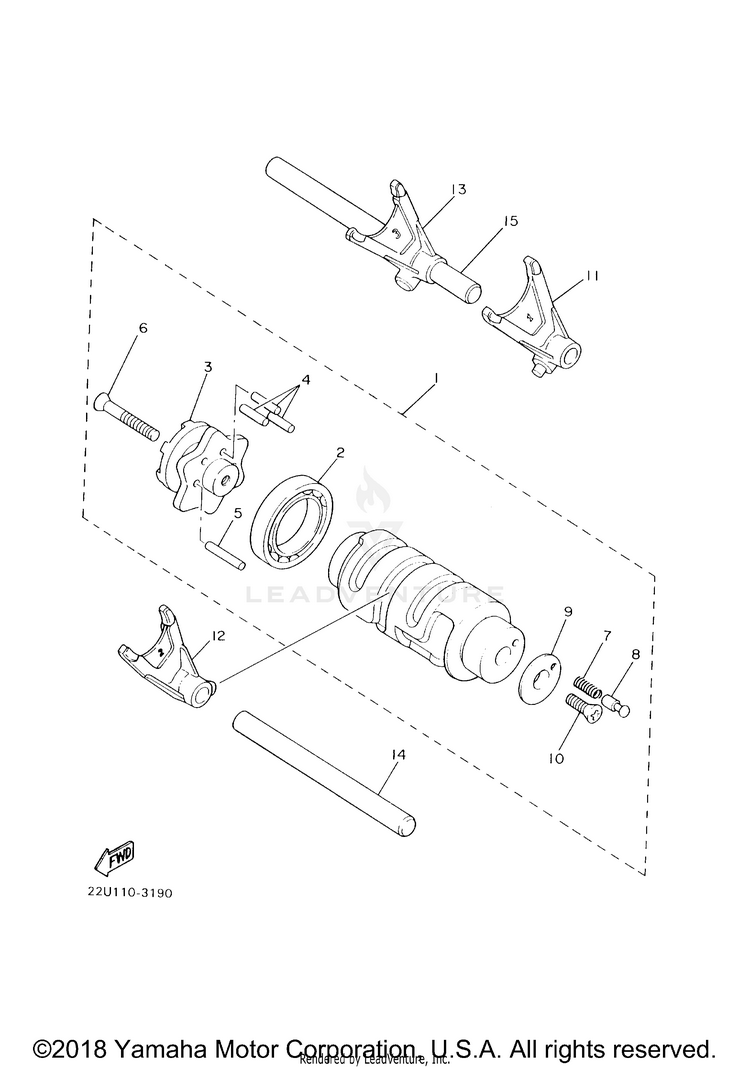

SHIFT CAM FORK

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14TR-18540-02-00SHIFT CAM ASSY$162.99$129.23Usually ships in 7-10 business days
293306-90602-00BEARING$45.99$37.71Usually ships in 7-10 business days
316G-18185-00-00SEGMENT$96.99$75.65Usually ships in 7-10 business days
493604-16092-00PIN, DOWEL$3.45$2.979 In-Stock
593604-20156-00PIN, DOWEL$3.85$3.315 In-Stock
698707-05035-00SCREW, FLAT HEAD$9.49$8.54Usually ships in 7-10 business days
790501-06022-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
84UN-18542-00-00POINT, NEUTRAL$9.49$7.4010+ In-Stock
94UN-18566-00-00PLATE, SIDE 2$21.99$18.03Usually ships in 7-10 business days
1090149-05245-00

(replaces part #
90149-05321-00)

SCREW$9.49$8.54Usually ships in 7-10 business days
114TR-18511-00-00FORK, SHIFT 1$47.99$39.35Usually ships in 7-10 business days
124TR-18512-00-00FORK, SHIFT 2$47.99$39.35Usually ships in 7-10 business days
134TR-18513-00-00FORK, SHIFT 3$47.99$39.35Usually ships in 7-10 business days
143YF-18531-00-00BAR, SHIFT FORK GUIDE 1$16.49$13.52Usually ships in 7-10 business days
154TR-18535-00-00BAR, SHIFT FORK GUIDE 2$31.99$26.23Usually ships in 7-10 business days
