2003 Yamaha YZF-R1 Front Brake Caliper OEM Parts Diagram

Submodel R1 - YZFR1RC - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

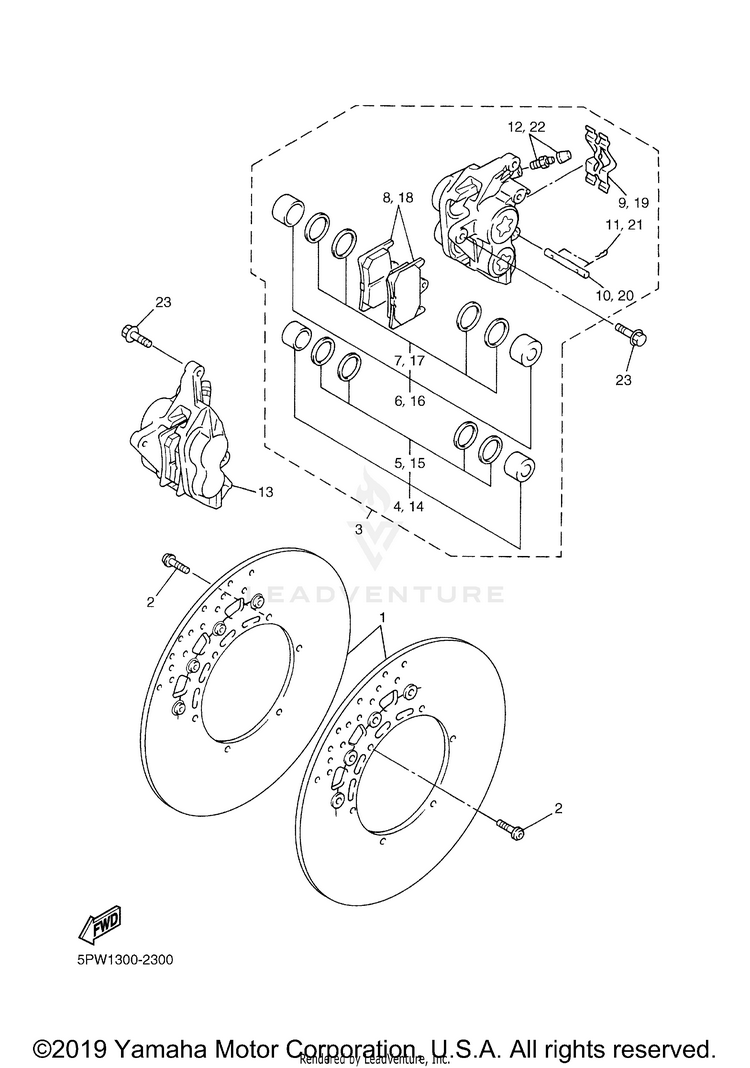

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15JJ-2581T-11-00DISC BRAKE ASSY$349.99$290.46Usually ships in 7-10 business days
290109-06254-00

(replaces part #
90109-064G6-00)

BOLT$3.60$3.1010+ In-Stock
35PW-2580T-00-00CALIPER ASSY (LEFT)$759.99$635.98Usually ships in 7-10 business days
45PW-25802-00-00

(replaces part #
5PW-W0057-00-00)

PISTON ASSY, CALIPER$105.99$82.67Usually ships in 7-10 business days
55PW-25803-00-00

(replaces part #
5PW-W0047-00-00)

CALIPER SEAL KIT$18.99$14.8110+ In-Stock
65PW-25802-10-00

(replaces part #
5PW-W0057-10-00)

PISTON ASSY, CALIPER$105.99$82.67Usually ships in 7-10 business days
75PW-25803-10-00

(replaces part #
5PW-W0047-10-00)

CALIPER SEAL KIT$18.99$14.815 In-Stock
85PW-25805-00-00

(replaces part #
5PW-W0045-00-00)

BRAKE PAD KIT$87.99$68.63Usually ships in 7-10 business days
94SV-25919-00-00SUPPORT, PAD$38.99$31.97Usually ships in 7-10 business days
104SV-25924-00-00PIN, PAD$46.99$36.656 In-Stock
113GM-25925-00-00CLIP$12.99$10.136 In-Stock
121J3-W0048-00-00BLEED SCREW KIT$33.99$27.87Usually ships in 7-10 business days
135PW-2580U-00-00CALIPER ASSY (RIGHT)$600.99$468.77Usually ships in 7-10 business days
145PW-25802-00-00

(replaces part #
5PW-W0057-00-00)

PISTON ASSY, CALIPER$105.99$82.67Usually ships in 7-10 business days
155PW-25803-00-00

(replaces part #
5PW-W0047-00-00)

CALIPER SEAL KIT$18.99$14.8110+ In-Stock
165PW-25802-10-00

(replaces part #
5PW-W0057-10-00)

PISTON ASSY, CALIPER$105.99$82.67Usually ships in 7-10 business days
175PW-25803-10-00

(replaces part #
5PW-W0047-10-00)

CALIPER SEAL KIT$18.99$14.815 In-Stock
185PW-25805-00-00

(replaces part #
5PW-W0045-00-00)

BRAKE PAD KIT$87.99$68.63Usually ships in 7-10 business days
194SV-25919-00-00SUPPORT, PAD$38.99$31.97Usually ships in 7-10 business days
204SV-25924-00-00PIN, PAD$46.99$36.656 In-Stock
213GM-25925-00-00CLIP$12.99$10.136 In-Stock
221J3-W0048-00-00BLEED SCREW KIT$33.99$27.87Usually ships in 7-10 business days
2390105-105A7-00BOLT, FLANGE$9.49$7.4010+ In-Stock
