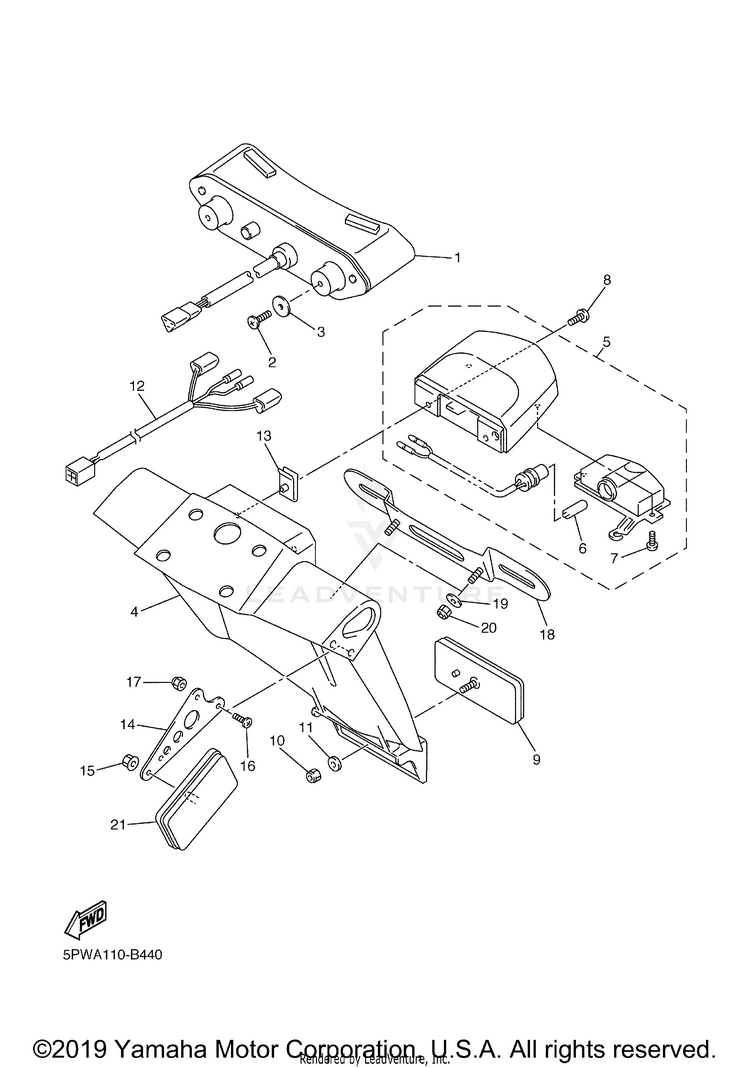

2003 Yamaha YZF-R1 Taillight OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5PW-84710-10-00	TAILLIGHT UNIT ASSY	$184.99	$146.05	Usually ships in 7-10 business days
2	97707-50016-00	SCREW, TRUSS HEAD TAPPING	$1.85	$1.59	10+ In-Stock
3	90201-05033-00	WASHER, SPECIAL	$11.49	$8.96	4 In-Stock
4	5PW-21629-10-00	GUARD, MUD	$33.99	$27.87	Usually ships in 7-10 business days
5	5PW-84745-01-00 (replaces part # 5PW-84745-00-00)	LICENCE LIGHT UNIT ASSY	$113.99	$88.91	Usually ships in 7-10 business days
6	4SV-84347-00-00 (replaces part # 4HC-84744-00-00)	BULB (12V-5W)	$9.49	$8.54	4 In-Stock
7	97707-40012-00 (replaces part # 97706-04012-00)	SCREW, TAPPING	$9.49	$7.40	10+ In-Stock
8	5PW-84726-00-00	SCREW	$1.00	$0.90	Usually ships in 7-10 business days
9	3Y6-85130-02-00	REAR REFLECTOR ASSY	$30.99	$24.17	3 In-Stock
10	95617-05100-00 (replaces part # 95607-05100-00)	NUT, U	$10.49	$8.18	10+ In-Stock
11	90201-05725-00	WASHER, PLATE	$10.49	$8.60	6 In-Stock
12	5PW-84717-00-00	CORD, TAILLIGHT	$56.99	$44.45	Usually ships in 7-10 business days
13	4KB-84117-00-00	NUT	$10.99	$8.57	10+ In-Stock
14	5PW-21688-00-00	BRACKET, REAR STAY	$14.99	$12.29	Usually ships in 7-10 business days
15	95707-05500-00	NUT, FLANGE	$9.49	$7.40	10+ In-Stock
16	90150-04041-00	SCREW, ROUND HEAD	$0.50	$0.45	Usually ships in 7-10 business days
17	95617-04100-00 (replaces part # 95607-04100-00)	NUT, U	$10.49	$8.60	Usually ships in 7-10 business days
18	5MT-84751-00-00	BRACKET, LICENSE	$32.99	$27.05	Usually ships in 7-10 business days
19	90201-06057-00	WASHER, PLATE	$6.49	$5.06	7 In-Stock
20	95617-06100-00 (replaces part # 95607-06100-00)	NUT, U	$2.90	$2.49	10+ In-Stock
21	3Y6-85130-02-00	REAR REFLECTOR ASSY	$30.99	$24.17	3 In-Stock
