2003 Yamaha YZF-R1 Generator OEM Parts Diagram

Submodel R1 - YZFR1RC - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

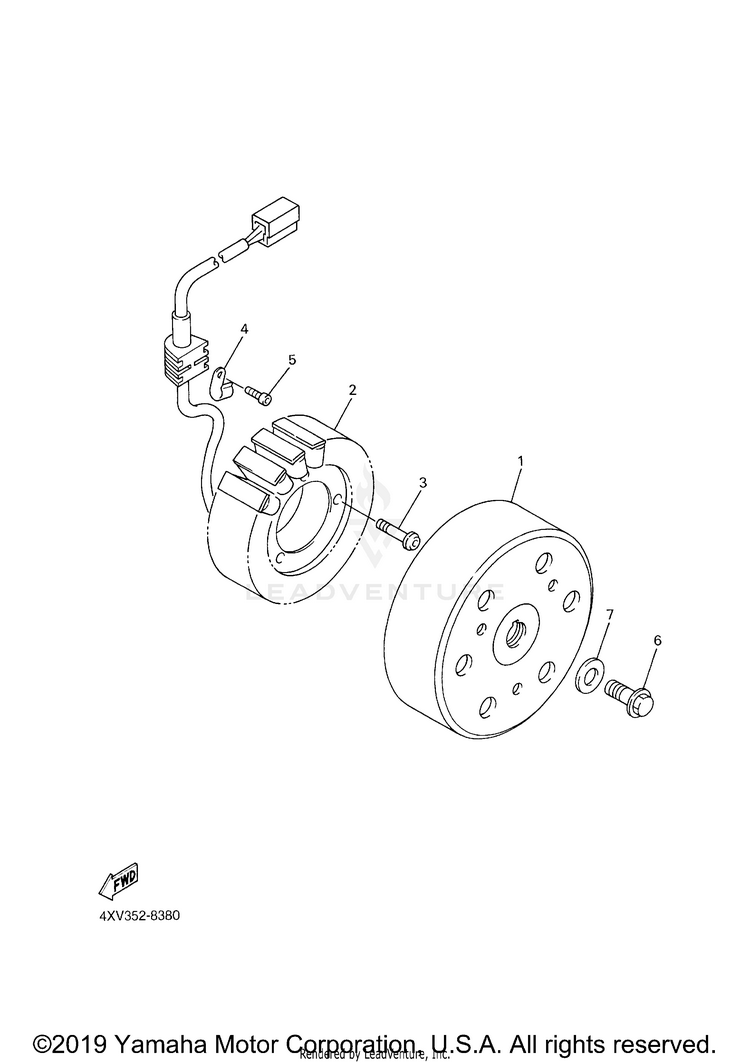

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15PW-81450-00-00ROTOR ASSY$833.99$650.51Usually ships in 7-10 business days
25PW-81410-01-00STATOR ASSY$559.99$436.79Usually ships in 7-10 business days
390149-06013-00SCREW$11.49$9.42Usually ships in 7-10 business days
490465-14011-00CLAMP$5.49$4.94Usually ships in 7-10 business days
591317-06012-00

(replaces part #
90110-06018-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
690105-105A6-00BOLT, FLANGE$12.49$10.24Usually ships in 7-10 business days
790201-103U7-00WASHER, PLATE$16.49$13.52Usually ships in 7-10 business days
