2003 Yamaha YZF-R1 Intake OEM Parts Diagram

Submodel R1 - YZFR1RC - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

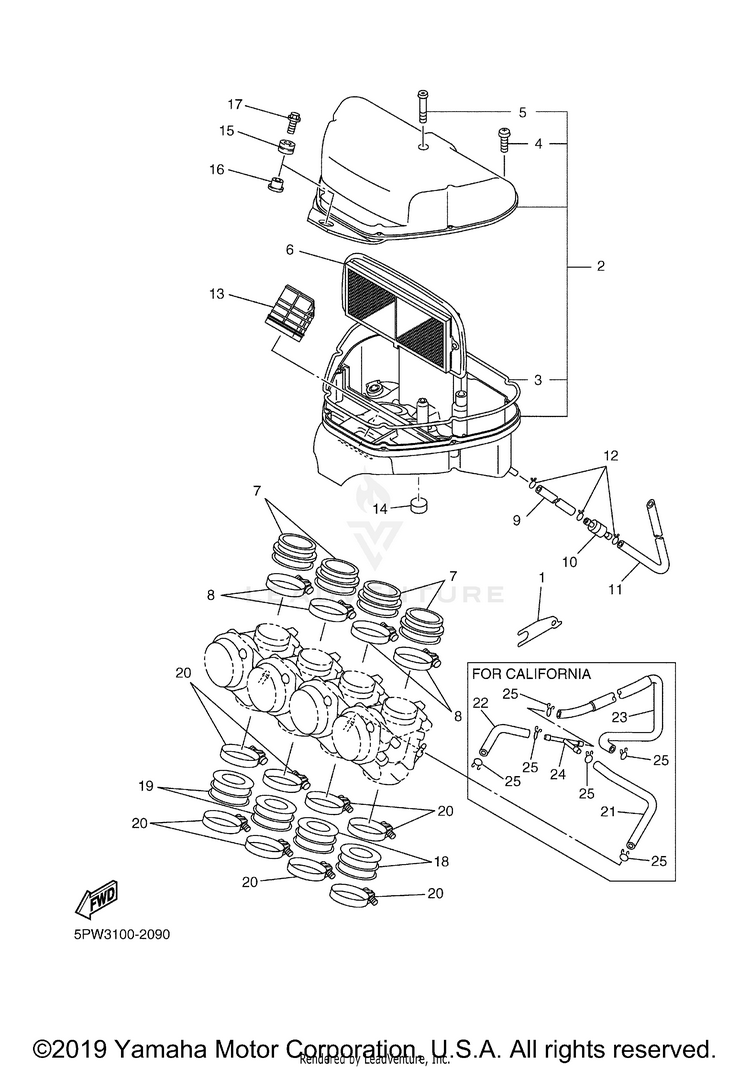

INTAKE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15JJ-14414-00-00STAY 2$4.40$3.96Usually ships in 7-10 business days
25PW-14401-00-00AIR CLEANER CASE ASSY$202.05$157.60Usually ships in 7-10 business days
31VJ-14462-00-00

(replaces part #
4XV-14452-00-00)

SEAL$19.99$15.5910+ In-Stock
498507-05025-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
598507-05045-00SCREW, PAN HEAD$10.49$8.183 In-Stock
65PW-14451-00-00ELEMENT, AIR CLEANER$56.99$44.45Usually ships in 7-10 business days
75PW-14453-00-00JOINT, AIR CLEANER 1$11.49$9.42Not Shipping
890450-53007-00

(replaces part #
90450-53002-00)

HOSE CLAMP ASSY$9.49$8.54Usually ships in 7-10 business days
990445-11293-00

(replaces part #
90445-11M52-00)

HOSE (L100)$10.49$8.187 In-Stock
104X7-2149Y-00-00FILTER ASSY$22.99$17.93
1190445-11013-00HOSE (L410)$14.99$12.29Usually ships in 7-10 business days
1290467-100A1-00

(replaces part #
90467-10041-00)

CLIP$8.49$6.6210+ In-Stock
135PW-14437-00-00DUCT$18.49$15.16Usually ships in 7-10 business days
144XV-28371-00-00DAMPER$2.20$1.98Not Shipping
1590480-12X00-00

(replaces part #
90480-12314-00)

GROMMET-$2.474 In-Stock
1690387-06159-00

(replaces part #
90387-065J6-00)

COLLAR$9.49$7.408 In-Stock
1795817-06020-00BOLT, FLANGE$3.50$3.0110+ In-Stock
185PW-13597-00-00JOINT, CARBURETOR 3$26.99$22.13Usually ships in 7-10 business days
195PW-13598-00-00JOINT, CARBURETOR 4$23.99$19.67Usually ships in 7-10 business days
2090450-63001-00HOSE CLAMP ASSY$16.49$13.52Usually ships in 7-10 business days
215PW-14465-00-00PIPE$15.49$12.70Usually ships in 7-10 business days
225PW-14466-00-00PIPE$16.49$13.52Usually ships in 7-10 business days
235PW-1443J-00-00PIPE$33.59$27.54Usually ships in 7-10 business days
2490413-08012-00WAY 3$4.90$4.41Usually ships in 7-10 business days
2590467-100A1-00

(replaces part #
90467-10008-00)

CLIP$8.49$6.6210+ In-Stock
