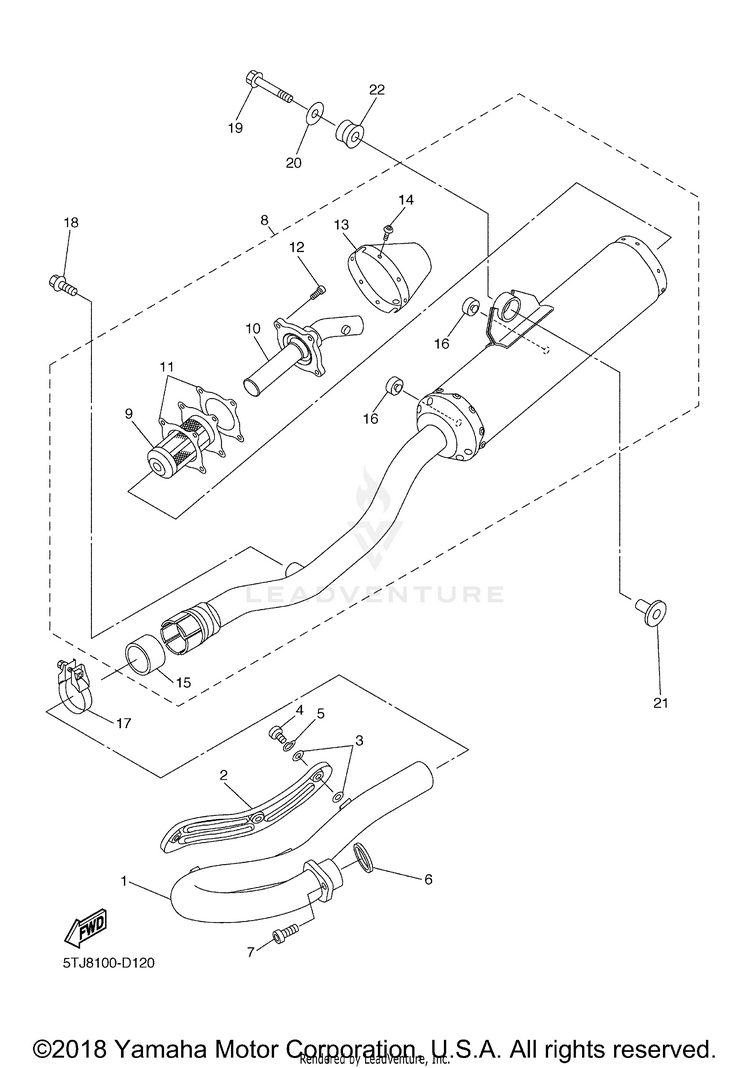

2005 Yamaha WR250F Exhaust OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5XC-14611-00-00	PIPE, EXHAUST 1	$390.03	$304.22	Usually ships in 7-10 business days
2	5XC-14628-00-00	PROTECTOR, EXHAUST PIPE	$100.99	$78.77	4 In-Stock
3	4BD-14766-00-00	WASHER, PROTECTOR	$5.99	$4.67	10+ In-Stock
4	98980-06008-00	SCREW, BIND	-	$1.22	10+ In-Stock
5	90206-06090-00	WASHER, WAVE	$9.49	$7.40	10+ In-Stock
6	5NL-14613-00-00	GASKET, EXHAUST PIPE \| INCL. IN TOP END GASKET KIT	$15.49	$12.08	10+ In-Stock
7	91317-08020-00	BOLT, HEX. SOCKET HEAD	$3.05	$2.62	10+ In-Stock
8	5UM-14710-80-00	MUFFLER ASSY 1	$1,088.99	$911.22	Usually ships in 7-10 business days
9	5TJ-14780-00-00	SPARK ARRESTER ASSY	$104.99	$81.89	Usually ships in 7-10 business days
10	5TJ-14784-00-00	PIPE, TAIL	$157.99	$123.23	3 In-Stock
11	5TJ-14623-00-00	GASKET, EXHAUST PIPE	$14.49	$11.30	6 In-Stock
12	91314-05008-00	BOLT	$1.05	$0.90	Not Shipping
13	5TJ-14799-00-00	CAP	$131.99	$102.95	Usually ships in 7-10 business days
14	92014-05008-00	BOLT, BUTTON HEAD	$4.40	$3.96	Usually ships in 7-10 business days
15	5PH-14714-00-00	GASKET, MUFFLER	$47.99	$37.43	2 In-Stock
16	22W-24181-00-00	DAMPER, LOCATING 1	$7.49	$5.84	10+ In-Stock
17	5BE-14788-00-00	BAND, SILENCER	$38.99	$30.41	10+ In-Stock
18	90105-08057-00	BOLT, FLANGE	$5.49	$4.28	10+ In-Stock
19	95817-08035-00 (replaces part # 90105-08659-00)	BOLT, FLANGE	$10.49	$8.18	10+ In-Stock
20	90201-08008-00	WASHER, PLATE	$6.49	$5.06	3 In-Stock
21	90387-08081-00 (replaces part # 90387-0814J-00)	COLLAR	$9.49	$7.40	8 In-Stock
22	5BE-14747-00-00	DAMPER, MUFFLER	$11.99	$9.35	3 In-Stock
