2005 Yamaha WR250F Headlight OEM Parts Diagram

Submodel WR250F - WR250FT - 2005

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

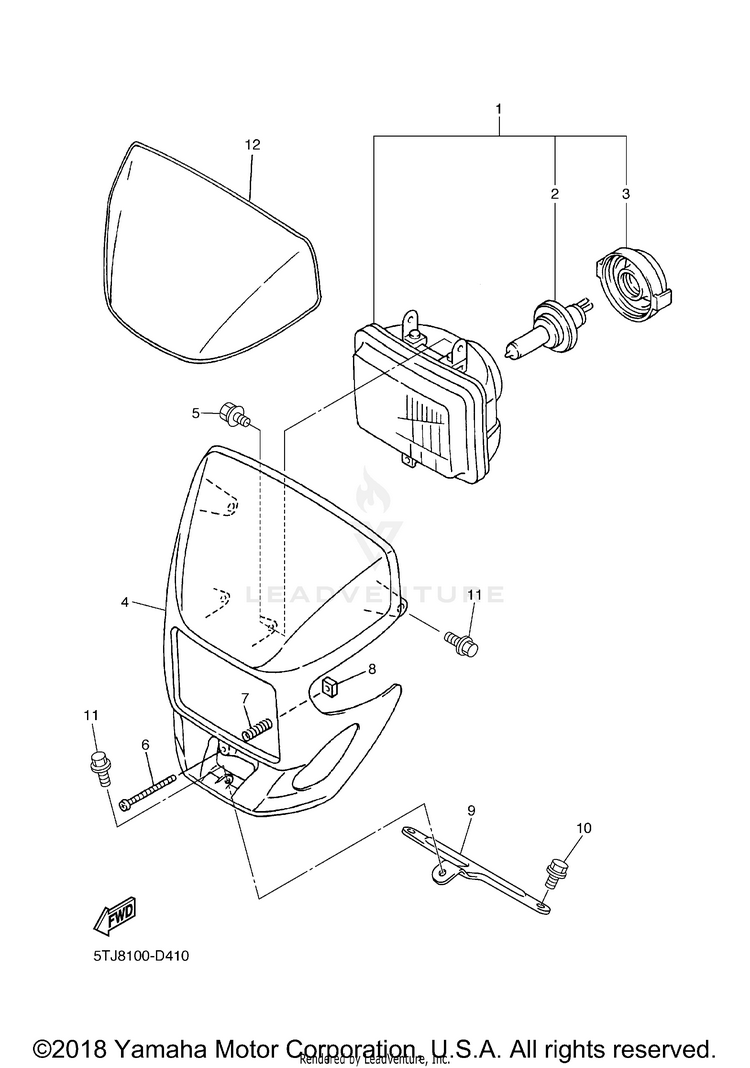

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15BF-84310-01-00HEADLIGHT UNIT ASSY$166.99$132.26Usually ships in 7-10 business days
28V0-84314-10-00

(replaces part #
8G9-84314-00-00)

BULB, HEADLIGHT (12V-60/55W) | (H4) HALOGEN$75.99$60.93Usually ships in 7-10 business days
35PX-84397-00-00

(replaces part #
5BF-84397-00-00)

COVER, SOCKET$43.99$36.072 In-Stock
45BF-84330-01-00BODY ASSY$87.99$68.634 In-Stock
555U-84337-00-00BOLT, SPECIAL$8.49$7.64Usually ships in 7-10 business days
65BF-8433E-00-00SCREW, ADJUSTING$8.49$6.6210+ In-Stock
75BF-84335-00-00SPRING$7.49$6.742 In-Stock
85BF-84334-00-00NUT, ADJUSTING$8.49$6.623 In-Stock
95PH-84319-50-00STAY, HEADLIGHT 2$14.99$12.292 In-Stock
1095027-08012-00BOLT, FLANGE$10.49$8.188 In-Stock
1190105-06064-00

(replaces part #
90105-06055-00)

BOLT, FLANGE$3.45$2.9710+ In-Stock
125BF-2339E-00-00GRAPHIC 1$64.99$50.693 In-Stock
