2005 Yamaha WR250F Shift Shaft OEM Parts Diagram

Submodel WR250F - WR250FT - 2005

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

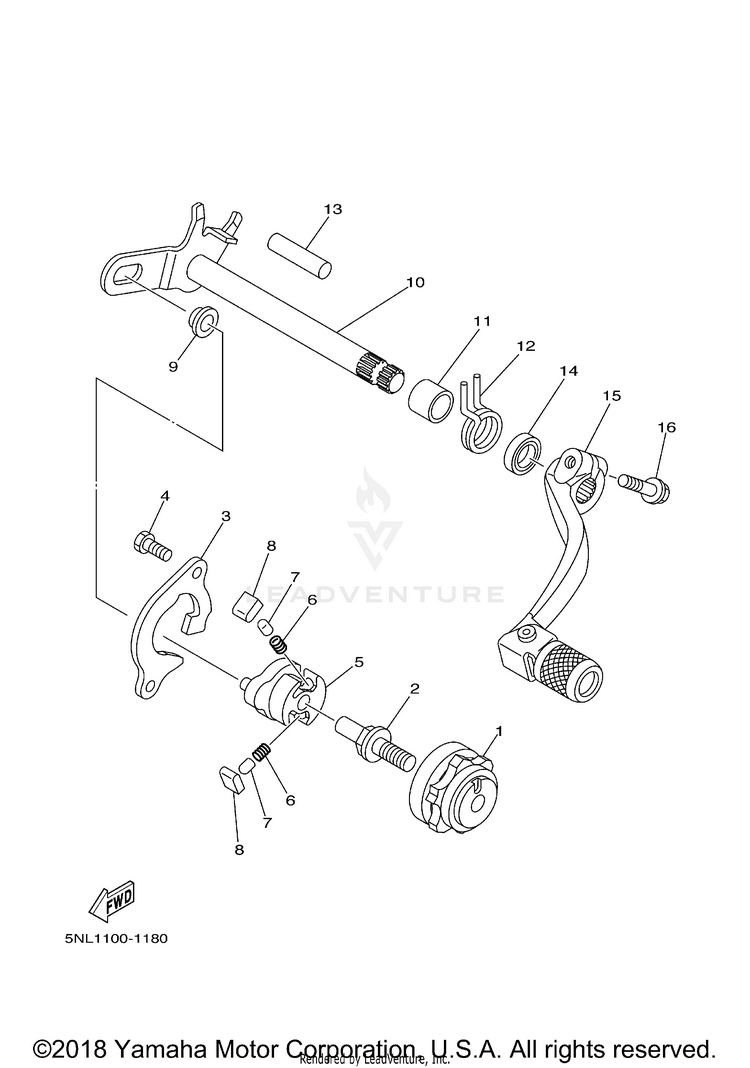

SHIFT SHAFT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14EW-18185-00-00SEGMENT$118.99$92.817 In-Stock
23XJ-18173-10-00PIN, SHIFT$21.99$17.155 In-Stock
35BE-18172-00-00GUIDE, SHIFT$26.99$21.052 In-Stock
490101-06042-00

(replaces part #
90101-06034-00)

BOLT$6.49$5.0610+ In-Stock
55LP-18122-01-00LEVER, SHIFT 2$92.99$72.533 In-Stock
690501-052G5-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
73XJ-18184-00-00PIN, PAWL$16.49$12.8610+ In-Stock
83XJ-18182-00-00PAWL, SHIFTER$16.49$12.8610+ In-Stock
93XJ-18178-00-00ROLLER, SHIFT LEVER$14.49$11.3010+ In-Stock
105UL-18101-00-00SHIFT SHAFT ASSY$100.99$78.772 In-Stock
1190387-12033-00

(replaces part #
90387-124F4-00)

COLLAR$8.49$6.627 In-Stock
1290508-291A8-00SPRING, TORSION$10.49$8.1810+ In-Stock
1393608-33002-00PIN, DOWEL$17.49$13.649 In-Stock
1493102-12224-00OIL SEAL$11.49$8.9610+ In-Stock
AFTERMARKET ALTERNATIVE
$3.99$2.9910+ In-Stock
155UL-18110-00-00SHIFT PEDAL ASSY$120.99$94.373 In-Stock
1695027-06020-00BOLT, FLANGE-$2.8110+ In-Stock
