2005 Yamaha WR250F Front Master Cylinder OEM Parts Diagram

Submodel WR250F - WR250FT - 2005

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

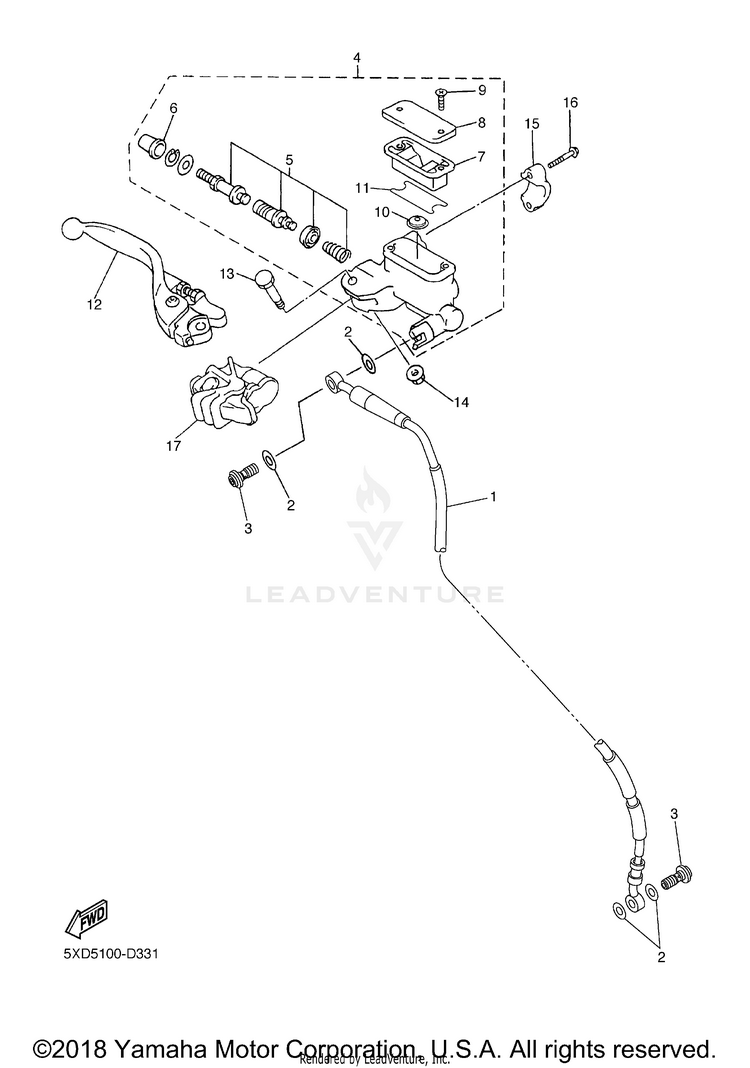

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15TJ-25872-80-00HOSE, BRAKE 1$251.99$196.55Usually ships in 7-10 business days
290201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
390401-10172-00BOLT, UNION$6.49$5.0610+ In-Stock
45XE-W2587-01-00

(replaces part #
5XE-W2587-00-00)

MASTER CYLINDER SUB$200.99$156.779 In-Stock
55NY-W0041-01-00

(replaces part #
5NY-W0041-00-00)

CYLINDER KIT, MASTER$60.99$47.579 In-Stock
AFTERMARKET ALTERNATIVE
$29.80$28.3110+ In-Stock
65NY-25868-00-00BOOT, MASTER CYLINDER$9.49$7.404 In-Stock
75XE-25854-00-00DIAPHRAGM, RESERVOIR$16.49$12.8610+ In-Stock
85MV-25852-01-00CAP, RESERVOIR$14.49$11.303 In-Stock
998707-04012-00

(replaces part #
98706-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
105CG-25715-00-00SEPARATOR ASSY$14.49$11.305 In-Stock
115XE-25853-00-00FLOAT, RESERVOIR$8.49$6.624 In-Stock
125MV-83922-00-00LEVER 2$56.99$44.456 In-Stock
135MV-2589F-00-00BOLT, LEVER$7.49$5.8410+ In-Stock
1495780-06500-00

(replaces part #
95701-06500-00)

NUT, FLANGE$2.95$2.5410+ In-Stock
155MV-25867-00-00BRACKET, MASTER CYLINDER$22.99$17.934 In-Stock
165MV-25833-00-00BOLT, FITTING$7.49$5.846 In-Stock
175NY-26372-00-00COVER, HANDLE LEVER 1$22.99$17.9310+ In-Stock
