CYLINDER HEAD

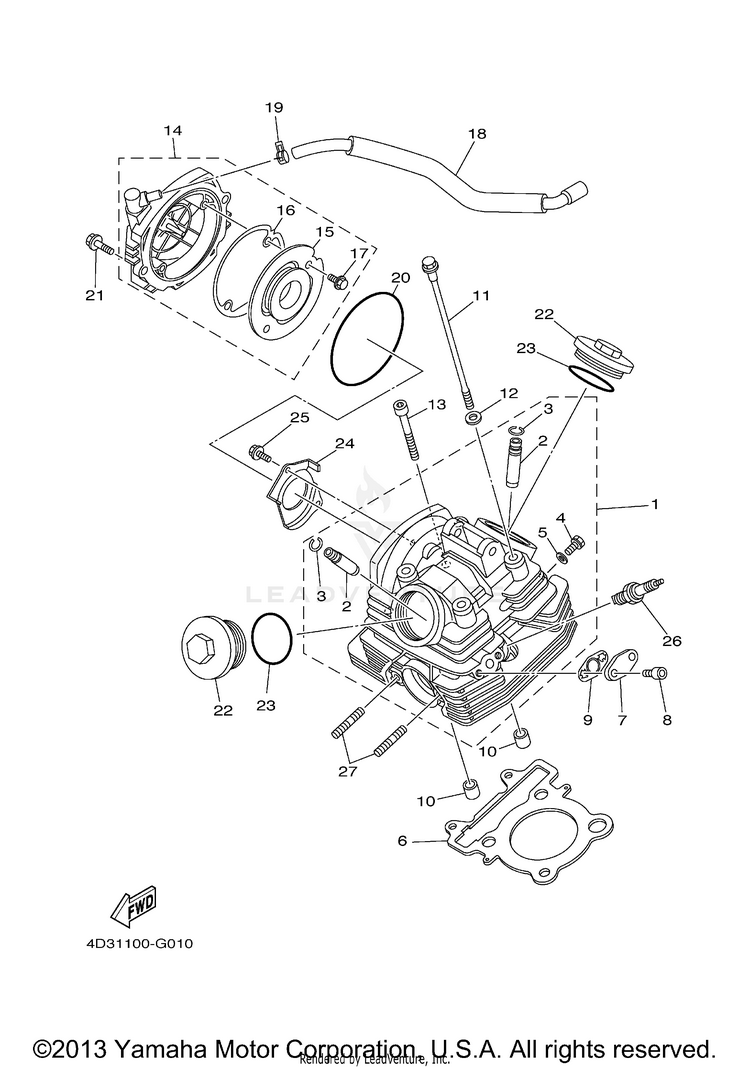

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13C5-11102-00-00CYLINDER HEAD ASSY$512.99$414.86Usually ships in 7-10 business days
25H0-11133-11-00GUIDE, INTAKE VALVE$74.99$58.492 In-Stock
393440-10085-00CIRCLIP$9.49$7.4010+ In-Stock
490153-06002-00SCREW, HEXAGON$9.49$7.405 In-Stock
590430-06014-00GASKET$8.99$7.0110+ In-Stock
65XT-11181-00-00GASKET, CYLINDER HEAD 1$34.99$27.2910+ In-Stock
74D3-1112F-00-00PLATE 2$17.99$14.033 In-Stock
891312-06016-00BOLT, HEXAGON SOCKET HEAD$6.49$5.0610+ In-Stock
95XT-14815-00-00GASKET$5.99$4.672 In-Stock
1099530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
1190105-08160-00BOLT, FLANGE$8.49$6.6210+ In-Stock
1290201-080L7-00

(replaces part #
90201-08609-00)

WASHER, PLATE$4.05$3.4810+ In-Stock
1391317-08045-00

(replaces part #
91312-08045-00)

BOLT, HEX. SOCKET HEAD$9.49$7.405 In-Stock
144D3-11190-00-00COVER, CYLINDER HEAD 1$102.99$80.33Usually ships in 7-10 business days
155XT-11165-00-00PLATE, BREATHER$15.49$12.70Usually ships in 7-10 business days
164D3-11196-00-00GASKET, CYLINDER HEAD SIDE$7.49$5.844 In-Stock
1795022-06010-00

(replaces part #
90105-06126-00)

BOLT, FLANGE$6.49$5.067 In-Stock
184D3-11166-00-00PIPE, BREATHER 1$31.99$24.952 In-Stock
1990467-11044-00

(replaces part #
90467-12053-00)

CLIP$9.49$7.4010+ In-Stock
2093211-05471-00O-RING$16.49$12.8610+ In-Stock
2195022-06020-00BOLT, FLANGE$3.90$3.3510+ In-Stock
224D3-11186-00-00COVER, CYLINDER HEAD SIDE 2$35.99$28.07
2393210-54001-00O-RING$8.49$6.628 In-Stock
245XT-1111F-00-00PLATE$21.99$18.03Usually ships in 7-10 business days
2595022-06012-00

(replaces part #
90105-06078-00)

BOLT, FLANGE$3.55$3.0510+ In-Stock
26DR7-EA000-00-00

(replaces part #
NGK-DR7EA-00-00)

PLUG, SPARK (NGK DR7EA) | WITH RESISTER-$4.4310+ In-Stock
2790116-08023-00BOLT, STUD$9.49$7.408 In-Stock
