2009 Yamaha RAPTOR 250 Graphics OEM Parts Diagram

Submodel RAPTOR 250 - YFM25RYL - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GRAPHICS

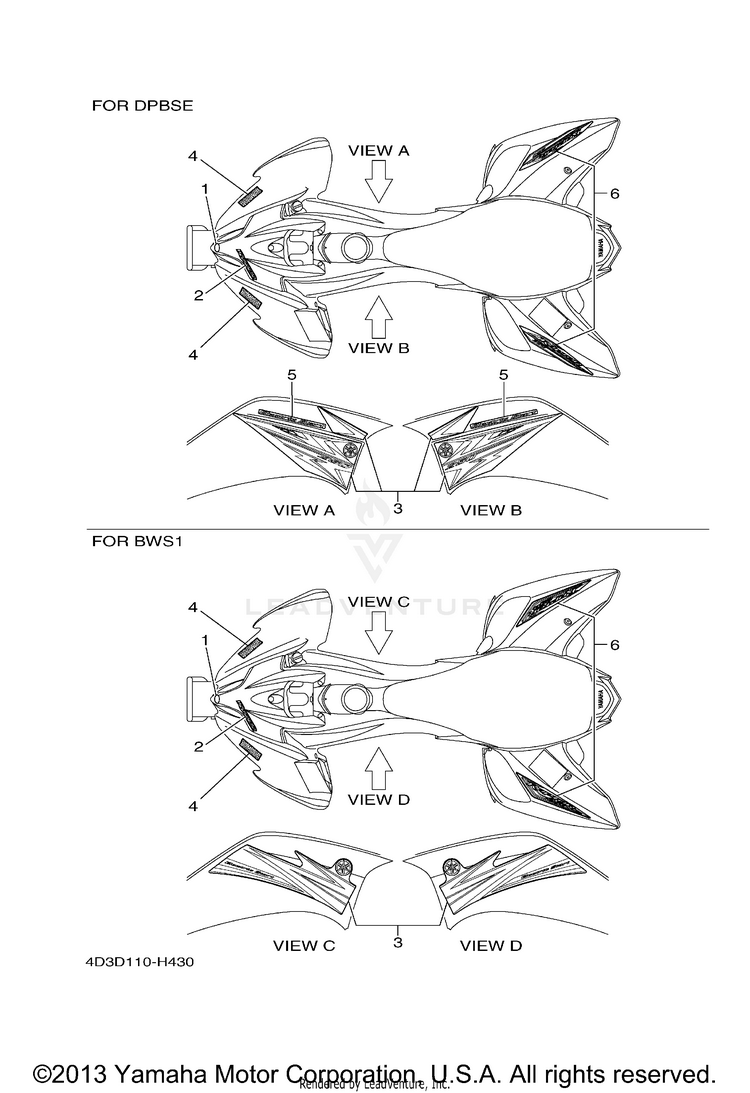

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-4D3-21570-30-00GRAPHIC SET, FRONT FENDER | UR FOR BWS1$76.32$59.53Usually ships in 7-10 business days
-4D3-21565-50-00EMBLEM, 2 | UR FOR BWS1$2.20$1.98Usually ships in 7-10 business days
-4D3-2165A-40-00GRAPHIC SET, REAR FENDER | UR FOR BWS1$22.99$18.85Usually ships in 7-10 business days
-3GD-2153E-31-00

(replaces part #
3GD-2153E-30-00)

EMBLEM, YAMAHA | UR FOR BWS1$4.50$3.8710+ In-Stock
14KN-2836B-11-00

(replaces part #
4KN-2836B-10-00)

TUNING FORK MARK$21.99$17.1510+ In-Stock
24D3-21565-00-00EMBLEM, 2 | UR FOR DPBSE$5.99$5.39Usually ships in 7-10 business days
34D3-21570-29-00

(replaces part #
4D3-21570-20-00)

GRAPHIC, FRONT FENDE | UR FOR DPBSE$48.99$40.17Not Shipping
43GD-2153E-01-00

(replaces part #
3GD-2153E-00-00)

EMBLEM, YAMAHA | UR FOR DPBSE$8.49$6.6210+ In-Stock
54D3-2152A-10-00EMBLEM 3 | FOR DPBSE$3.30$2.97Not Shipping
64D3-2165A-20-00GRAPHIC SET, REAR FENDER | UR FOR DPBSE$31.99$26.23Usually ships in 7-10 business days
