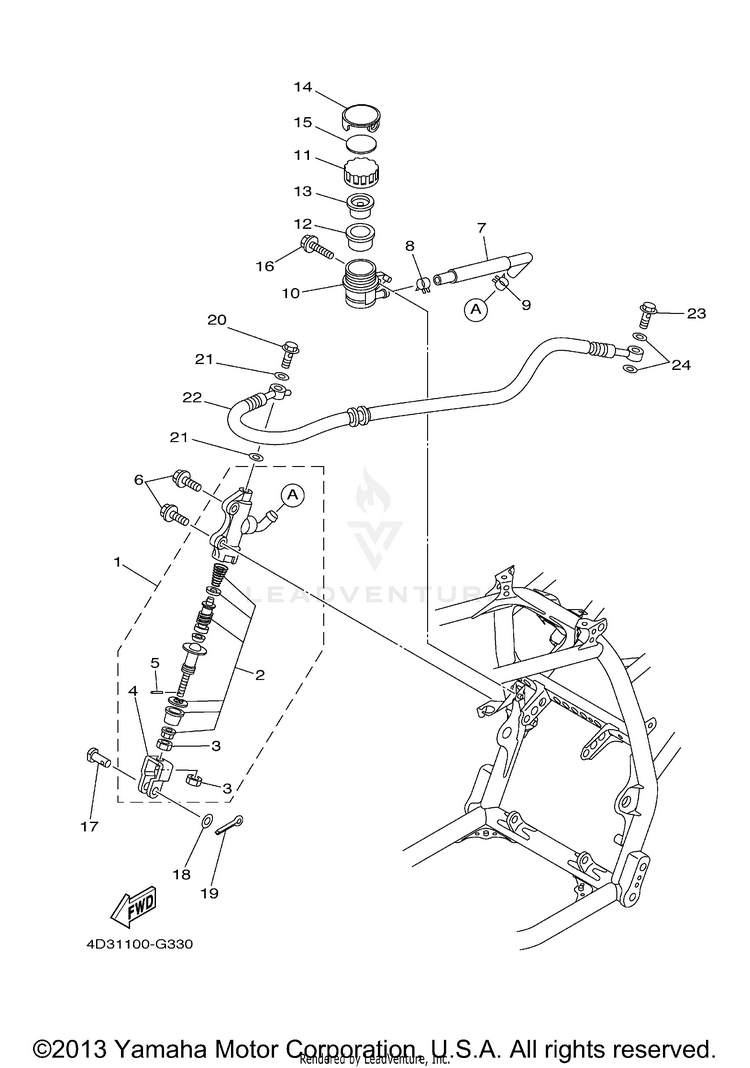

REAR MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15TG-2580E-20-00REAR MASTER CYLINDER ASSY$172.99$134.934 In-Stock
25TG-W0042-50-00CYLINDER KIT, MASTER$78.99$61.613 In-Stock
395317-08700-00

(replaces part #
4SS-27218-00-00)

NUT$10.49$8.185 In-Stock
42YK-27222-00-00JOINT$23.99$18.717 In-Stock
53KW-27234-00-00PIN, BRAKE ROD$8.49$6.622 In-Stock
695022-08025-00BOLT, FLANGE$9.49$7.403 In-Stock
74D3-25895-00-00HOSE, RESERVOIR$26.99$21.051 In-Stock
890467-11044-00CLIP$9.49$7.4010+ In-Stock
990467-11044-00CLIP$9.49$7.4010+ In-Stock
105TG-25894-00-00TANK, RESERVOIR$24.99$19.492 In-Stock
113XP-25852-50-00CAP, RESERVOIR$24.99$19.494 In-Stock
122VN-25854-00-00DIAPHRAGM, RESERVOIR$26.99$21.054 In-Stock
132VN-25855-00-00BUSH, DIAPHRAGM$11.99$9.3510+ In-Stock
144D3-25888-00-00COVER, RESERVOIR TANK$7.99$6.23Not Shipping
154D3-27491-00-00PROTECTOR$4.40$3.96Usually ships in 7-10 business days
1690109-06240-00BOLT$6.49$5.063 In-Stock
1790240-08005-00PIN, CLEVIS$9.49$7.407 In-Stock
1890201-08066-00WASHER, PLATE$9.49$7.406 In-Stock
1991490-16020-00

(replaces part #
91401-16012-00)

PIN, COTTER$6.99$5.456 In-Stock
2090401-10015-00BOLT, UNION$12.49$9.7410+ In-Stock
2190201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
224D3-25874-00-00HOSE, BRAKE$56.99$44.451 In-Stock
2390401-10015-00BOLT, UNION$12.49$9.7410+ In-Stock
2490201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
