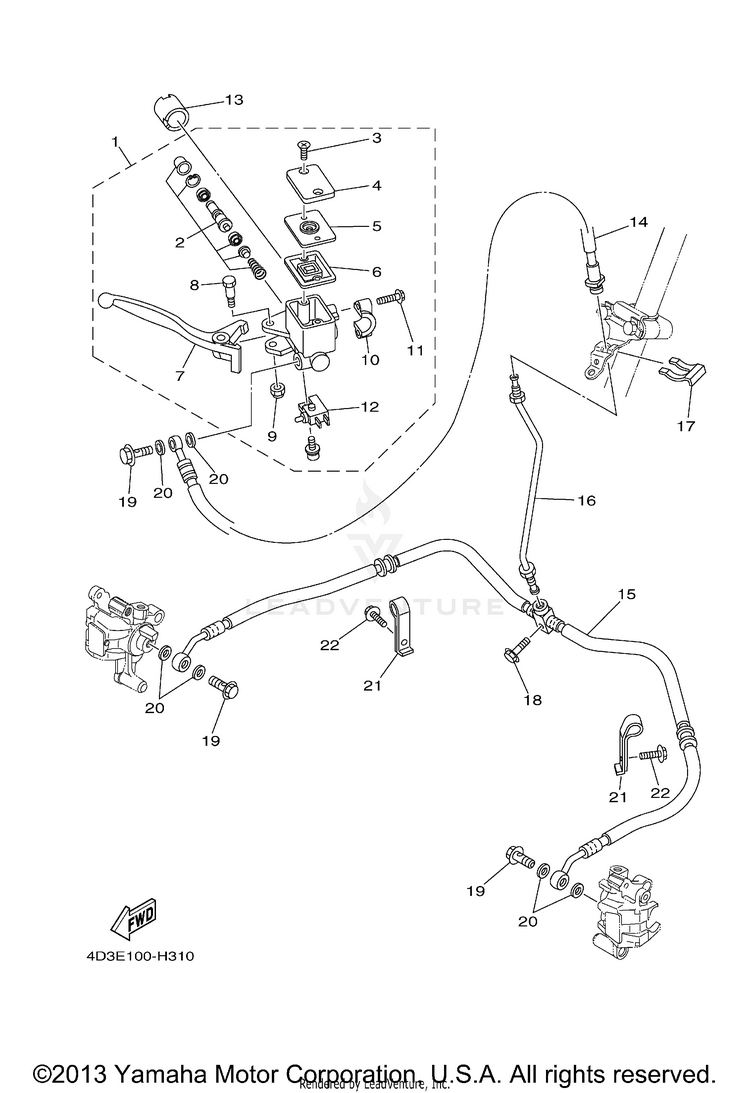

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14D3-2583T-02-00

(replaces part #
4D3-2583T-00-00)

MASTER CYLINDER ASSY$276.99$219.62Usually ships in 7-10 business days
25HH-W0041-00-00

(replaces part #
5D3-W0041-00-00)

CYLINDER KIT, MASTER$45.99$35.878 In-Stock
33D8-2589H-10-00

(replaces part #
4NK-2589H-00-00)

SCREW$8.49$6.6210+ In-Stock
45YU-25852-00-00CAP, RESERVOIR$39.99$31.191 In-Stock
53B4-2585B-00-00PLATE, DIAPHRAGM$11.99$9.353 In-Stock
64TT-25854-00-00DIAPHRAGM, RESERVOIR$19.99$15.593 In-Stock
74D3-83922-00-00LEVER 2$52.99$41.33Usually ships in 7-10 business days
83B4-2589F-00-00BOLT, LEVER$14.49$11.301 In-Stock
995604-06100-00NUT, U$9.49$7.403 In-Stock
105MV-25867-00-00BRACKET, MASTER CYLINDER$22.99$17.934 In-Stock
115MV-25833-00-00BOLT, FITTING$7.49$5.846 In-Stock
125D3-83980-00-00FRONT STOP SWITCH ASSY$78.99$61.61Usually ships in 7-10 business days
131UY-26259-00-00COLLAR$21.99$17.152 In-Stock
144D3-25872-00-00HOSE, BRAKE 1$22.99$18.85Usually ships in 7-10 business days
154D3-25873-00-00HOSE, BRAKE 2$146.99$114.65Usually ships in 7-10 business days
164D3-25871-00-00PIPE, BRAKE$11.99$9.83Usually ships in 7-10 business days
172GU-25866-00-00CIRCLIP$10.99$8.573 In-Stock
1895817-06025-00

(replaces part #
95822-06025-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
1990401-10015-00BOLT, UNION$12.49$9.7410+ In-Stock
2090201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
214D3-25886-10-00HOLDER, BRAKE HOSE$6.49$5.84Usually ships in 7-10 business days
2295817-06016-00

(replaces part #
95802-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
