2009 Yamaha V-Max Air Induction System OEM Parts Diagram

Submodel V MAX - VMX17YCB - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

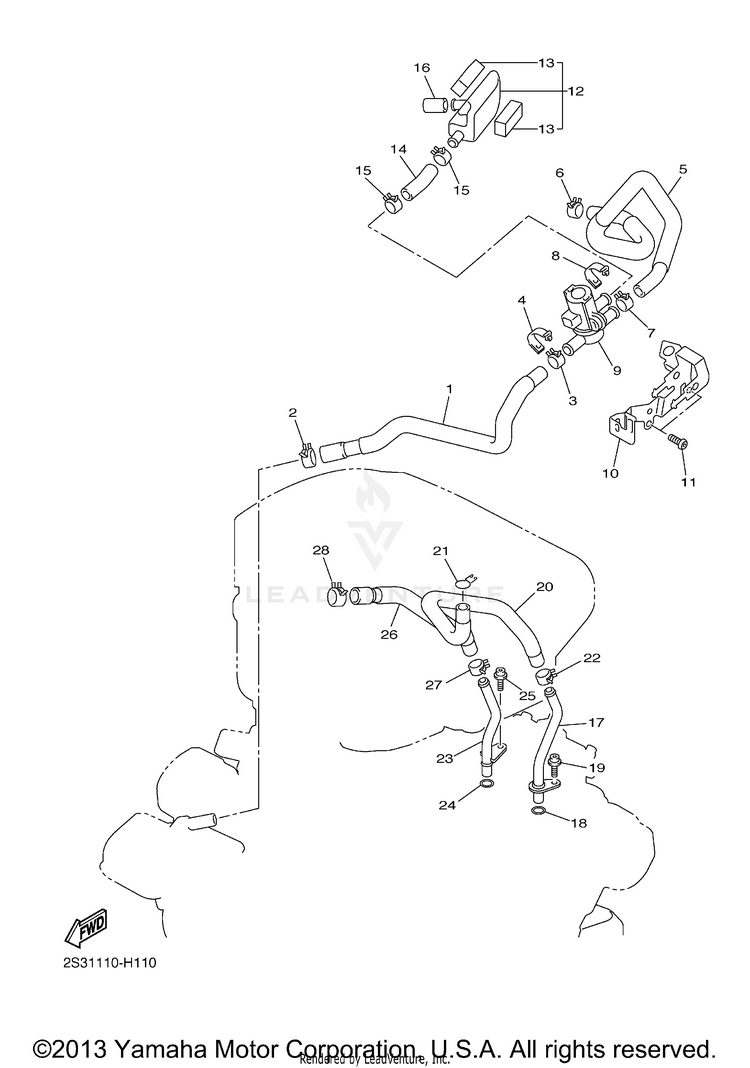

AIR INDUCTION SYSTEM

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S3-14881-00-00HOSE, BEND 1$56.99$44.45Usually ships in 7-10 business days
290467-19051-00

(replaces part #
90467-19065-00)

CLIP$3.50$3.15Usually ships in 7-10 business days
390467-17128-00CLIP$9.49$7.4010+ In-Stock
45JW-14723-00-00COVER 1$18.99$15.57Usually ships in 7-10 business days
52S3-14882-00-00HOSE, BEND 2$72.99$56.93Usually ships in 7-10 business days
690467-19051-00

(replaces part #
90467-19065-00)

CLIP$3.50$3.15Usually ships in 7-10 business days
790467-17128-00CLIP$9.49$7.4010+ In-Stock
85JW-14723-00-00COVER 1$18.99$15.57Usually ships in 7-10 business days
92S3-14840-00-00AIR CUT VALVE ASSY$200.99$156.77Usually ships in 7-10 business days
102S3-14834-00-00STAY$46.99$38.53Usually ships in 7-10 business days
1192014-06014-00

(replaces part #
90111-06054-00)

BOLT, BUTTON HEAD$4.05$3.486 In-Stock
122S3-13581-00-00CHAMBER, AIR$32.99$27.05Usually ships in 7-10 business days
132S3-14425-00-00DAMPER 1$1.20$1.08Usually ships in 7-10 business days
1490445-18009-00HOSE$3.65$3.28Usually ships in 7-10 business days
1590467-17128-00CLIP$9.49$7.4010+ In-Stock
1690445-18010-00HOSE$2.75$2.48Usually ships in 7-10 business days
172S3-11116-00-00JOINT, BREATHER$45.99$37.71Usually ships in 7-10 business days
1893210-12790-00O-RING$8.49$6.628 In-Stock
1990110-06245-00BOLT, HEXAGON SOCKET HEAD$9.49$7.408 In-Stock
202S3-11166-00-00PIPE, BREATHER 1$59.99$46.79Usually ships in 7-10 business days
2190467-180A1-00CLIP$9.49$7.401 In-Stock
2290467-16009-00CLIP$6.49$5.84Usually ships in 7-10 business days
232S3-1111J-00-00PIPE 1$46.99$38.53Usually ships in 7-10 business days
2493210-14579-00O-RING$7.99$6.238 In-Stock
2590110-06245-00BOLT, HEXAGON SOCKET HEAD$9.49$7.408 In-Stock
262S3-1116J-00-00PIPE 6$35.99$29.51Usually ships in 7-10 business days
2790467-21068-00CLIP$8.49$7.64Usually ships in 7-10 business days
2890467-23067-00

(replaces part #
90467-23109-00)

CLIP$8.49$6.623 In-Stock
