2009 Yamaha V-Max Starter Clutch OEM Parts Diagram

Submodel V MAX - VMX17YCB - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER CLUTCH

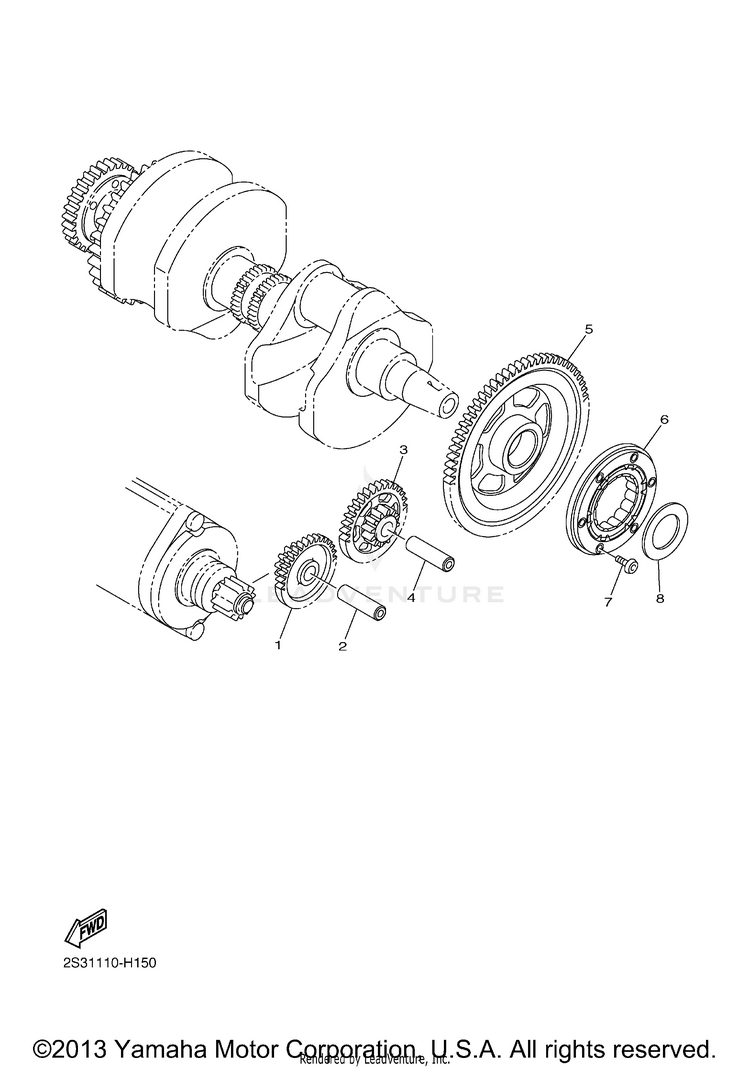

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S3-15514-00-00GEAR 2$82.99$64.73Usually ships in 7-10 business days
226H-15521-00-00

(replaces part #
3LD-15521-00-00)

SHAFT 1$33.99$27.87Usually ships in 7-10 business days
32S3-15650-00-00IDLE GEAR ASSY$142.99$113.00Usually ships in 7-10 business days
426H-15521-00-00

(replaces part #
3LD-15521-00-00)

SHAFT 1$33.99$27.87Usually ships in 7-10 business days
52S3-15517-00-00GEAR, IDLER 2$160.99$127.18Usually ships in 7-10 business days
64NK-15590-00-00STARTER ONE-WAY ASSY$316.99$247.25Usually ships in 7-10 business days
790149-08042-00

(replaces part #
90149-08038-00)

SCREW$3.50$3.015 In-Stock
890201-350F3-00WASHER, PLATE$11.49$9.42Usually ships in 7-10 business days
