2009 Yamaha V-Star XVS1300A Headlight OEM Parts Diagram

Submodel V STAR 1300 - XVS13AYCW - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

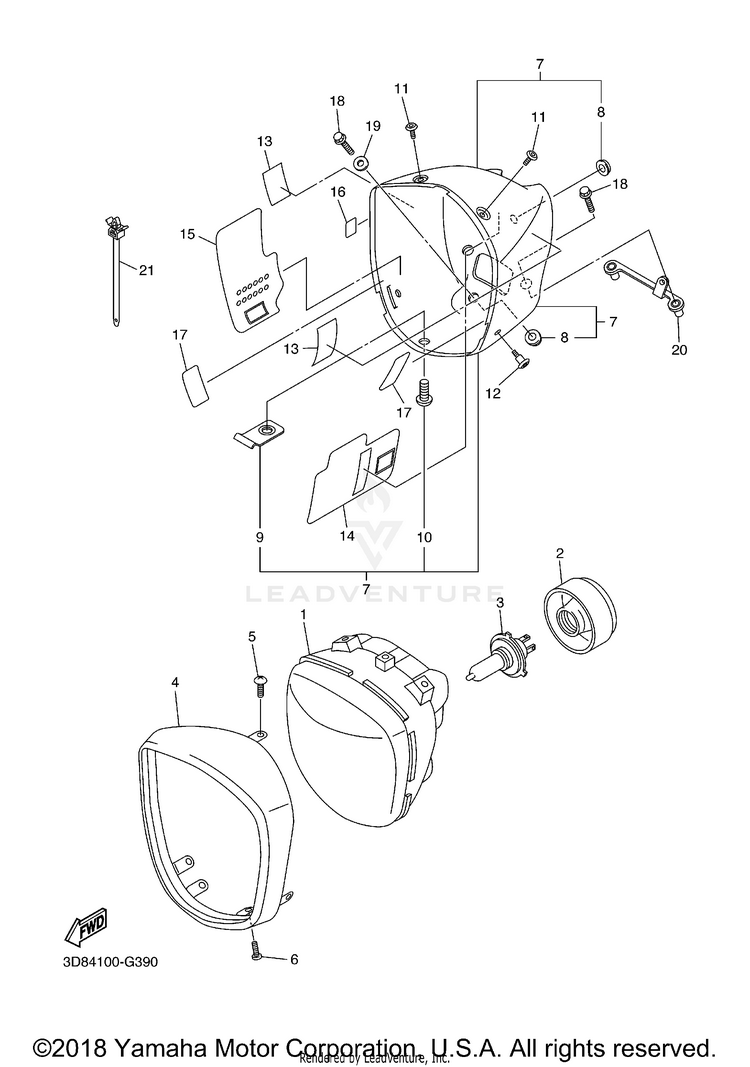

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D8-84320-00-00LENS ASSY$437.99$360.69Usually ships in 7-10 business days
25JW-84397-00-00COVER, SOCKET$32.99$27.05Usually ships in 7-10 business days
38V0-84314-10-00

(replaces part #
5V2-84314-00-XX)

BULB, HEADLIGHT (12V-60/55W) | (H4) HALOGEN$75.99$60.93Usually ships in 7-10 business days
43D8-84315-00-00RIM, HEADLIGHT$170.99$133.37Usually ships in 7-10 business days
598517-05012-00

(replaces part #
98502-05012-00)

SCREW, PAN HEAD$5.49$4.283 In-Stock
697780-40112-00

(replaces part #
97702-40612-00)

SCREW, TAPPING$4.30$3.87Usually ships in 7-10 business days
73D8-84330-00-P0BODY ASSY | UR FOR SMX$145.99$116.88Not Shipping
73D8-84330-00-P7BODY ASSY | UR FOR BWC1$138.99$108.41Usually ships in 7-10 business days
842X-84366-00-00DAMPER, HEADLIGHT 1$22.99$18.85Usually ships in 7-10 business days
93D8-8431T-00-00STAY, 2$17.99$14.75Usually ships in 7-10 business days
103D8-84526-00-00SCREW$8.49$7.64Usually ships in 7-10 business days
1190111-05007-00BOLT, HEXAGON SOCKET HEAD$9.49$7.40
1290111-05020-00BOLT, HEX. SOCKET BUTTON$4.60$4.142 In-Stock
133SP-21732-00-00SEAL 1$18.99$15.57Usually ships in 7-10 business days
143D8-8411T-00-00HOLDER, 1$15.49$12.70Usually ships in 7-10 business days
153D8-8411U-00-00HOLDER, 2$16.49$13.52Usually ships in 7-10 business days
163MA-27491-00-00PROTECTOR$9.49$8.54Usually ships in 7-10 business days
173D8-21575-00-00SEAL 1$4.95$4.46Usually ships in 7-10 business days
1895022-06025-00BOLT, FLANGE$1.90$1.6310+ In-Stock
1990387-06175-00COLLAR$9.49$8.54Usually ships in 7-10 business days
203D8-84387-00-00HOLDER$20.99$17.21Usually ships in 7-10 business days
2190464-10112-00

(replaces part #
90464-12036-00)

CLAMP$9.49$7.404 In-Stock
