2009 Yamaha V-Star XVS1300A Oil Pump OEM Parts Diagram

Submodel V STAR 1300 - XVS13AYCW - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

OIL PUMP

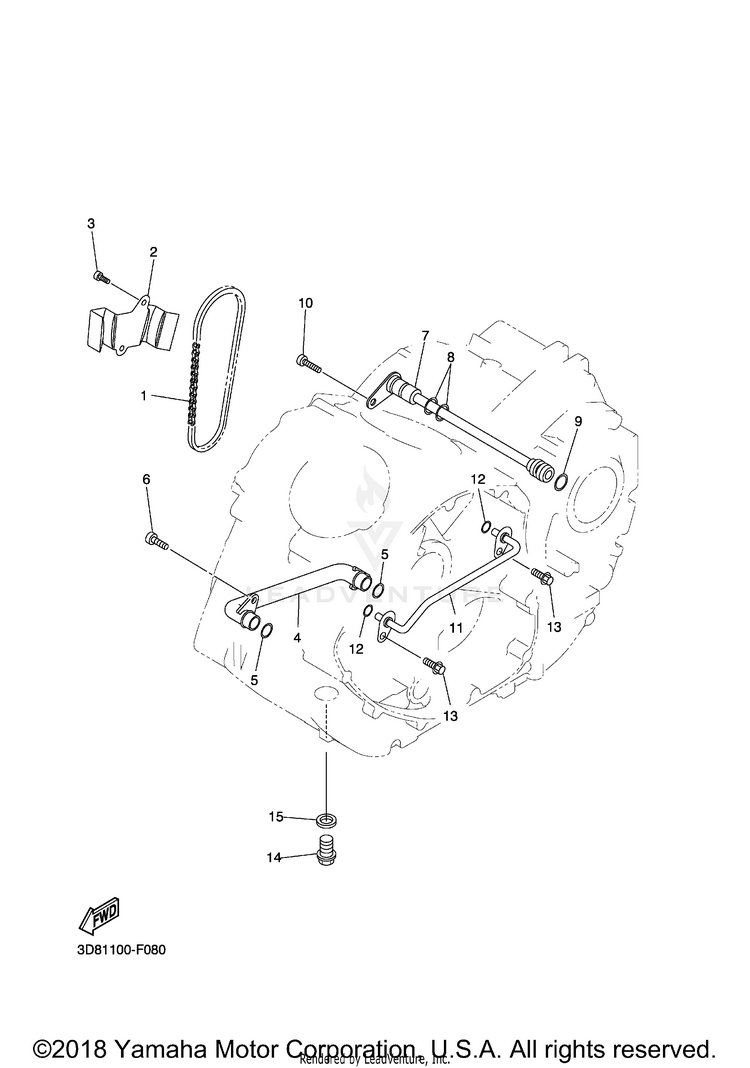

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
194580-25062-00CHAIN (DID25 62L)$12.49$10.48Usually ships in 7-10 business days
23D8-13898-00-00HOLDER$19.49$15.98Usually ships in 7-10 business days
391317-06016-00

(replaces part #
90110-06161-00)

BOLT (4MY)-$1.4210+ In-Stock
43D8-13416-00-00PIPE, OIL 1$48.99$40.17Usually ships in 7-10 business days
593210-14003-00O-RING$9.49$7.4010+ In-Stock
691317-06016-00

(replaces part #
90110-06161-00)

BOLT (4MY)-$1.4210+ In-Stock
73D8-13171-00-00PIPE, DELIVERY 2$77.99$60.83Usually ships in 7-10 business days
893210-09350-00

(replaces part #
93210-09165-00)

O-RING$7.49$5.8410+ In-Stock
993210-07540-00

(replaces part #
93210-06564-00)

O-RING$7.49$5.8410+ In-Stock
1091317-06016-00

(replaces part #
90110-06161-00)

BOLT (4MY)-$1.4210+ In-Stock
113D8-13181-00-00PIPE, DELIVERY 3$25.99$21.31Usually ships in 7-10 business days
1293210-06667-00O-RING$8.49$6.626 In-Stock
1395022-06012-00

(replaces part #
90105-06078-00)

BOLT, FLANGE$3.55$3.0510+ In-Stock
1490340-14132-00PLUG, STRAIGHT SCREW$3.15$2.7110+ In-Stock
15214-11198-01-00GASKET$3.17$2.8910+ In-Stock
