2009 Yamaha V-Star XVS1300A Meter OEM Parts Diagram

Submodel V STAR 1300 - XVS13AYCW - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

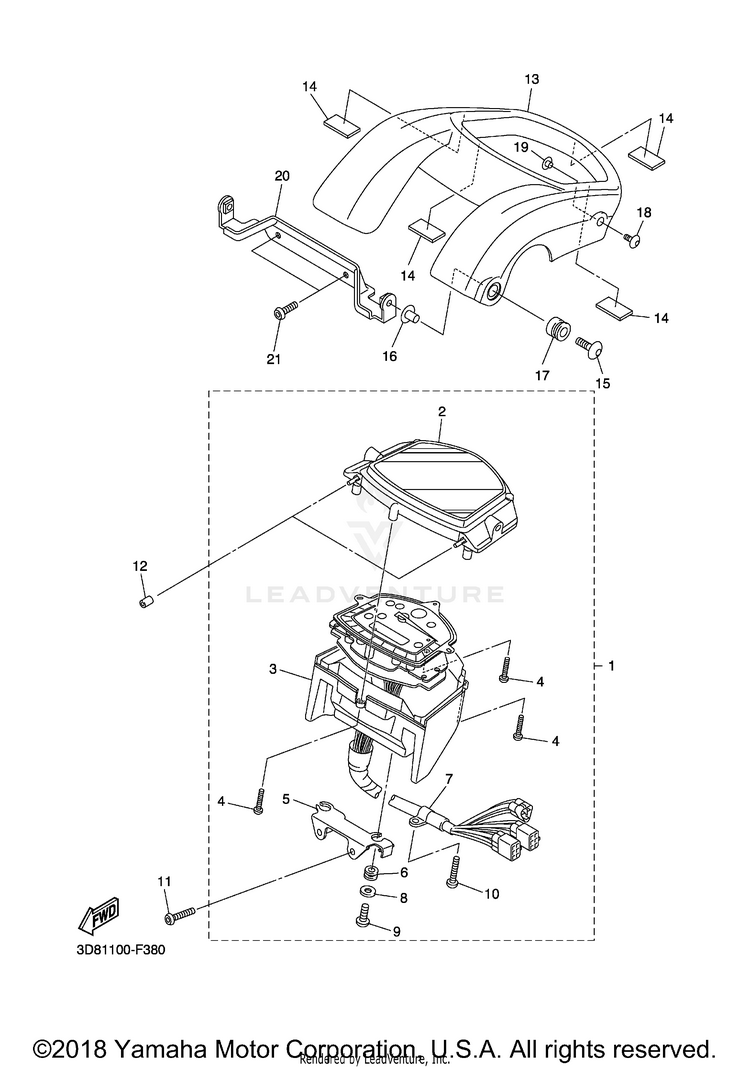

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D8-83500-02-00

(replaces part #
3D8-83500-01-00)

METER ASSY (MPH)$741.99$621.22Usually ships in 7-10 business days
23D8-8353E-00-00CASE, METER UPPER$181.99$143.74Usually ships in 7-10 business days
33D8-83572-00-00CASE, SPEEDOMETER LOWER$43.99$36.07Usually ships in 7-10 business days
497707-30014-00SCREW, TAPPING$0.85$0.76Usually ships in 7-10 business days
53D8-83519-00-00BRACKET, METER$44.99$36.89Usually ships in 7-10 business days
64XV-83513-00-00DAMPER$8.49$6.6210+ In-Stock
73D8-8357E-00-00CLAMP$3.65$3.28Usually ships in 7-10 business days
890201-05033-00

(replaces part #
53Y-83524-00-00)

WASHER, SPECIAL$11.49$8.964 In-Stock
997707-50016-00SCREW, TRUSS HEAD TAPPING$1.85$1.5910+ In-Stock
1097707-40014-00SCREW, TAPPING$8.49$7.64Usually ships in 7-10 business days
1192012-08035-00BOLT, BUTTON HEAD$4.75$4.087 In-Stock
1290445-05004-00HOSE$1.70$1.53Usually ships in 7-10 business days
133D8-83559-01-00

(replaces part #
3D8-83559-00-00)

COVER, METER$86.99$67.85Usually ships in 7-10 business days
143D8-83541-00-00DAMPER$8.49$7.64Usually ships in 7-10 business days
1590110-06202-00BOLT, HEXAGON SOCKET HEAD$8.49$6.6210+ In-Stock
1690387-06162-00COLLAR$10.49$8.60Usually ships in 7-10 business days
1790480-13020-00GROMMET$4.60$4.14Usually ships in 7-10 business days
1890111-05059-00

(replaces part #
90110-05201-00)

BOLT,HEX. SOCKET BUT$2.80$2.7610+ In-Stock
1990387-05035-00COLLAR$8.49$6.62
203D8-8350E-00-00BRACKET$44.99$36.89Usually ships in 7-10 business days
2190111-06062-00BOLT, HEX. SOCKET BUTTON$8.49$7.64Usually ships in 7-10 business days
