2012 Yamaha FJR1300A Front Master Cylinder 2 OEM Parts Diagram

Submodel FJR1300A - FJR13ABCL - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

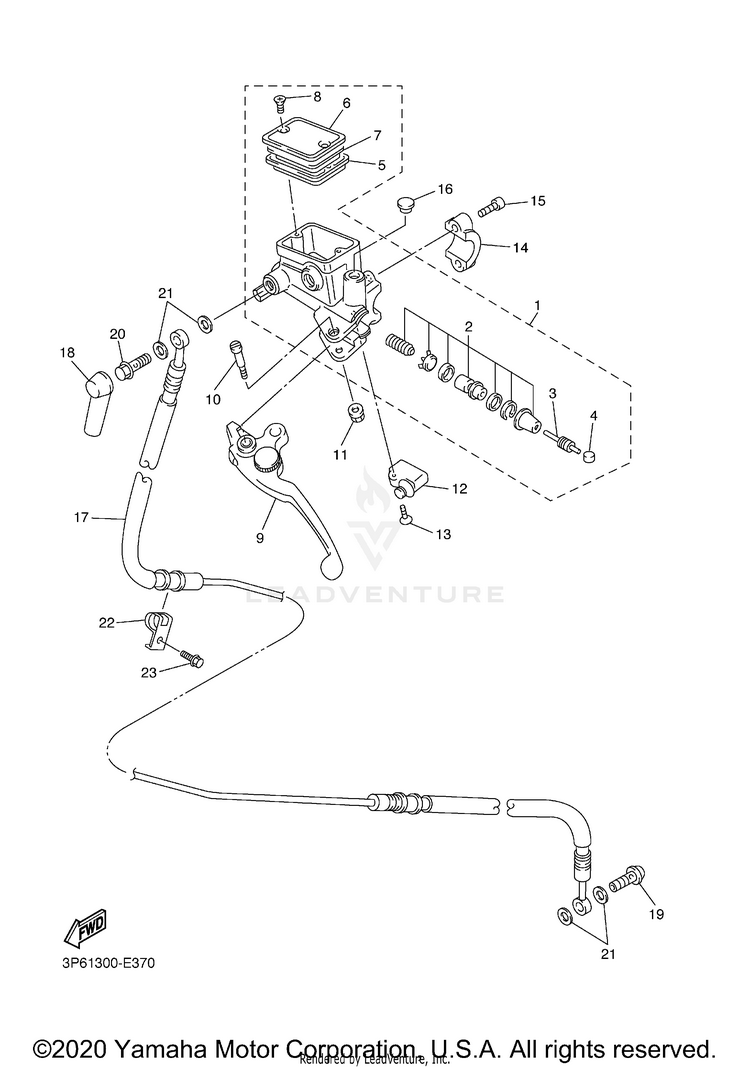

FRONT MASTER CYLINDER 2

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15JW-W2645-01-00MASTER CYLINDER SUB ASSY$397.99$310.43Usually ships in 7-10 business days
25JW-W0099-00-00CYLINDER KIT, MASTER (CLUTCH)$55.99$43.67Usually ships in 7-10 business days
33GM-26464-00-00ROD, PUSH$19.99$16.39Usually ships in 7-10 business days
43GM-26455-00-00BUSH$27.99$21.832 In-Stock
54HM-25854-00-00DIAPHRAGM, RESERVOIR$38.99$31.97Usually ships in 7-10 business days
64HM-25852-01-00CAP, RESERVOIR$19.49$15.98Usually ships in 7-10 business days
73GM-2585B-10-00PLATE, DIAPHRAGM$14.49$11.88Usually ships in 7-10 business days
898707-04012-00

(replaces part #
98706-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
95EA-83912-00-00LEVER 1$104.99$81.89Usually ships in 7-10 business days
103FV-2589F-00-00BOLT, LEVER$17.99$14.751 In-Stock
1195707-06500-00

(replaces part #
95706-06500-00)

NUT, FLANGE$1.00$0.9910+ In-Stock
123GM-83980-00-00FRONT STOP SWITCH ASSY$53.99$42.11Usually ships in 7-10 business days
1398707-04016-00

(replaces part #
98706-04016-00)

SCREW, FLAT HEAD$9.49$7.404 In-Stock
144KG-25867-00-00BRACKET, MASTER CYLINDER$17.99$14.75Usually ships in 7-10 business days
1591317-06020-00

(replaces part #
91316-06020-00)

BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
1690338-09012-00PLUG$10.49$8.186 In-Stock
175VS-26470-00-00HOSE, CLUTCH$278.99$217.61Usually ships in 7-10 business days
184L0-25862-02-00

(replaces part #
4L0-25862-01-00)

BOOT, MASTER CYLINDER-$4.983 In-Stock
1990401-10172-00BOLT, UNION$6.49$5.0610+ In-Stock
2090401-10020-00BOLT, UNION$10.49$8.602 In-Stock
2190201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
225JW-21823-00-00CLAMP, HOSE$12.49$10.24Usually ships in 7-10 business days
2395022-06010-00BOLT, FLANGE$6.49$5.067 In-Stock
