2012 Yamaha FJR1300A Headlight OEM Parts Diagram

Submodel FJR1300A - FJR13ABCL - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

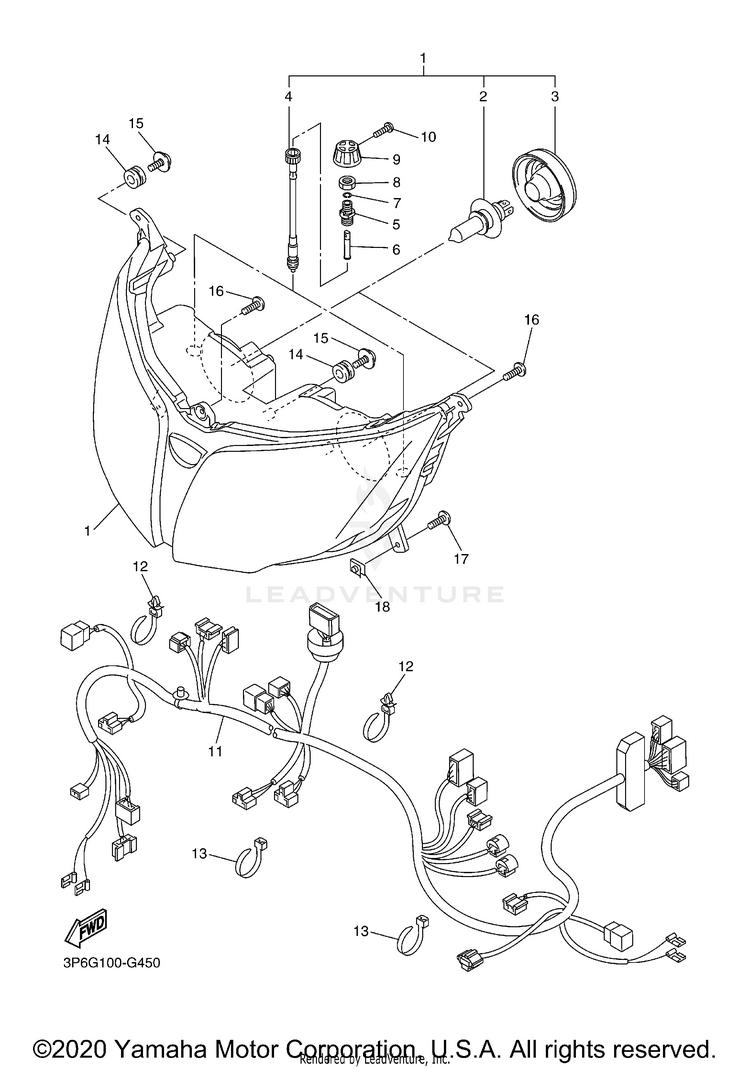

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13P6-8430B-20-00HEADLIGHT SUB ASSY$1,013.99$821.14Usually ships in 7-10 business days
28V0-84314-10-00

(replaces part #
2F9-84314-00-00)

BULB, HEADLIGHT (12V-60/55W) | (H4) HALOGEN$75.99$60.93Usually ships in 7-10 business days
35JW-84397-00-00COVER, SOCKET$32.99$27.05Usually ships in 7-10 business days
43P6-8430N-00-00WIRE ASSY$27.99$22.95Usually ships in 7-10 business days
53P6-8431U-00-00HOLDER$11.99$9.83Usually ships in 7-10 business days
63P6-8431N-00-00ROD$25.99$21.31Usually ships in 7-10 business days
793440-06190-00CIRCLIP$9.49$8.54Usually ships in 7-10 business days
890170-10206-00NUT$3.30$2.8410+ In-Stock
93P6-8432N-00-00KNOB$10.99$8.574 In-Stock
1098507-03010-00

(replaces part #
90157-03007-00)

SCREW, PAN HEAD$3.85$3.318 In-Stock
113P6-84359-30-00CORD, HEADLIGHT$267.99$221.41Usually ships in 7-10 business days
1290464-10112-00

(replaces part #
90464-12036-00)

CLAMP$9.49$7.404 In-Stock
131UA-82591-00-00

(replaces part #
90465-13152-00)

BAND$5.49$4.2810+ In-Stock
144XV-83513-00-00DAMPER$8.49$6.6210+ In-Stock
1590160-05006-00SCREW, ROUND TAPPING$9.49$7.4010+ In-Stock
1697702-50016-00SCREW, TAPPING$2.60$2.249 In-Stock
1790154-05005-00SCREW, BINDING$5.49$4.2810+ In-Stock
1890183-050A6-00NUT, SPRING$2.95$2.547 In-Stock
