2012 Yamaha FJR1300A Front Wheel OEM Parts Diagram

Submodel FJR1300A - FJR13ABCL - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT WHEEL

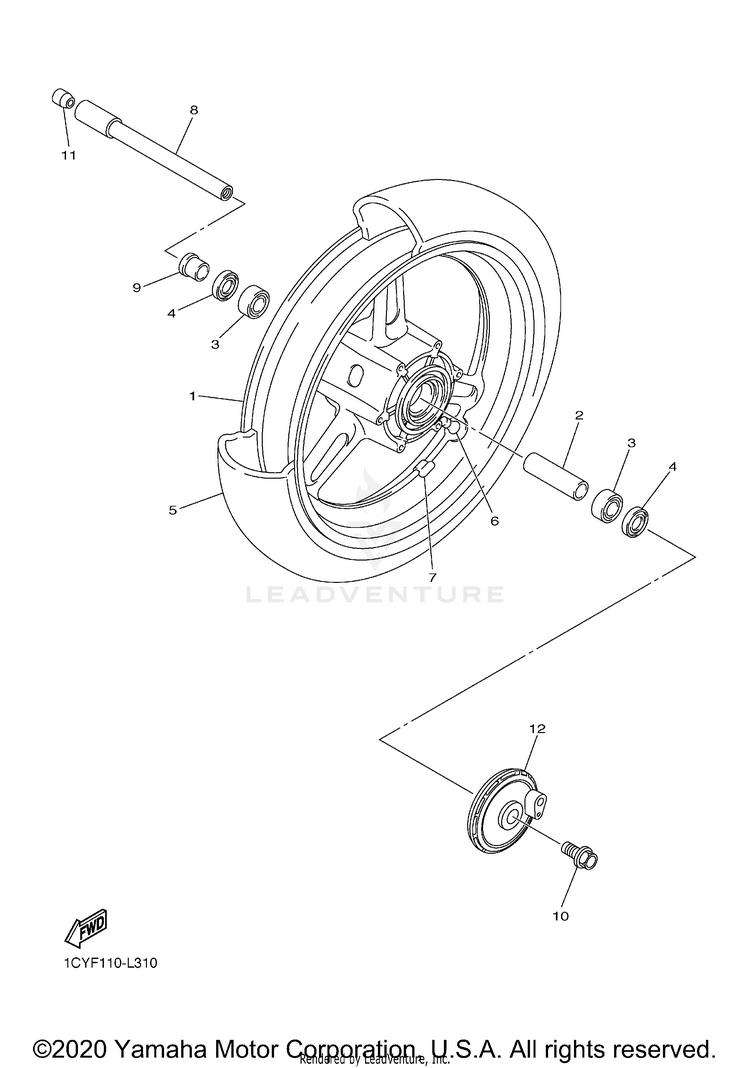

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13P6-25168-01-P0

(replaces part #
3P6-W2516-00-P0)

CAST WHEEL, FRONT | S8$676.99$546.85Usually ships in 7-10 business days
24XV-25117-00-00SPACER, BEARING$38.99$31.97Usually ships in 7-10 business days
393306-00420-00BEARING (B6004)$44.99$35.0910+ In-Stock
493106-28043-00OIL SEAL$16.49$12.8610+ In-Stock
594112-17101-00TIRE (120/70ZR17M/C 58W) | UR BRIDGESTONE$168.99$139.17Usually ships in 7-10 business days
693900-00030-00VALVE, RIM (TR412) | TAIHEIYO$18.49$14.425 In-Stock
75MT-25398-20-00BALANCER, WHEEL (30G) | UN$46.99$38.53Usually ships in 7-10 business days
75MT-25398-00-00BALANCER, WHEEL (10G) | UN$18.99$15.574 In-Stock
75MT-25398-10-00BALANCER, WHEEL (20G) | UN$18.99$15.57Usually ships in 7-10 business days
82C0-25181-00-00AXLE, WHEEL$114.99$89.69Usually ships in 7-10 business days
990387-22016-00COLLAR$42.99$35.25Usually ships in 7-10 business days
1090105-14002-00BOLT, FLANGE$18.49$15.16Usually ships in 7-10 business days
115PW-25188-00-00CAP$7.49$6.74Usually ships in 7-10 business days
123P6-2517A-00-00HOUSING, SENSOR FRONT$267.99$212.26Usually ships in 7-10 business days
