OIL PUMP

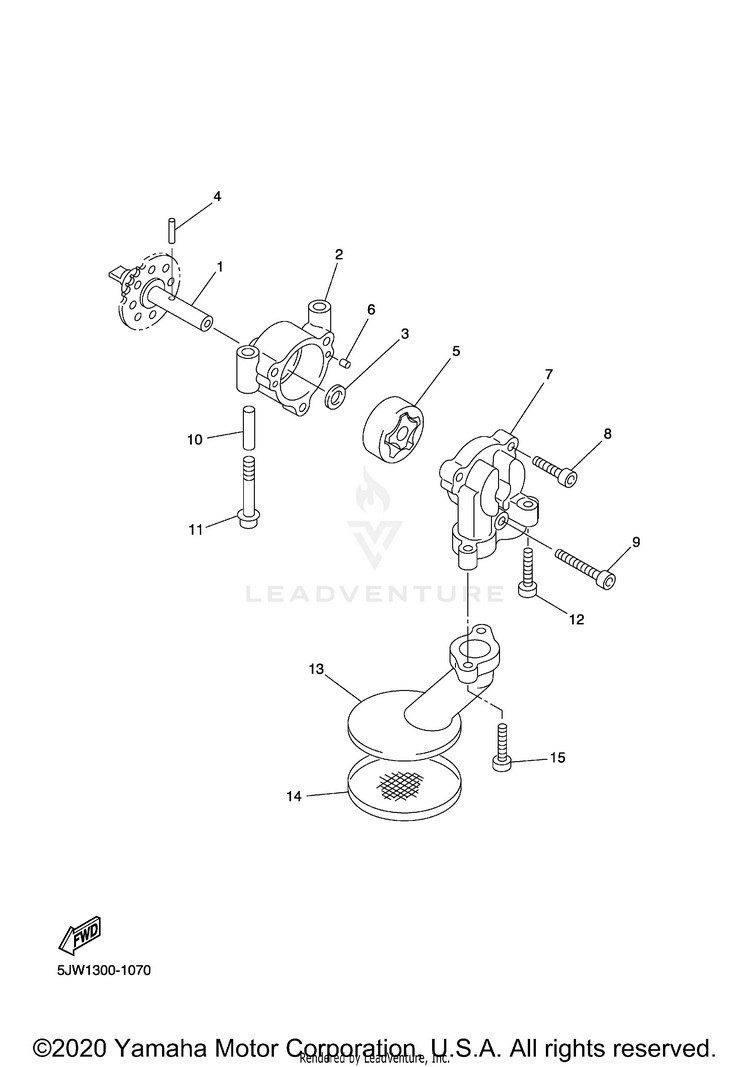

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15JW-13330-00-00PUMP SHAFT ASSY$104.99$81.89Usually ships in 7-10 business days
25JW-13316-00-00COVER, PUMP$66.99$52.25Usually ships in 7-10 business days
390201-113K2-00WASHER, PLATE$10.49$8.60Usually ships in 7-10 business days
493603-17070-00PIN, DOWEL$4.50$3.874 In-Stock
55JW-13310-00-00ROTOR ASSY 1$35.99$29.51Usually ships in 7-10 business days
693603-09106-00PIN, DOWEL$2.75$2.48Usually ships in 7-10 business days
75JW-13336-00-00HOUSING, ROTOR$79.99$62.39Usually ships in 7-10 business days
891317-06025-00

(replaces part #
91312-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
991312-06040-00BOLT, HEXAGON SOCKET HEAD$9.49$7.404 In-Stock
1091808-30031-00PIN, DOWEL$8.49$7.64Usually ships in 7-10 business days
1190110-06166-00

(replaces part #
90110-06167-00)

BOLT, HEXAGON SOCKET HEAD$4.80$4.32Usually ships in 7-10 business days
1291317-06025-00

(replaces part #
90110-06169-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
135JW-13412-00-00HOUSING, STRAINER$59.99$46.79Usually ships in 7-10 business days
145JW-13411-00-00STRAINER, OIL$42.99$35.25Usually ships in 7-10 business days
1591314-06020-00

(replaces part #
90110-06174-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
