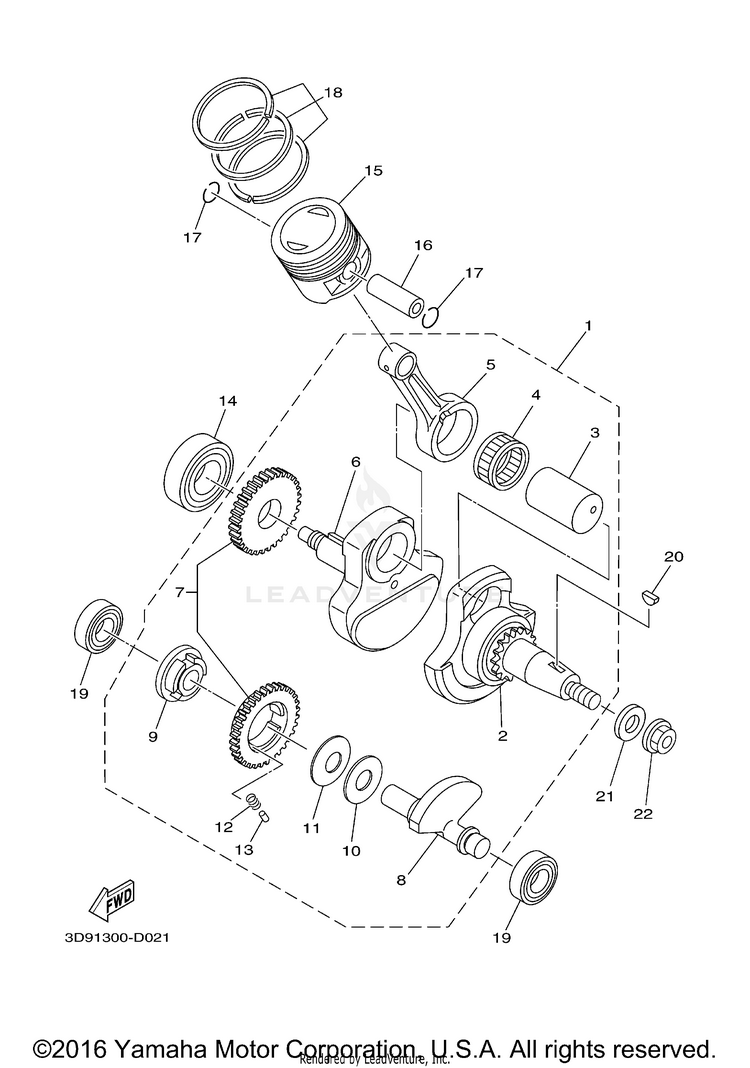

CRANKSHAFT PISTON

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D9-W1140-00-00CRANKSHAFT ASSY$642.99$501.531 In-Stock
23D9-W1141-00-00CRANK SUB ASSY 1$194.99$152.09Usually ships in 7-10 business days
35VL-E1681-00-00PIN, CRANK 1$34.99$28.69Usually ships in 7-10 business days
493310-629Y3-00BEARING$84.99$66.292 In-Stock
52MP-E1651-00-00

(replaces part #
5VL-E1651-00-00)

ROD, CONNECTING$75.99$59.271 In-Stock
65VL-E1422-00-00CRANK 2$73.99$57.71Usually ships in 7-10 business days
75VL-Y1153-20-00GEAR, BALANCE WEIGHT ASSY.$111.99$87.35Usually ships in 7-10 business days
85VL-E1454-10-00WEIGHT 1$76.99$60.05Usually ships in 7-10 business days
95VL-E1496-00-00BOSS, BUFFER$59.99$46.79Usually ships in 7-10 business days
105VL-E1533-00-00PLATE, ABSORBER$4.60$4.14Usually ships in 7-10 business days
1190208-26800-00WASHER, CONICAL SPRING$2.05$1.84Usually ships in 7-10 business days
1290501-16001-00SPRING, COMPRESSION$4.15$3.74Usually ships in 7-10 business days
1393604-08071-00

(replaces part #
93604-08800-00)

PIN, DOWEL$9.49$7.4010+ In-Stock
1493306-205XJ-00BEARING$62.99$49.132 In-Stock
155VL-E1631-10-00

(replaces part #
5VL-E1631-00-00)

PISTON (STD)$76.99$60.054 In-Stock
165VL-E1633-00-00PIN, PISTON$11.99$9.354 In-Stock
1793450-16068-00

(replaces part #
93450-16812-00)

CIRCLIP$8.49$6.6210+ In-Stock
185VL-W1161-00-00

(replaces part #
5VL-Y1161-00-00)

PISTONRING SET$49.99$38.995 In-Stock
1993306-202XN-00BEARING$44.99$35.095 In-Stock
2090280-03017-00KEY, WOODRUFF$8.49$6.8310+ In-Stock
2190201-122H1-00WASHER, PLATE$10.49$8.1810+ In-Stock
2290179-12588-00

(replaces part #
90179-12863-00)

NUT, FLANGE$8.49$6.6210+ In-Stock
