2012 Yamaha RAPTOR 125 Headlight OEM Parts Diagram

Submodel RAPTOR 125 - YFM125RBL - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

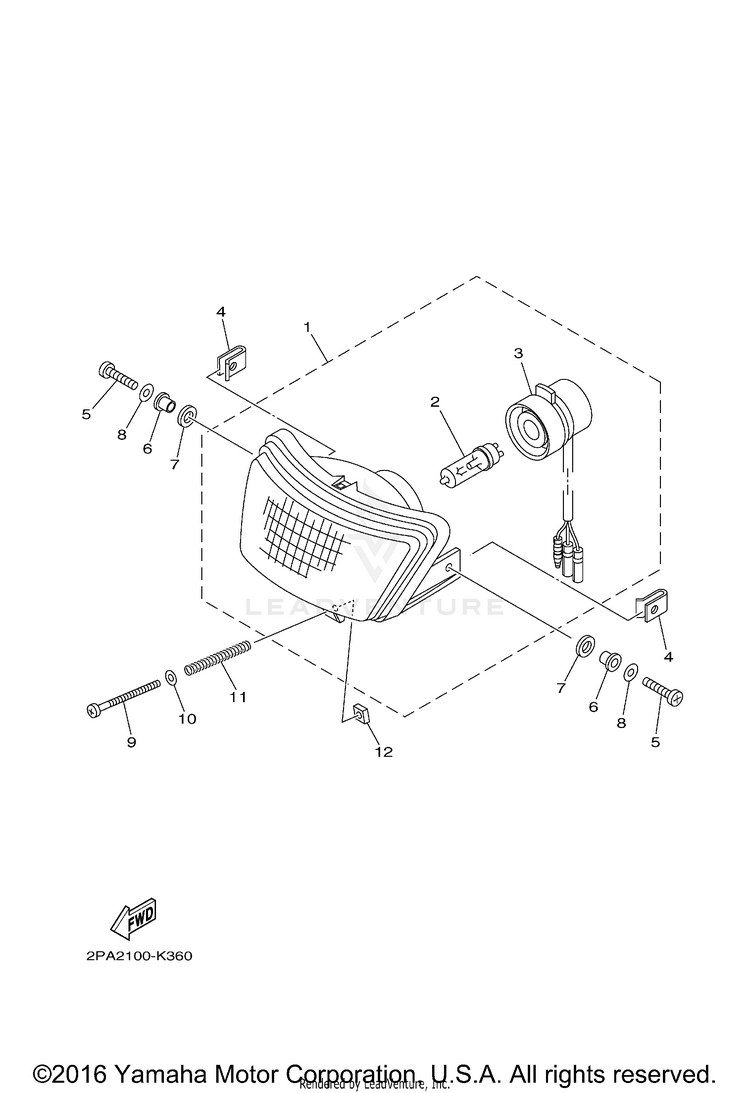

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12PA-84300-00-00HEADLIGHT ASSY$99.99$77.994 In-Stock
25VM-84314-00-00BULB, HEADLIGHT(12V-35/36.5W) | HALOGEN$46.99$44.083 In-Stock
32PA-84340-00-00SOCKET CORD ASSY 1$47.99$39.35Usually ships in 7-10 business days
45VM-84117-00-00NUT$7.49$5.842 In-Stock
598517-05020-00

(replaces part #
98502-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
690387-0501W-00COLLAR$3.50$3.15Usually ships in 7-10 business days
790202-08146-00WASHER, PLATE$11.49$9.42Usually ships in 7-10 business days
892990-05200-00

(replaces part #
92902-05200-00)

WASHER, PLAIN$5.49$4.2810+ In-Stock
95BF-8433E-00-00SCREW, ADJUSTING$8.49$6.6210+ In-Stock
1092990-04600-00

(replaces part #
92902-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
1190501-100A3-00SPRING, COMPRESSION$9.49$7.403 In-Stock
125VM-84334-00-00NUT, ADJUSTING$7.49$5.845 In-Stock
