2012 Yamaha RAPTOR 125 Frame OEM Parts Diagram

Submodel RAPTOR 125 - YFM125RBL - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

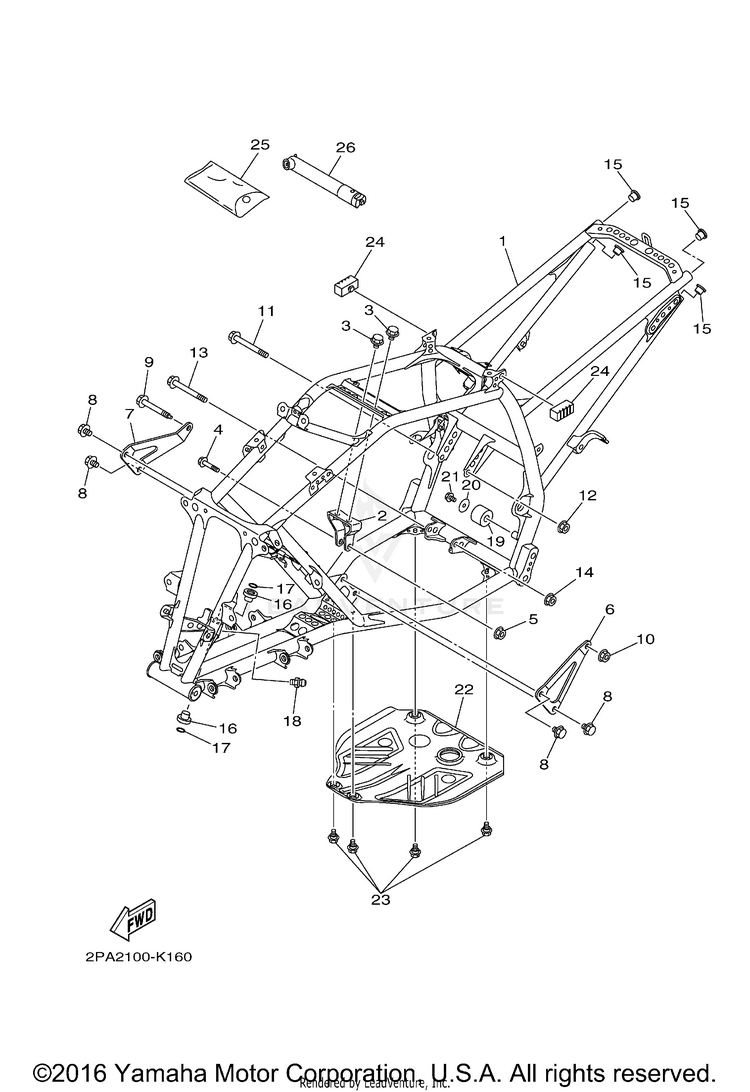

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12PA-21110-09-00

(replaces part #
2PA-21110-00-00)

FRAME COMP.-$1,090.05Usually ships in 7-10 business days
22PA-21315-00-00STAY, ENGINE 2$31.99$24.956 In-Stock
395817-08014-00

(replaces part #
95812-08014-00)

BOLT, FLANGE$2.50$2.1510+ In-Stock
490105-08089-00BOLT, FLANGE$6.49$5.063 In-Stock
595602-08200-00NUT, SELF-LOCKING$3.20$2.7510+ In-Stock
62PA-21316-00-00STAY, ENGINE 3$19.99$15.597 In-Stock
72PA-21317-00-00STAY, ENGINE 3$19.99$15.598 In-Stock
895817-08014-00

(replaces part #
95812-08014-00)

BOLT, FLANGE$2.50$2.1510+ In-Stock
990105-08235-00BOLT, FLANGE$5.49$4.281 In-Stock
1095602-08200-00NUT, SELF-LOCKING$3.20$2.7510+ In-Stock
1190105-08208-00BOLT, FLANGE$3.90$3.353 In-Stock
1295602-08200-00NUT, SELF-LOCKING$3.20$2.7510+ In-Stock
1390105-08208-00BOLT, FLANGE$3.90$3.353 In-Stock
1495602-08200-00NUT, SELF-LOCKING$3.20$2.7510+ In-Stock
1590338-16148-00PLUG$12.49$9.7410+ In-Stock
1690381-15040-00BUSH, SOLID$32.99$25.7310+ In-Stock
1793210-15566-00

(replaces part #
93210-15414-00)

O-RING$8.49$6.6210+ In-Stock
1893700-06M03-00

(replaces part #
93700-06004-00)

NIPPLE, GREASE$8.49$7.6010+ In-Stock
194D3-22178-00-00TENSIONER$12.99$10.1310+ In-Stock
2090201-08054-00WASHER, PLATE$9.49$7.406 In-Stock
2195817-08012-00

(replaces part #
95822-08012-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
224D3-21471-00-00PROTECTOR, ENGINE$38.99$30.41Not Shipping
2390109-06172-00BOLT$3.50$3.5010+ In-Stock
243C3-24741-00-00PAD, SEAT$10.99$8.5710+ In-Stock
252PA-28100-00-00TOOL KIT$25.99$21.31Usually ships in 7-10 business days
261NV-2811A-01-00GAUGE, AIR$62.99$49.133 In-Stock
