2012 Yamaha TTR125LE Camshaft Chain OEM Parts Diagram

Submodel TTR125LE - TTR125LEB - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CAMSHAFT CHAIN

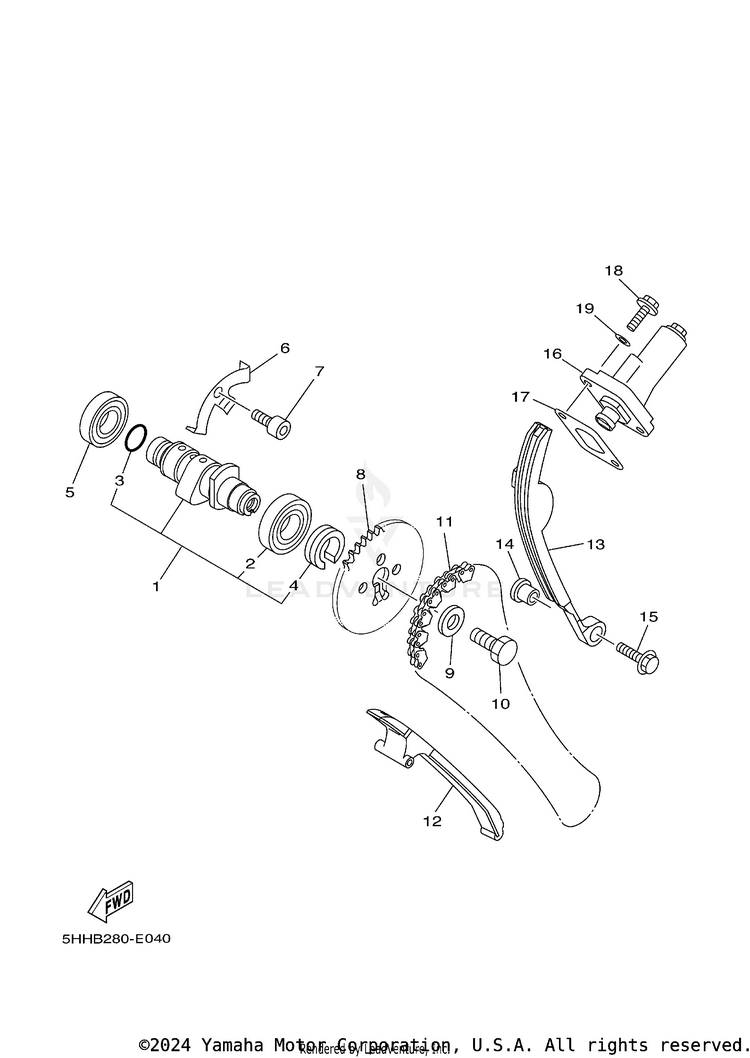

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15HH-E2170-20-00CAMSHAFT ASSY 1$47.99$39.35Usually ships in 7-10 business days
293306-003X0-00BEARING$16.49$13.52Not Shipping
393210-11453-00O-RING$8.49$6.623 In-Stock
490387-16804-00COLLAR$9.49$8.54Usually ships in 7-10 business days
593306-002Y5-00BEARING$12.49$10.24Usually ships in 7-10 business days
65HH-E111F-00-00PLATE$2.25$2.02Usually ships in 7-10 business days
79131M-06012-00BOLT$0.95$0.86Usually ships in 7-10 business days
85VL-E2176-10-00SPROCKET, CAM CHAIN$49.99$38.996 In-Stock
990201-08326-00WASHER, PLATE$9.49$7.4010+ In-Stock
1090101-08590-00

(replaces part #
90101-08W10-00)

BOLT$3.50$3.015 In-Stock
1194582-18090-00CHAIN (DID SCR-0404 SV)-$22.424 In-Stock
125YY-E2231-00-00

(replaces part #
5HH-E2231-10-00)

GUIDE, STOPPER 1$17.99$14.036 In-Stock
135YY-E2241-00-00

(replaces part #
5HH-E2241-10-00)

GUIDE, STOPPER 2$46.99$36.653 In-Stock
145HH-E5598-00-00COLLAR$3.00$2.70Usually ships in 7-10 business days
1595817-06020-00

(replaces part #
9580M-06020-00)

BOLT, FLANGE$3.50$3.0110+ In-Stock
165VL-12210-10-00TENSIONER ASSY, CAM CHAIN$110.99$86.572 In-Stock
175HH-E2213-00-00GASKET, TENSIONER CASE$2.05$1.762 In-Stock
1895817-06016-00

(replaces part #
9502M-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
1990430-06014-00GASKET$8.99$7.0110+ In-Stock
