2012 Yamaha TTR125LE Crankshaft Piston OEM Parts Diagram

Submodel TTR125LE - TTR125LEB - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKSHAFT PISTON

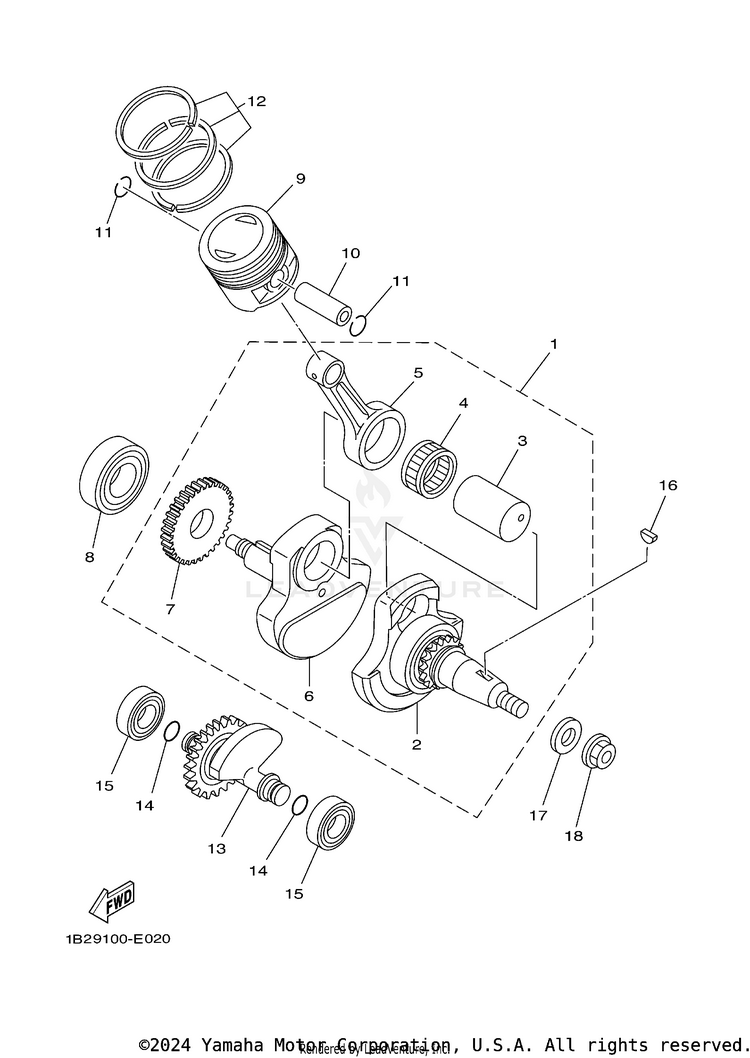

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15HH-E1400-20-00CRANKSHAFT ASSY$309.99$257.50Usually ships in 7-10 business days
25HH-WE141-20-00CRANK SUB ASSY 1$46.99$40.90Not Shipping
34LS-11681-01-00PIN, CRANK 1$70.99$55.371 In-Stock
493310-6290C-00BEARING$88.99$69.411 In-Stock
54LS-11651-02-00ROD, CONNECTING$89.99$70.193 In-Stock
65HH-E1422-10-00CRANK 2$36.99$30.33Usually ships in 7-10 business days
75HH-E1536-00-00GEAR, DRIVE$89.99$70.191 In-Stock
893306-205YW-00BEARING$49.99$38.992 In-Stock
91B2-E1631-00-C0PISTON (STD)$109.99$85.79Usually ships in 7-10 business days
91B2-E1638-09-00

(replaces part #
1B2-E1638-00-00)

PISTON (1.00MM O/S | AP$193.99$151.31Not Shipping
91B2-E1636-09-00

(replaces part #
1B2-E1636-00-00)

PISTON (0.50MM O/S | AP$178.99$139.61Not Shipping
102TK-11633-00-00

(replaces part #
5HH-E1633-00-00)

PIN, PISTON$25.99$20.274 In-Stock
1193450-16068-00CIRCLIP$8.49$6.6210+ In-Stock
124LS-11607-00-00PISTON RING SET (1.00MM O/S) | AP$69.99$54.594 In-Stock
125RM-E1605-00-00PISTON RING SET (0.50MM O/S) | AP$93.99$73.31Usually ships in 7-10 business days
125RM-E1603-00-00PISTON RING SET (STD)$92.99$72.53Usually ships in 7-10 business days
135HH-E1500-03-00

(replaces part #
5HH-E1500-02-00)

BALANCER ASSY$64.99$50.69Usually ships in 7-10 business days
1493210-11001-00O-RING$3.70$3.184 In-Stock
1593306-252YA-00BEARING$14.49$11.88Usually ships in 7-10 business days
1690280-03017-00

(replaces part #
90280-03045-00)

KEY, WOODRUFF$8.49$6.8310+ In-Stock
1790201-120E8-00WASHER, PLATE$8.49$6.624 In-Stock
1890179-12657-00

(replaces part #
90179-12248-00)

NUT$6.49$5.0610+ In-Stock
