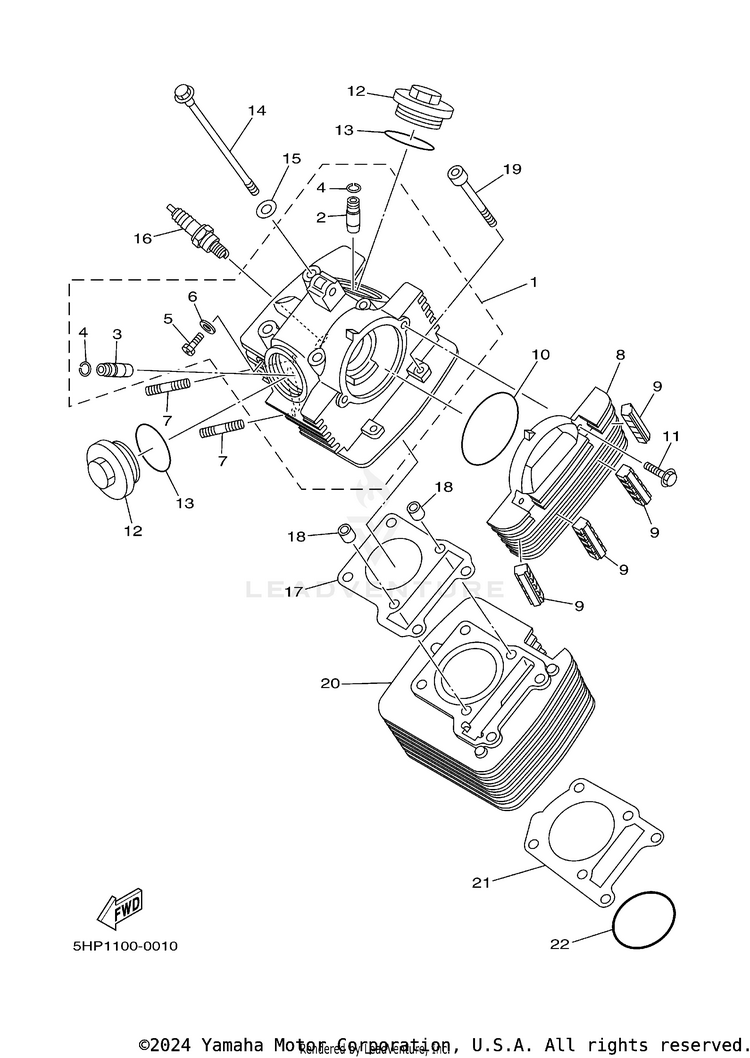

2012 Yamaha TTR125LE Cylinder OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5RR-E1111-10-00	HEAD, CYLINDER 1	$286.99	$223.85	Usually ships in 7-10 business days
2	2UJ-11133-10-00	GUIDE, VALVE 1	$56.99	$44.45	4 In-Stock
3	22F-11134-10-00	GUIDE, VALVE 2	$96.99	$75.65	2 In-Stock
4	93440-10109-00	CIRCLIP	$9.49	$7.40	6 In-Stock
5	90153-06803-00	SCREW, HEXAGON	-	$1.89	1 In-Stock
6	90430-06014-00	GASKET	$8.99	$7.01	10+ In-Stock
7	90116-06503-00	BOLT, STUD	$9.49	$8.30	10+ In-Stock
8	5VL-E1185-40-00 (replaces part # 5VL-E1185-10-00)	COVER, CYLINDER HEAD SIDE 3	$61.99	$48.35	Usually ships in 7-10 business days
9	5HH-E1161-00-00	ABSORBER 1	$1.15	$0.99	10+ In-Stock
10	93210-77363-00 (replaces part # 93210-79200-00)	O-RING	$13.49	$10.52	9 In-Stock
11	98517-06020-00 (replaces part # 9502M-06020-00)	SCREW,PAN HEAD	$2.35	$2.02	10+ In-Stock
12	5HH-E1186-00-00	COVER, CYLINDER HEAD SIDE 2	$10.99	$9.01	Usually ships in 7-10 business days
13	93210-44704-00 (replaces part # 93210-44800-00)	O-RING	$8.49	$7.37	10+ In-Stock
14	90105-08724-00	BOLT, FLANGE	$12.49	$9.74	10+ In-Stock
15	90201-080L7-00 (replaces part # 90201-08609-00)	WASHER, PLATE	$4.05	$3.48	10+ In-Stock
16	CR7-HSA00-00-00 (replaces part # 94700-00834-00)	PLUG, SPARK (NGK CR7HSA)	$4.40	$3.78	10+ In-Stock
17	5HH-E1181-00-00	GASKET, CYLINDER HEAD 1	$7.49	$5.84	5 In-Stock
	AFTERMARKET ALTERNATIVE	$28.95	$15.99	10+ In-Stock
18	99530-10114-00	PIN, DOWEL	$2.65	$2.48	10+ In-Stock
19	90110-06W02-00	BOLT, HEXAGON SOCKET HEAD	$4.65	$4.00	8 In-Stock
20	5HH-E1310-10-C0	CYLINDER	-	$165.73	7 In-Stock
21	5HH-E1351-00-00	GASKET, CYLINDER	$2.00	$1.72	2 In-Stock
	AFTERMARKET ALTERNATIVE	$28.95	$15.99	10+ In-Stock
22	93210-57634-00 (replaces part # 93210-57800-00)	O-RING	$15.49	$12.08	10+ In-Stock
