2012 Yamaha TTR125LE Starter OEM Parts Diagram

Submodel TTR125LE - TTR125LEB - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

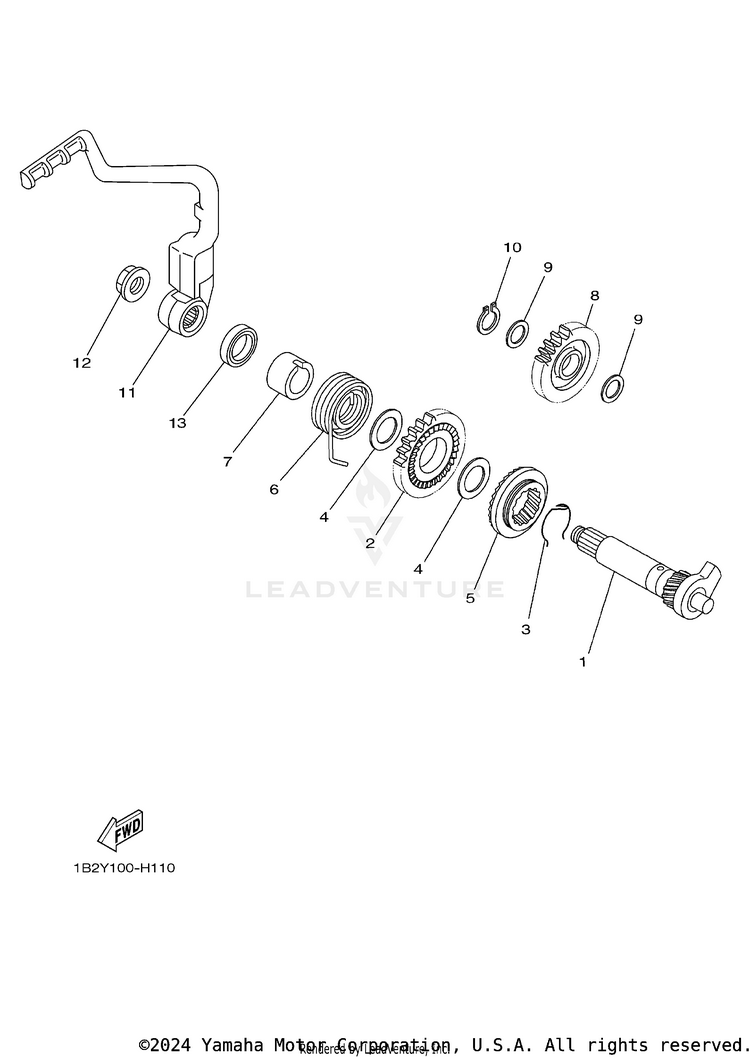

STARTER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15LX-15660-00-00KICK AXLE ASSY$120.99$94.37Usually ships in 7-10 business days
25LX-15641-00-00GEAR, KICK$73.99$57.71Usually ships in 7-10 business days
390468-26048-00CLIP$9.49$7.4010+ In-Stock
490201-202L3-00WASHER, PLATE ( 0.5T)$9.49$8.54Usually ships in 7-10 business days
55YY-E5671-00-00

(replaces part #
5LX-E5671-00-00)

WHEEL,RATCHET$32.99$27.05Usually ships in 7-10 business days
690508-26667-00SPRING, TORSION$11.49$8.9610+ In-Stock
73C1-E5666-00-00

(replaces part #
5LX-E5666-00-00)

SPACER$11.49$9.42Usually ships in 7-10 business days
85LX-15651-00-00GEAR, KICK IDLE$65.99$51.47Usually ships in 7-10 business days
990201-177G4-00WASHER, PLATE$10.49$8.183 In-Stock
1099009-17400-00CIRCLIP$5.49$4.2810+ In-Stock
115HP-15620-10-00KICK CRANK ASSY$254.99$198.892 In-Stock
1290179-12659-00

(replaces part #
90179-12813-00)

NUT$9.49$7.4010+ In-Stock
1393109-20069-00

(replaces part #
93109-20014-00)

OIL SEAL$10.49$8.188 In-Stock
