2012 Yamaha YZ450F Clutch OEM Parts Diagram

Submodel YZ450FB - YZ450FBW - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

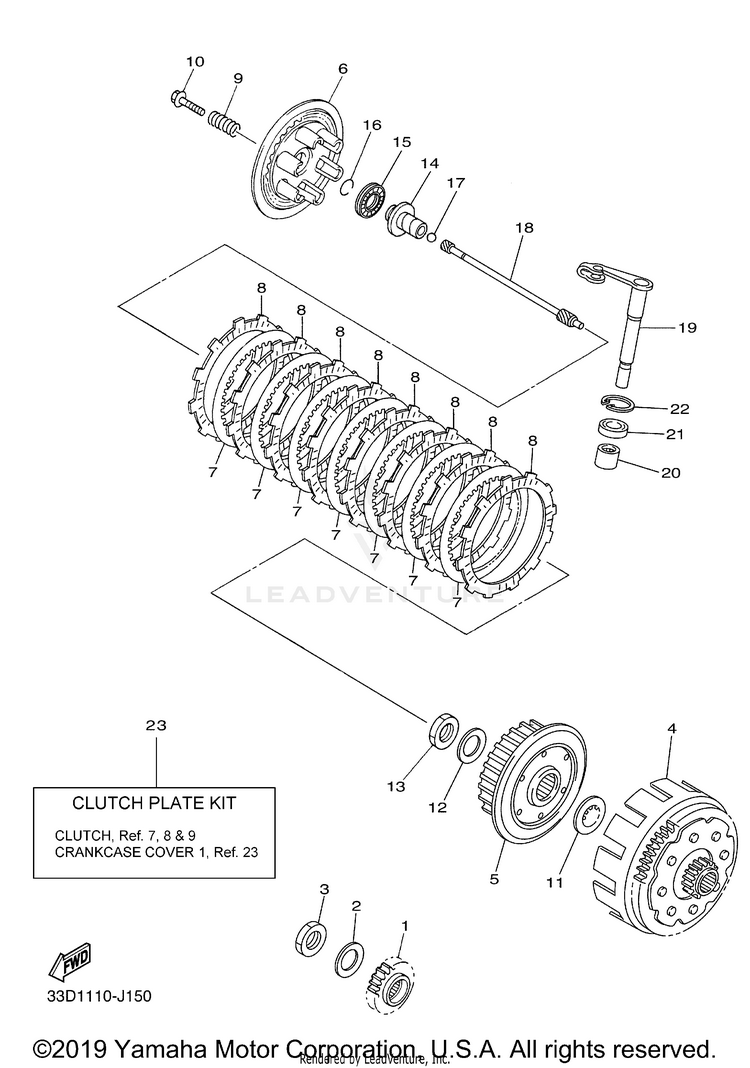

CLUTCH

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S2-16111-60-00GEAR, PRIMARY DRIVE$159.99$124.793 In-Stock
290208-20008-00WASHER, CONICAL SPRING$7.99$6.236 In-Stock
390170-20255-00NUT$11.49$8.9610+ In-Stock
45XD-16150-60-00PRIMARY DRIVEN GEAR COMP.$637.99$497.636 In-Stock
55TA-16371-20-00

(replaces part #
5TA-16371-10-00)

BOSS, CLUTCH$151.99$118.5510+ In-Stock
62S2-16351-01-00

(replaces part #
2S2-16351-00-00)

PLATE, PRESSURE 1$99.99$77.9910+ In-Stock
7BR9-16324-10-00

(replaces part #
4B1-16324-00-00)

PLATE, CLUTCH 1 | INCL. IN CLUTCH PLATE KIT$11.49$8.9610+ In-Stock
85TA-16321-00-00PLATE, FRICTION | INCL. IN CLUTCH PLATE KIT$28.99$22.6110+ In-Stock
990501-230E4-00SPRING, COMPRESSION | INCL. IN CLUTCH PLATE KIT$10.49$8.1810+ In-Stock
1090159-06010-00SCREW, WITH WASHER$8.49$6.6210+ In-Stock
115XD-16154-00-00PLATE, THRUST 1$16.49$12.8610+ In-Stock
1290208-20008-00WASHER, CONICAL SPRING$7.99$6.236 In-Stock
1390170-20255-00NUT$11.49$8.9610+ In-Stock
1433D-16356-00-00ROD, PUSH 1$71.99$56.15Usually ships in 7-10 business days
1593340-21209-00BEARING$18.99$14.819 In-Stock
1693440-10085-00CIRCLIP$9.49$7.4010+ In-Stock
1793511-32027-00BALL$9.49$7.4010+ In-Stock
182S2-16357-01-00

(replaces part #
2S2-16357-00-00)

ROD, PUSH 2$72.99$56.933 In-Stock
1933D-16381-10-00PUSH LEVER COMP.$76.99$60.05Usually ships in 7-10 business days
2093317-11287-00BEARING$25.99$20.2710+ In-Stock
2193102-12224-00OIL SEAL$11.49$8.9610+ In-Stock
AFTERMARKET ALTERNATIVE
$3.99$2.9910+ In-Stock
2299009-20500-00CIRCLIP$1.85$1.599 In-Stock
2333D-W001G-10-00CLUTCH PLATE KIT$182.99$142.731 In-Stock
AFTERMARKET ALTERNATIVE
$90.98$72.9910+ In-Stock
