2012 Yamaha YZ450F Exhaust OEM Parts Diagram

Submodel YZ450FB - YZ450FBW - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

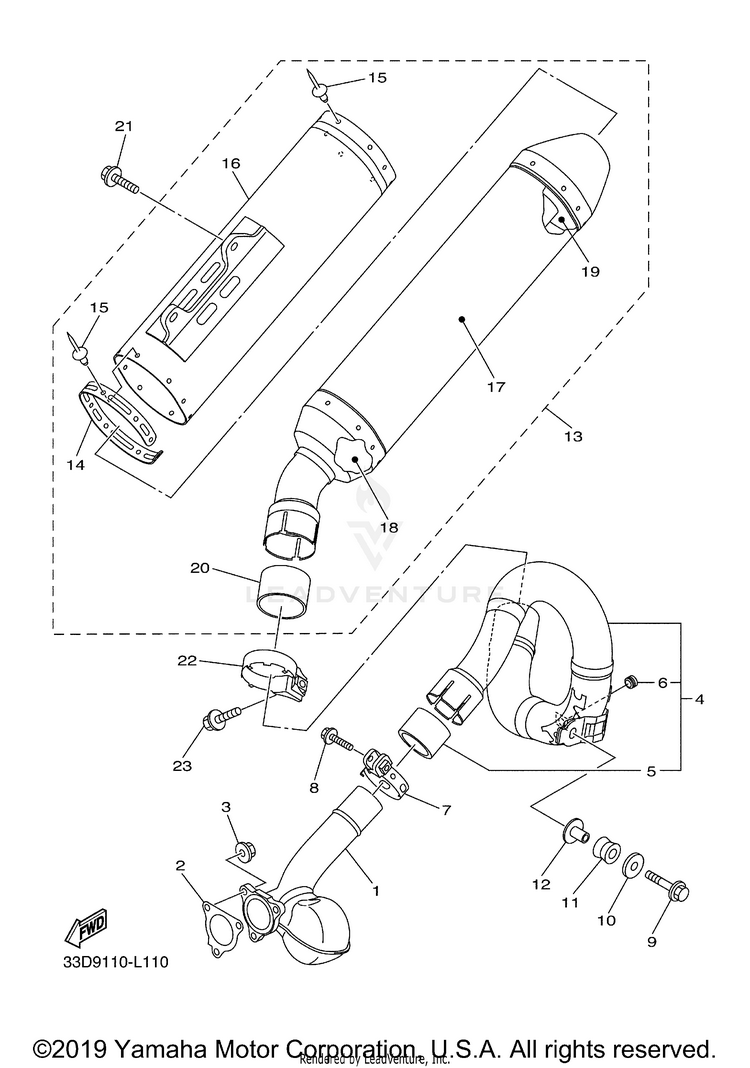

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
133D-14611-00-00PIPE, EXHAUST 1$299.99$249.25Usually ships in 7-10 business days
233D-14613-00-00GASKET, EXHAUST PIPE | INCL. IN TOP END GASKET KIT$8.49$6.6210+ In-Stock
395780-06500-00

(replaces part #
95704-06500-00)

NUT, FLANGE$2.95$2.5410+ In-Stock
433D-14620-01-00

(replaces part #
33D-14620-00-00)

EXHAUST PIPE ASSY 2$540.99$452.80Usually ships in 7-10 business days
55PH-14714-00-00GASKET, MUFFLER$47.99$37.432 In-Stock
62D1-14737-01-00

(replaces part #
2D1-14737-00-00)

DAMPER, MUFFLER$5.49$4.94Usually ships in 7-10 business days
733D-14788-00-00BAND, SILENCER$39.99$32.79Usually ships in 7-10 business days
895024-08035-00BOLT, FLANGE (SMALL HEAD)$9.49$7.4010+ In-Stock
990105-08137-00BOLT, FLANGE$6.49$5.0610+ In-Stock
1090201-08061-00WASHER, PLATE$9.49$7.404 In-Stock
115VY-14747-00-00DAMPER, MUFFLER$15.49$12.0810+ In-Stock
1290387-08081-00COLLAR$9.49$7.408 In-Stock
1333D-14750-10-00SILENCER ASSY$863.99$723.01Usually ships in 7-10 business days
1433D-1476F-10-00REINF. ,3$38.99$31.97Usually ships in 7-10 business days
1590267-48084-00RIVET, BLIND$2.25$2.0610+ In-Stock
1633D-1466G-10-00BODY, SILENCER$289.99$240.58Usually ships in 7-10 business days
172S2-1469A-10-00FIBER$265.99$210.85Usually ships in 7-10 business days
182S2-1469E-00-00FIBER$5.99$5.39Usually ships in 7-10 business days
192S2-1469F-00-00FIBER$10.99$9.01Usually ships in 7-10 business days
208GL-14714-00-00GASKET, MUFFLER$43.99$34.313 In-Stock
2190119-08133-00BOLT, WITH WASHER$4.80$4.134 In-Stock
228GL-14789-00-00BAND, SILENCER$32.99$25.735 In-Stock
2395024-08025-00BOLT, FLANGE$9.49$7.404 In-Stock
