2012 Yamaha YZ450F Shift Shaft OEM Parts Diagram

Submodel YZ450FB - YZ450FBW - 2012

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT SHAFT

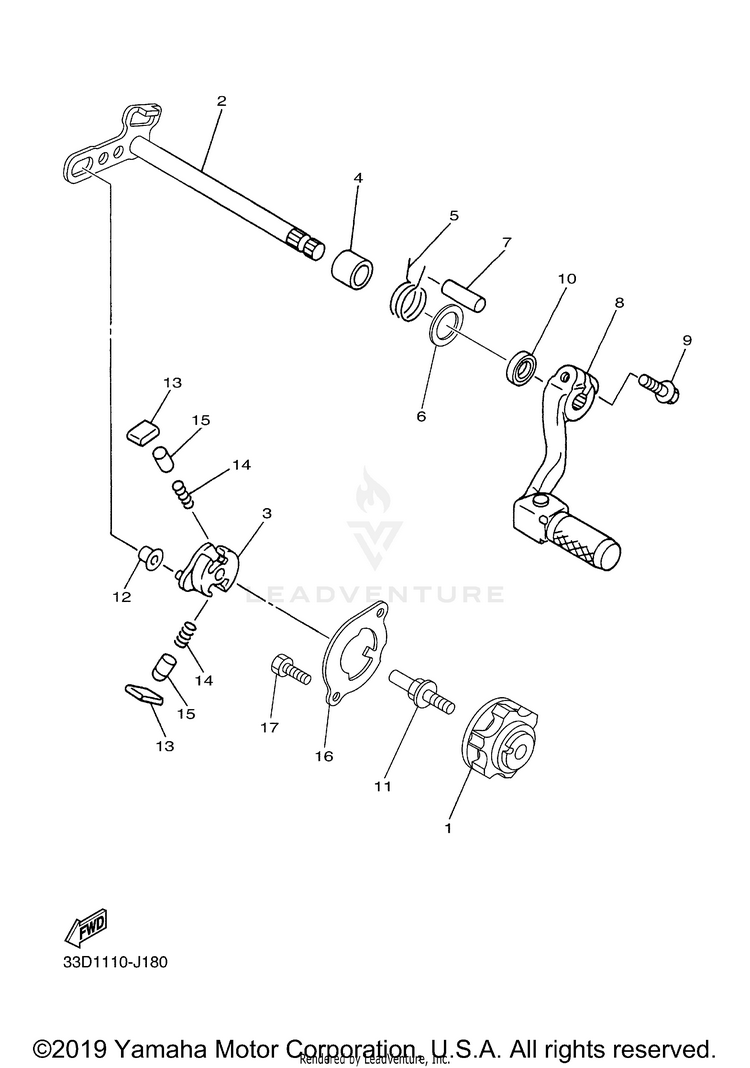

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11C3-18185-00-00SEGMENT$72.99$56.935 In-Stock
233D-18101-00-00SHIFT SHAFT ASSY$100.99$78.771 In-Stock
318P-18122-00-00LEVER, SHIFT 2$153.99$120.11Usually ships in 7-10 business days
490387-12033-00

(replaces part #
90387-124F4-00)

COLLAR$8.49$6.627 In-Stock
590508-29021-00SPRING, TORSION$10.49$8.601 In-Stock
690201-127E1-00WASHER, PLATE$4.65$4.009 In-Stock
793608-33002-00PIN, DOWEL$17.49$13.649 In-Stock
82S2-18110-00-00SHIFT PEDAL ASSY$105.99$82.671 In-Stock
990105-06127-00BOLT, FLANGE$9.49$7.407 In-Stock
1093102-12224-00OIL SEAL$11.49$8.9610+ In-Stock
AFTERMARKET ALTERNATIVE
$3.99$2.9910+ In-Stock
113XJ-18173-10-00PIN, SHIFT$21.99$17.155 In-Stock
123XJ-18178-00-00ROLLER, SHIFT LEVER$14.49$11.3010+ In-Stock
133XJ-18182-00-00PAWL, SHIFTER$16.49$12.8610+ In-Stock
1490501-052G5-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
153XJ-18184-00-00PIN, PAWL$16.49$12.8610+ In-Stock
165TJ-18172-00-00GUIDE, SHIFT$17.49$14.34Usually ships in 7-10 business days
1790101-06042-00

(replaces part #
90101-06041-00)

BOLT$6.49$5.0610+ In-Stock
